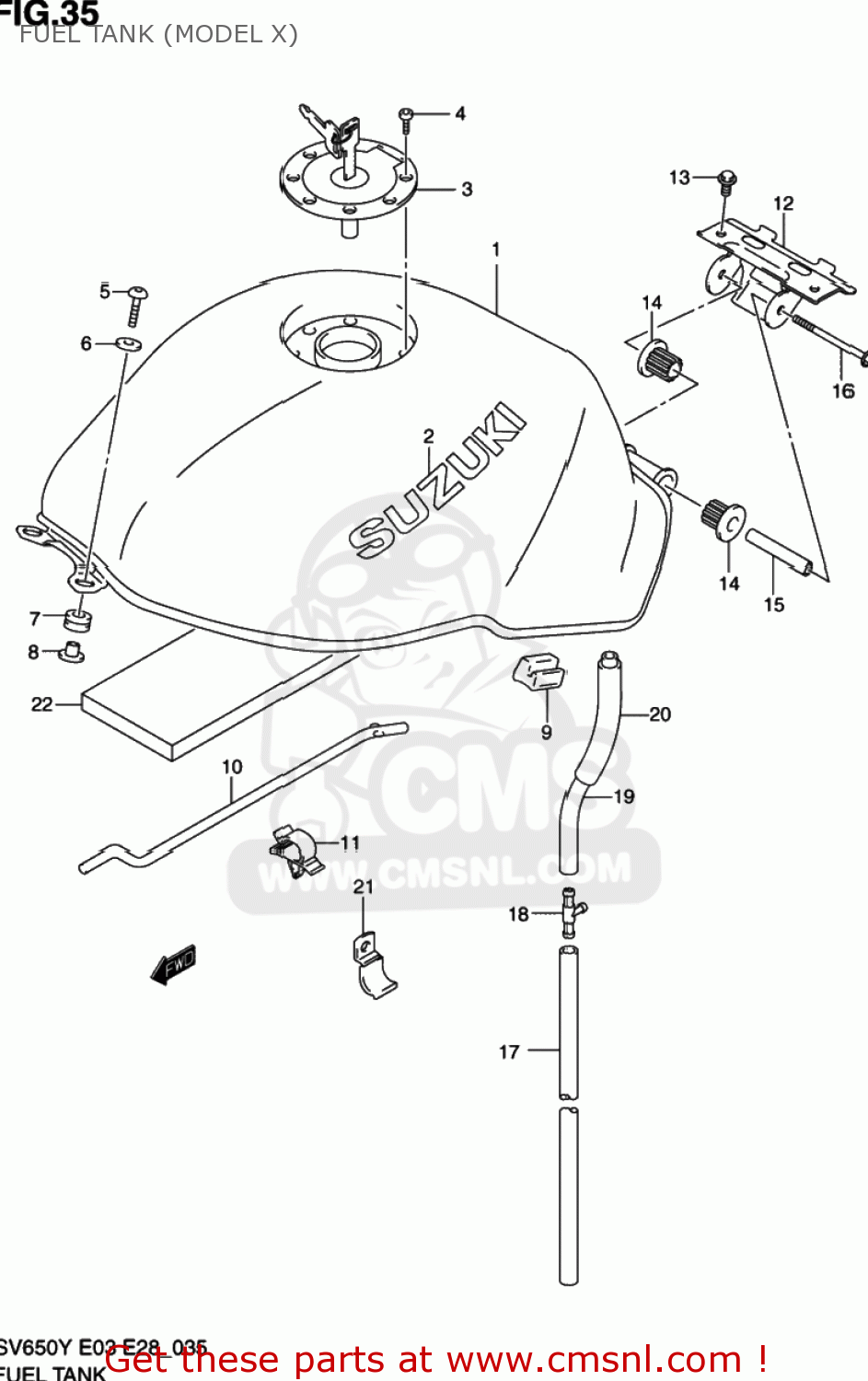

FUEL TANK (MODEL X)

ref

part #

description

quantity

1-1

4410019F00Y7E
ref: 1-1

TANK ASSY,FUEL(BLUE)

€ 600.50

1-2

4410019F00Y7M
ref: 1-2

TANK ASSY,FUEL(RED)

€ 600.50

1-3

4410019F00Y9F
ref: 1-3

TANK ASSY,FUEL

€ 715.00

1-4

4410019F20Y7E
ref: 1-4

TANK ASSY,FUEL(BLUE)

€ 0.00

1-5

4410019F20Y7M
ref: 1-5

TANK ASSEMBLY,FUEL

€ 0.00

2-1

6811142E0020G
ref: 2-1
68111-42E20-20G

EMBLEM,FUEL TANK

€ 18.50

2-2

6811142E001ZY
ref: 2-2
68111-42E20-1ZY

EMBLEM,FUEL TANK

€ 18.50

3-1

4420033870
ref: 3-1

CAP SET,FUEL TANK

€ 253.50

3-2

4420033890
ref: 3-2

CAP ASSY,FUEL TANK FILLER

€ 0.00

4

0910605017
ref: 4

BOLT(5X20)

€ 3.00

5

0913906029
ref: 5

SCREW(6X25)

€ 5.00

6

0916006054
ref: 6

WASHER(6.5X22X1.6)

€ 2.00

7

4451119F00
ref: 7

CUSHION,FUEL TANK FR

€ 19.00

8

4451219F00
ref: 8

SPACER,FUEL TANK FR

€ 9.00

9

4455919F00
ref: 9

CUSHION,FUEL TANK SIDE

€ 15.50

10

4457433E01
ref: 10

STAY,FUEL TANK

€ 13.50

11

0940305310
ref: 11

CLAMP

€ 4.50

12

4455019F10
ref: 12

BRACKET,FUEL TANK RR

€ 62.00

13

0155008163
ref: 13
01550-0816A

BOLT

€ 3.00

14

4454102F00
ref: 14

CUSHION,FUEL TANK RR

€ 27.50

15

4456119F00
ref: 15

SPACER,FUEL TANK RR

€ 10.00

16

0155008853
ref: 16
01550-0885B

BOLT

€ 3.50

17

0935270103600
ref: 17

HOSE(7X10.2X600)

€ 8.00

18

0936708004
ref: 18

3-WAY [FILTER TO PUMP)

€ 4.50

19

0935270103600
ref: 19

HOSE(7X10.2X600)

€ 8.00

20

0935114152600
ref: 20

PROTECTOR(14.5X15.5X600)

€ 9.00

21

4433919F00
ref: 21

CLAMP,DRAIN HOSE

€ 3.50

22

4419419F00
ref: 22

SHIELD,FUEL TANK FR

€ 38.50

all assemblies
