FRAME (MODEL K2)
SV650S 2001 (K1) USA (E03)

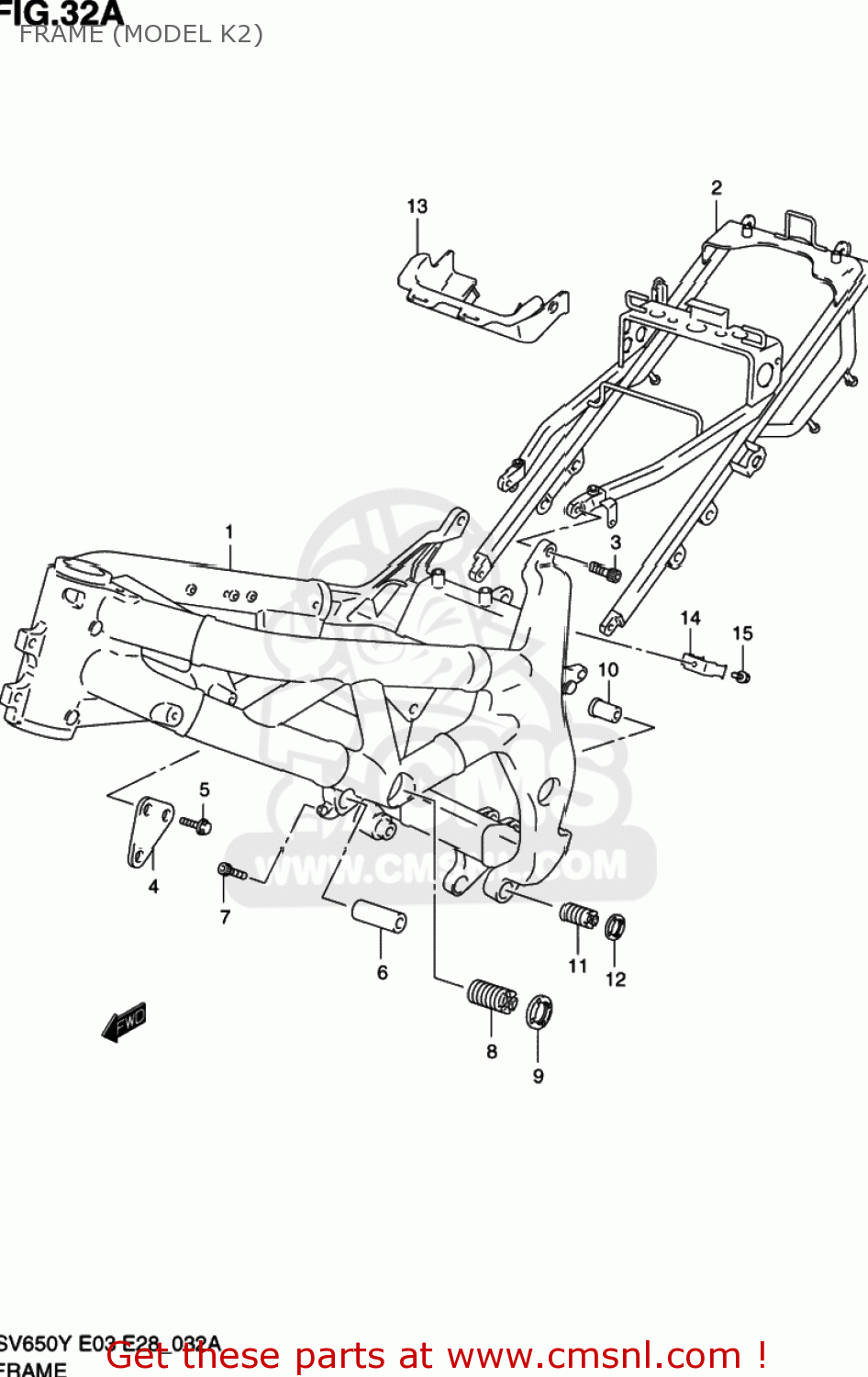

Frame (model k2) diagram SV650S 2001 (K1) USA (E03)
FRAME (MODEL K2) SV650S 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4110019F50YD8
ref: 1
FRAME(SILVER)
€ 1,649.50
2
4120019F10
ref: 2
RAIL,SEAT
€ 573.50
3
0713010303
ref: 3
07130-1030B
BOLT
€ 3.50
4
4199119F00
ref: 4
PLATE,ENG HEAD MTG FR,R
€ 6.50
5
0155008203
ref: 5
01550-0820A
BOLT
€ 3.00
6
4119819F00
ref: 6
SPACER,ENG HEAD MTG
€ 17.50
7
0713008307
ref: 7
BOLT
€ 4.50
8
4192119F00
ref: 8
BOLT,CRANK CASE ADJUST
€ 40.00
9
4192219F00
ref: 9
41922-19F20
NUT,CRANKCASE ADJUST
€ 12.00
10
4194119F01
ref: 10
SPACER,MOUNTING RR UPR,R
€ 25.00
11
4192133E11
ref: 11
BOLT,CRANKCASE ADJUST
€ 46.00
12
4192233E00
ref: 12
NUT,CRANK CASE ADJUST BOLT
€ 18.50
13
4741119F01
ref: 13
HOLDER,ELECTRIC PARTS
€ 15.50
14
4741319F00
ref: 14
PLATE,RELAY FITTING
€ 5.50
15
0155006123
ref: 15
01550-0612A
BOLT
€ 2.50
