WATER PUMP (MODEL K1/K2)

SV650S 2001 (K1) USA (E03)

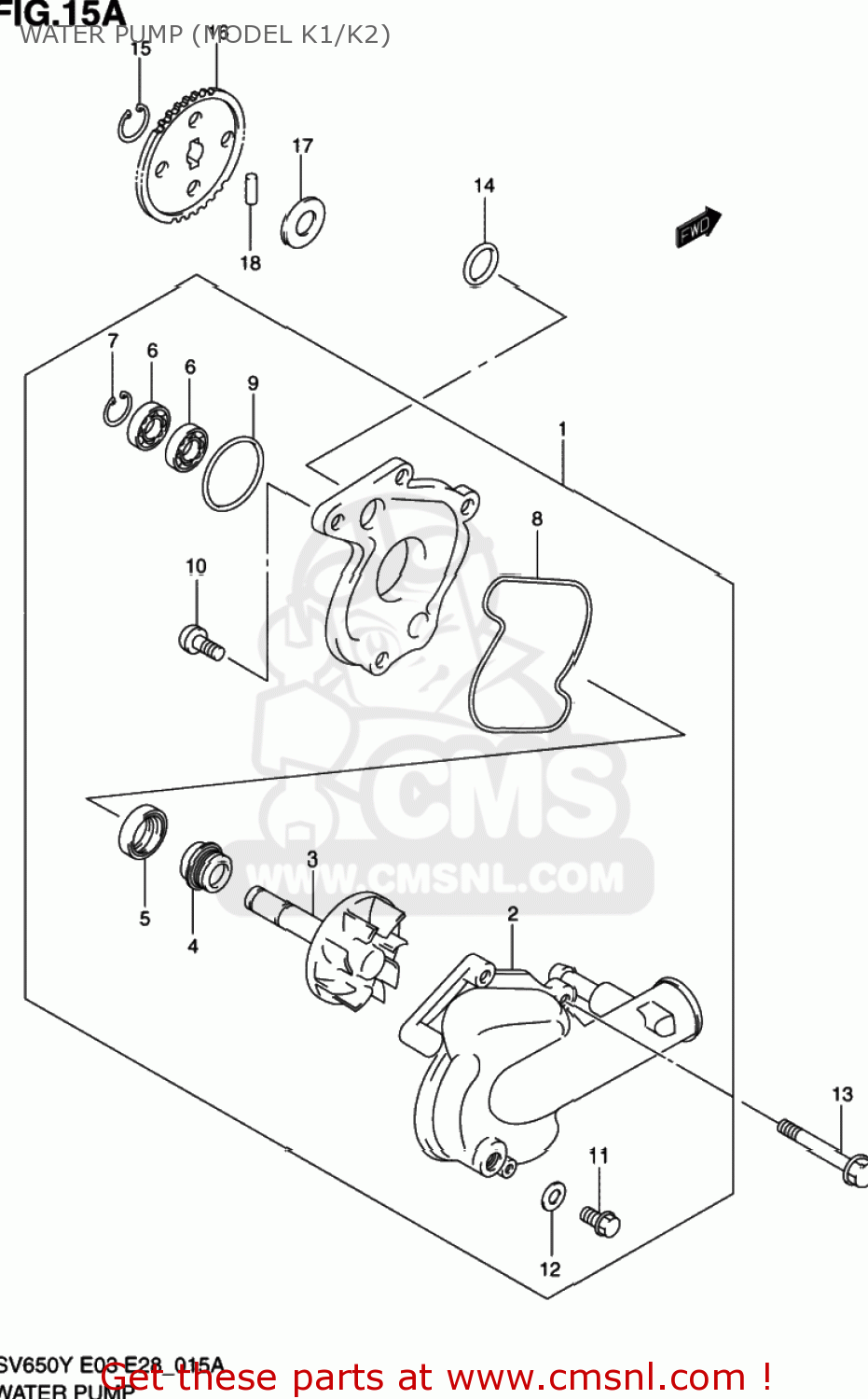

Water pump (model k1/k2) diagram SV650S 2001 (K1) USA (E03)

WATER PUMP (MODEL K1/K2) SV650S 2001 (K1) USA (E03)
WATER PUMP (MODEL K1/K2) SV650S 2001 (K1) USA (E03)
WATER PUMP (MODEL K1/K2) SV650S 2001 (K1) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
1740019F10
ref: 1-1
17400-19F60
PUMP ASSEMBLY,WATER
€ 304.00
1-2
1740019F11
ref: 1-2
17400-19F60
WATERPOMP SET
€ 304.00
2-1
1741119F00
ref: 2-1
CASE,WATER PUMP
1741119F00
€ 92.50
2-2
1741119F11
ref: 2-2
CASE,WATER PUMP
€ 81.50
3
1749119F10
ref: 3
IMPELLER/SHAFT
€ 46.00
4
1747002F10
ref: 4
SEAL,MECHANICAL
1747002F10
€ 21.50
5
0928310004
ref: 5
SEAL,OIL(10X21X5)
0928310004
€ 4.50
6
0811069000
ref: 6
BEARING
0811069000
€ 18.50
7
0833211086
ref: 7
08332-1108A
E RING
0833211086
€ 2.00
8
1741819F00
ref: 8
O RING
1741819F00
€ 6.00
9
1743533400
ref: 9
O RING,WATER PUMP HOLDER
1743533400
€ 13.00
10
0211206163
ref: 10
02112-0616A
SCREW 6X16
0211206163
€ 2.00
11
1741514300
ref: 11
BOLT,DRAIN
1741514300
€ 2.00
12
0916808008
ref: 12
09168-08016
GASKET 8.2X14X1 (NAS)
0916808008
€ 1.00
13
0910306206
ref: 13
BOLT(6X50)
0910306206
€ 7.00
14
0928022001
ref: 14
O RING(D:2.4,ID:21.8)
0928022001
€ 2.00
15
0833131106
ref: 15
08331-3110A
CIRCLIP,10MM
0833131106
€ 2.00
16
1746119F00
ref: 16
GEAR,WATER PUMP DRIVEN
1746119F00
€ 37.50
17
0918110158
ref: 17
SHIM(10X18X0.5)
0918110158
€ 2.50
18
0926104002
ref: 18
ROLLER(4X13.8)
0926104002
€ 1.50
