HANDLE BAR (SV650X/Y/K1/K2)

SV650S 2001 (K1) USA (E03)

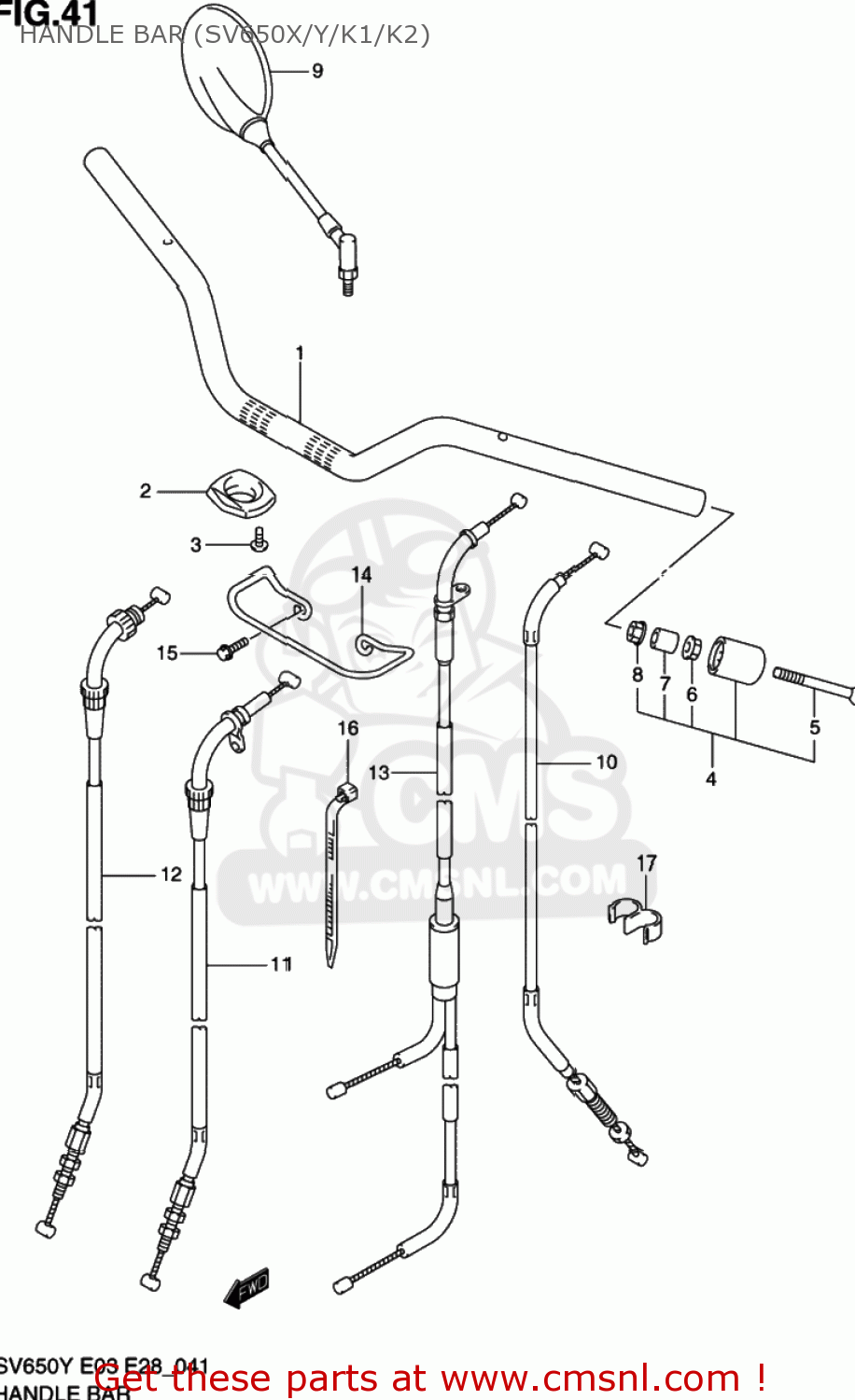

Handle bar (sv650x/y/k1/k2) diagram SV650S 2001 (K1) USA (E03)

HANDLE BAR (SV650X/Y/K1/K2) SV650S 2001 (K1) USA (E03)
HANDLE BAR (SV650X/Y/K1/K2) SV650S 2001 (K1) USA (E03)
HANDLE BAR (SV650X/Y/K1/K2) SV650S 2001 (K1) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
5611119F20
ref: 1-1
HANDLEBAR
€ 160.50
1-2
5611119F30
ref: 1-2
HANDLEBAR
5611119F30
€ 143.50
2
5617019F00
ref: 2
COVER,IGNITION SWITCH
€ 14.50
3
0214204123
ref: 3
02142-0412A
SCREW
€ 1.50
4
5620032821
ref: 4
56200-32822
BALANCER SET,HANDLEBAR
5620032821
€ 21.00
5
0212206803
ref: 5
02122-0680B
SCREW
0212206803
€ 2.50
6
0831610083
ref: 6
08316-1008B
NUT
0831610083
€ 3.00
7
5627244500
ref: 7
EXPANDER,HANDLE BALANCER
5627244500
€ 3.00
8
0915906024
ref: 8
NUT
0915906024
€ 2.00
9
5650009020
ref: 9
56500-09090
MIRROR ASSEMBLY,RIGHT
5650009020
€ 344.50
10
5820020F00
ref: 10
CABLE ASSY,CLUTCH
5820020F00
€ 27.00
11
5830020F20
ref: 11
CABLE ASSY,THROTTLE NO.1
5830020F20
€ 40.00
12-1
5830020F30
ref: 12-1
CABLE ASSY,THROTTLE NO.2
5830020F30
€ 33.50
12-2
5830020F50
ref: 12-2
CABLE ASSY,THROTTLE NO.2
5830020F50
€ 25.50
13
5841020F00
ref: 13
CABLE,STARTER
5841020F00
€ 57.00
14-1
5862119F00
ref: 14-1
GUIDE,CABLE
€ 8.00
14-2
5862119F10
ref: 14-2
GUIDE,CABLE
€ 9.50
14-3
5862119F20
ref: 14-3
GUIDE,CABLE
5862119F20
€ 10.00
15
0155006123
ref: 15
01550-0612A
BOLT
0155006123
€ 2.50
16
0940714407
ref: 16
CLAMP(L:145)
0940714407
€ 4.00
17
0940800033
ref: 17
CLAMP
€ 2.50
