FRONT MASTER CYLINDER (SV650SX/SY/SK1/SK2)

SV650S 2001 (K1) USA (E03)

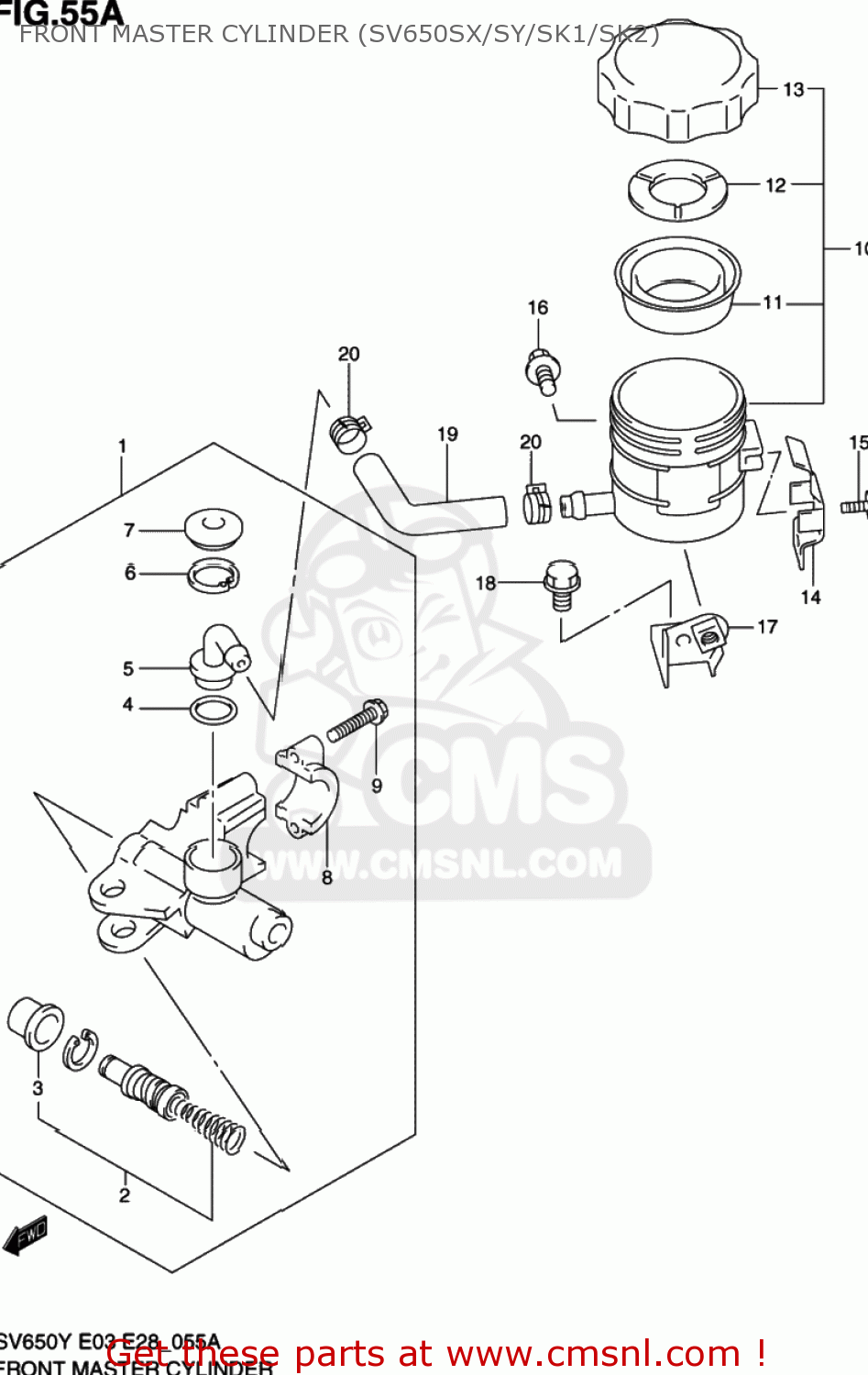

Front master cylinder (sv650sx/sy/sk1/sk2) diagram SV650S 2001 (K1) USA (E03)

FRONT MASTER CYLINDER (SV650SX/SY/SK1/SK2) SV650S 2001 (K1) USA (E03)
FRONT MASTER CYLINDER (SV650SX/SY/SK1/SK2) SV650S 2001 (K1) USA (E03)
FRONT MASTER CYLINDER (SV650SX/SY/SK1/SK2) SV650S 2001 (K1) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
5960032C01
ref: 1
CYLINDER ASSY,FR MASTER
5960032C01
€ 263.00
2
5960045860
ref: 2
PISTON & CUP SET
5960045860
€ 44.00
3
5966644300
ref: 3
BOOT
5966644300
€ 6.00
4
6968634200
ref: 4
O RING
6968634200
€ 3.50
5
5967217C00
ref: 5
CONNECTOR
5967217C00
€ 8.00
6
6967400B20
ref: 6
CIRCLIP
6967400B20
€ 3.00
7
5967317C00
ref: 7
COVER,DUST
5967317C00
€ 7.00
8
5967136500
ref: 8
HOLDER
5967136500
€ 10.00
9
5967519C00
ref: 9
BOLT(6X25)
5967519C00
€ 3.00
10
5974007D00
ref: 10
TANK ASSY,RESERVOIR
5974007D00
€ 67.00
11
5966718441
ref: 11
DIAPHRAGM
5966718441
€ 8.50
12
5966818441
ref: 12
PLATE,DIAPHRAGM
5966818441
€ 3.50
13
5966907D00
ref: 13
CAP
5966907D00
€ 16.50
14
5974317C00
ref: 14
PLATE,RESERVOIR TANK CAP
5974317C00
€ 8.00
15
0214204103
ref: 15
02142-0410A
SCREW
0214204103
€ 1.50
16
0155006123
ref: 16
01550-0612A
BOLT
0155006123
€ 2.50
17
5975033E01
ref: 17
BRACKET,RESERVOIR TANK
5975033E01
€ 8.50
18
0155006123
ref: 18
01550-0612A
BOLT
0155006123
€ 2.50
19
5973132C00
ref: 19
HOSE,FR RESERVOIR TANK
5973132C00
€ 18.00
20
5973517C00
ref: 20
CLAMP,RESERVOIR TANK FR
5973517C00
€ 4.00
