STEERING STEM (SV650K1 E3)
SV650S 2001 (K1) USA (E03)

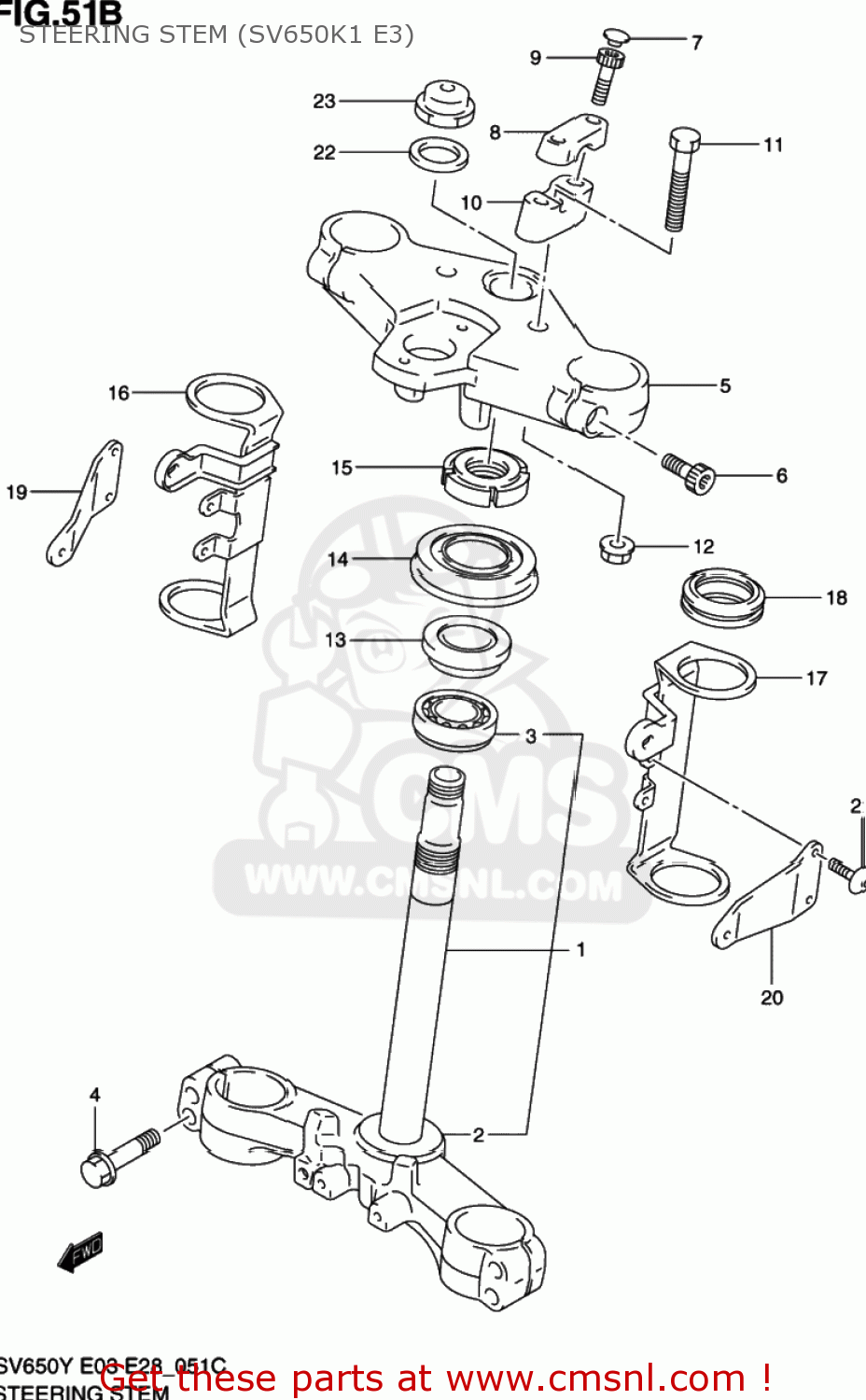

Steering stem (sv650k1 e3) diagram SV650S 2001 (K1) USA (E03)
STEERING STEM (SV650K1 E3) SV650S 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5141020F40
ref: 1
STEM,STEERING
€ 384.50
2
5164412C00
ref: 2
SEAL,STEERING LWR
€ 5.50
3
0926730010
ref: 3
BEARING(30X55X17)
€ 46.50
4
0155008407
ref: 4
BOLT
€ 3.50
5
5131119F10
ref: 5
HEAD,STEERING STEM
€ 408.50
6
5132803FA0
ref: 6
BOLT(8X32)
€ 3.00
7
0925006011
ref: 7
CAP(OD:11)
€ 2.50
8
5621142F00
ref: 8
56211-31F00-0FP
HOLDER,HANDLE
€ 21.00
9
0713008307
ref: 9
BOLT
€ 4.50
10
5622103FA0
ref: 10
HOLDER,HANDLE LWR
€ 77.50
11
5132103FA0
ref: 11
BOLT,LWR HOLDER(10X45)
€ 6.00
12
0831931107
ref: 12
NUT
€ 3.00
13
0926725009
ref: 13
BEARING(25X47X15)
€ 40.00
14
0928534009
ref: 14
SEAL,OIL(34X69X11.9)
€ 16.50
15
5163131F00
ref: 15
NUT,STEERING STEM
€ 8.00
16
5153019F10
ref: 16
BRACKET,HEADLAMP HOUSING,R
€ 47.00
17
5154019F10
ref: 17
BRACKET,HEADLAMP HOUSING,L
€ 45.50
18
5155338C00
ref: 18
DAMPER,HEADLAMP HSG BRACKET
€ 8.50
19
5185119F00
ref: 19
STAY,HEADLAMP HOUSING,R
€ 58.50
20
5186119F00
ref: 20
STAY,HEADLAMP HOUSING,L
€ 56.00
21
0913906027
ref: 21
SCREW(6X12)
€ 3.00
22
5135610D03
ref: 22
WASHER(22.5X35.9X1.6)
€ 3.00
23
5135328A10
ref: 23
NUT
€ 30.00
