prices are in EUR
ref
part #
description
quantity
1-1

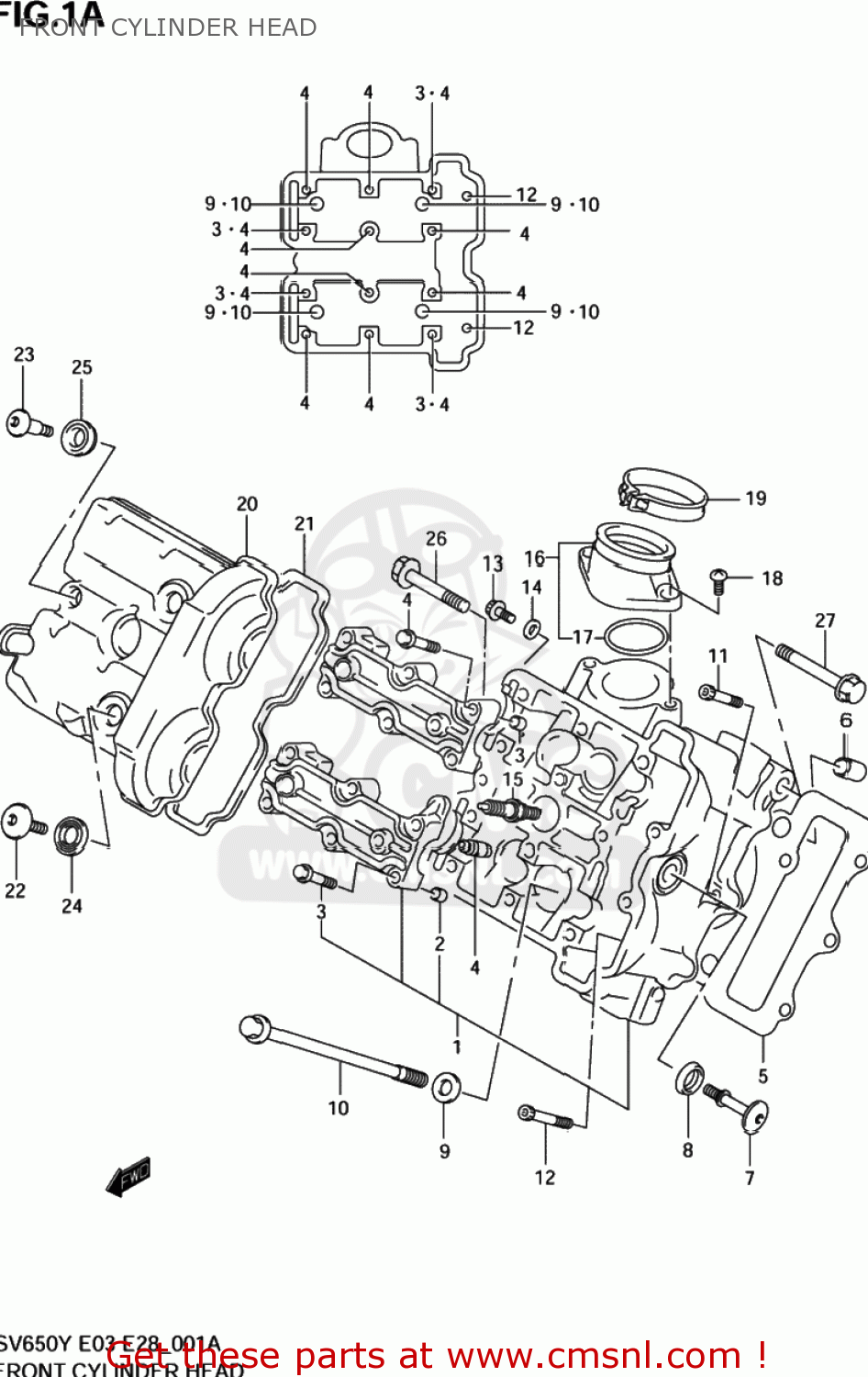

HEAD ASSEMBLY,CYLINDER,FRONT
1-3
HEAD ASSY, CYLINDER FRONT
1-4
HEAD ASSEMBLY,CYLINDER,FRONT
1-5
HEAD ASSY,CYLINDER FR
1-6
HEAD ASSY,CYLINDER FR
2
PIN(6.2X8X11)
3
BOLT(6X39)
4
GUIDE,VALVE
5
GASKET,CYLINDER HEAD (NAS)
6
PIN
7
BOLT,CYL HEAD SIDE FACE
8
WASHER,HEAD COVER
9
WASHER(10.5X19X2)
10
BOLT(10X160)
11
BOLT
12
BOLT(6X70)
14
GASKET(5.8X13X1.2) (NAS)
15-1
PLUG,SPARK(CR8E)
15-2
PLUG,SPARK(U24ESR-N)
15-3
PLUG,SPARK(NGK CR9E)
15-4
PLUG,SPARK(U27ESR-N)
15-5
PLUG,SPARK(CR10E)
15-6
PLUG,SPARK(U31ESR-N)
15-7
PLUG,SPARK(CR7E)
15-8
PLUG,SPARK(U22ESR-N)
16
PIPE ASSY,INTAKE FR
17
O RING(D:2.4,ID:47X42)
18
SCREW ,6X16
19
CLAMP
20-1
COVER,CYLINDER HEAD FR
20-2
COVER,CYLINDER HEAD FR
21
GASKET,CYLINDER HEAD COVER (NAS)
22
BOLT(7X17.5)
23
BOLT(7X31)
24
WASHER(10.6X25.5X2.3)
25
CUSHION,HEAD COVER BOLT
26
BOLT
27
BOLT
