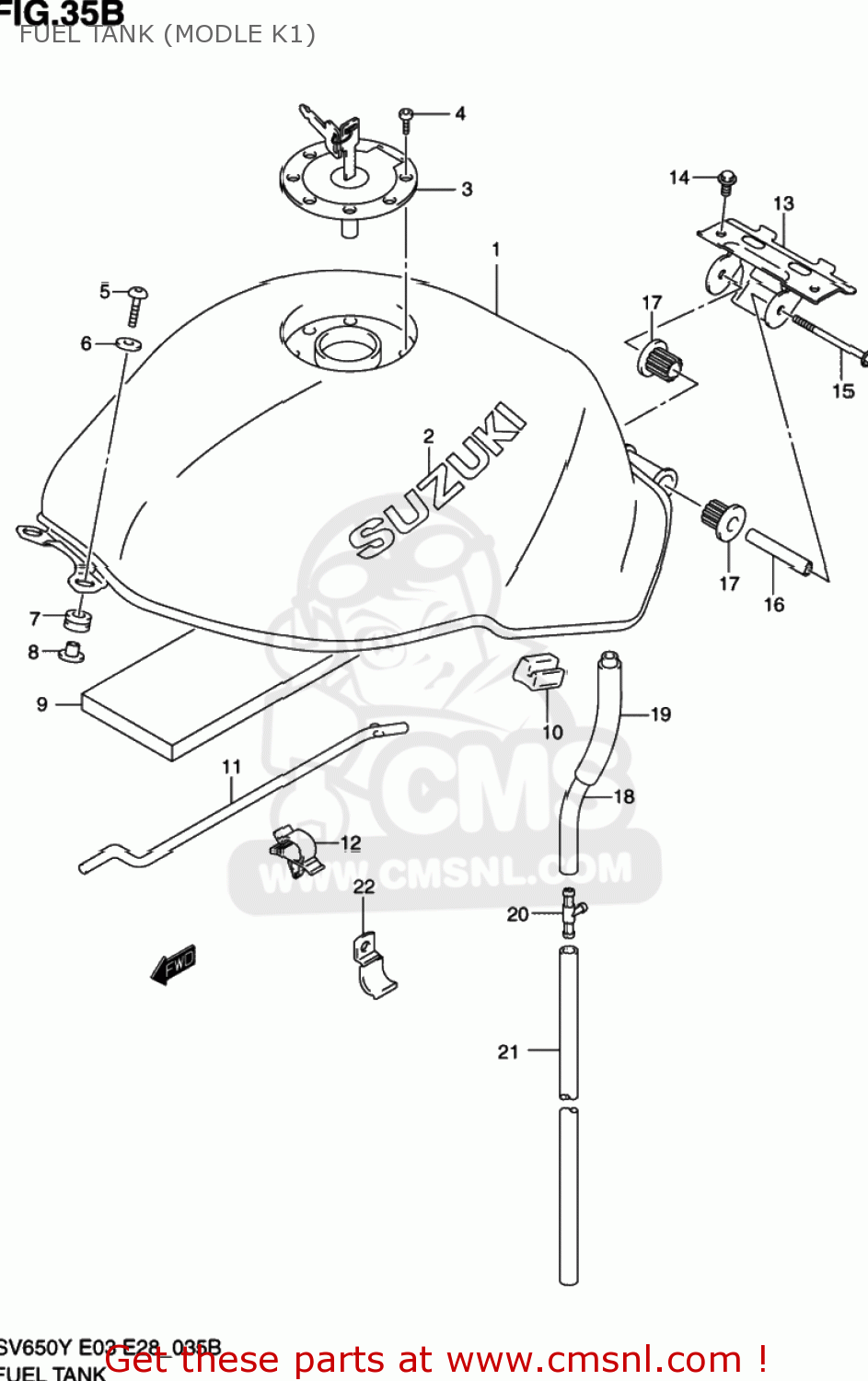

FUEL TANK (MODLE K1)

ref

part #

description

quantity

1-1

4410019F4019A
ref: 1-1
44100-19F60-19A

TANK ASSY,FUEL

€ 600.50

1-2

4410019F40Y7L
ref: 1-2

TANK ASSEMBLY,FUEL

€ 579.00

1-3

4410019F40YC2
ref: 1-3
44100-19F60-YC2

TANK ASSEMBLY,FUEL

€ 600.50

1-4

4410019F5019A
ref: 1-4
44100-19F70-19A

TANK ASSY,FUEL(RED)

€ 364.50

1-5

4410019F50Y7L
ref: 1-5
44100-19F70-Y7L

TANK ASSEMBLY,FUEL

€ 570.00

1-6

4410019F50YC2
ref: 1-6
44100-19F70-YC2

TANK ASSEMBLY,FUEL

€ 364.50

2-1

6811112C00YD8
ref: 2-1
68111-12C30-YD8

EMBLEM,FUEL TA

€ 21.00

2-2

6811112C001ZY
ref: 2-2
68111-12C30-1ZY

EMBLEM,FUEL TANK

€ 12.50

3-1

4420033870
ref: 3-1

CAP SET,FUEL TANK

€ 253.50

3-2

4420033890
ref: 3-2

CAP ASSY,FUEL TANK FILLER

€ 0.00

4

0910605017
ref: 4

BOLT(5X20)

€ 3.00

5

0913906029
ref: 5

SCREW(6X25)

€ 5.00

6

0916006054
ref: 6

WASHER(6.5X22X1.6)

€ 2.00

7

4451119F00
ref: 7

CUSHION,FUEL TANK FR

€ 19.00

8

4451219F00
ref: 8

SPACER,FUEL TANK FR

€ 9.00

9

4419419F00
ref: 9

SHIELD,FUEL TANK FR

€ 38.50

10

4455919F00
ref: 10

CUSHION,FUEL TANK SIDE

€ 15.50

11

4457433E01
ref: 11

STAY,FUEL TANK

€ 13.50

12

0940305310
ref: 12

CLAMP

€ 4.50

13

4455019F10
ref: 13

BRACKET,FUEL TANK RR

€ 62.00

14

0155008163
ref: 14
01550-0816A

BOLT

€ 3.00

15

0155008853
ref: 15
01550-0885B

BOLT

€ 3.50

16

4456119F00
ref: 16

SPACER,FUEL TANK RR

€ 10.00

17

4454102F00
ref: 17

CUSHION,FUEL TANK RR

€ 27.50

18

4442319F00
ref: 18

HOSE,WATER DRAIN NO.1

€ 10.50

19

0935114152600
ref: 19

PROTECTOR(14.5X15.5X600)

€ 9.00

20

0936708004
ref: 20

3-WAY [FILTER TO PUMP)

€ 4.50

21

0935270103600
ref: 21

HOSE(7X10.2X600)

€ 8.00

22

4433919F00
ref: 22

CLAMP,DRAIN HOSE

€ 3.50

all assemblies
