CRANKCASE
T500 1968 1969 1970 USA (E03)

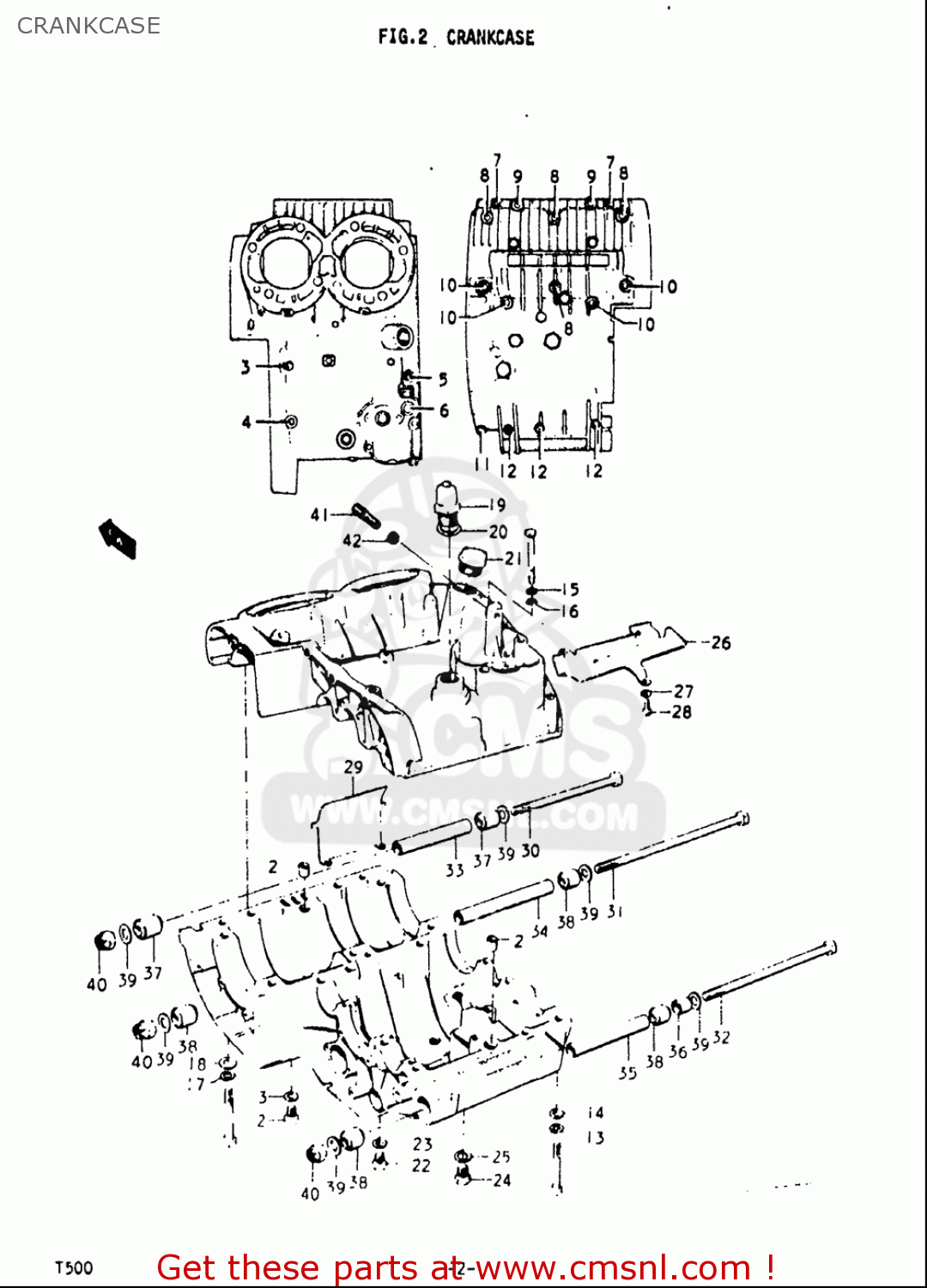

Crankcase diagram T500 1968 1969 1970 USA (E03)
CRANKCASE T500 1968 1969 1970 USA (E03)
×
prices are in EUR
ref
part #
description
quantity
2
0421113189
ref: 2
PIN
€ 2.50
3
0910006062
ref: 3
BOLT(6X70)
€ 3.50
4
0150008903
ref: 4
BOLT
€ 3.50
5
0110706958
ref: 5
BOLT 6X95 HEXAG
€ 20.00
6
0150008703
ref: 6
BOLT
€ 2.50
7
0150008603
ref: 7
BOLT
€ 2.50
8
0150010803
ref: 8
BOLT
€ 3.50
9
0150010653
ref: 9
BOLT
€ 4.00
11
0150008653
ref: 11
BOLT
€ 3.00
12
0150008753
ref: 12
BOLT
€ 3.00
13
0832101087
ref: 13
WASHER,LOCK
€ 2.00
14
0832201087
ref: 14
WASHER
€ 2.00
15
0832101057
ref: 15
WASHER,LOCK
€ 2.00
16
0832201067
ref: 16
WASHER
€ 2.00
17
0832101107
ref: 17
WASHER,LOCK
€ 2.00
18
0832201107
ref: 18
WASHER
€ 2.50
20
0916818003
ref: 20
GASKET(18X24.2X2) (NAS)
€ 2.00
21
0920020810
ref: 21
PLUG SET
€ 8.00
22
0924710001
ref: 22
PLUG
€ 3.00
23
0916810002
ref: 23
GASKET(10X14X3.6) (NAS)
€ 2.00
24
0924712104
ref: 24
PLUG,12X9
€ 2.50
25
0916812003
ref: 25
GASKET(12X16X2) (NAS)
€ 2.00
27
0832101057
ref: 27
WASHER,LOCK
€ 2.00
28
0211206127
ref: 28
SCREW
€ 2.00
37
0931912005
ref: 37
BUSHING
€ 7.50
39
0832201127
ref: 39
WASHER
€ 2.00
40
0915912102
ref: 40
NUT
€ 5.00
41
0911908014
ref: 41
BOLT
€ 3.50
42
0831000087
ref: 42
NUT
€ 2.00
