KICK STARTER

T500 1968 1969 1970 USA (E03)

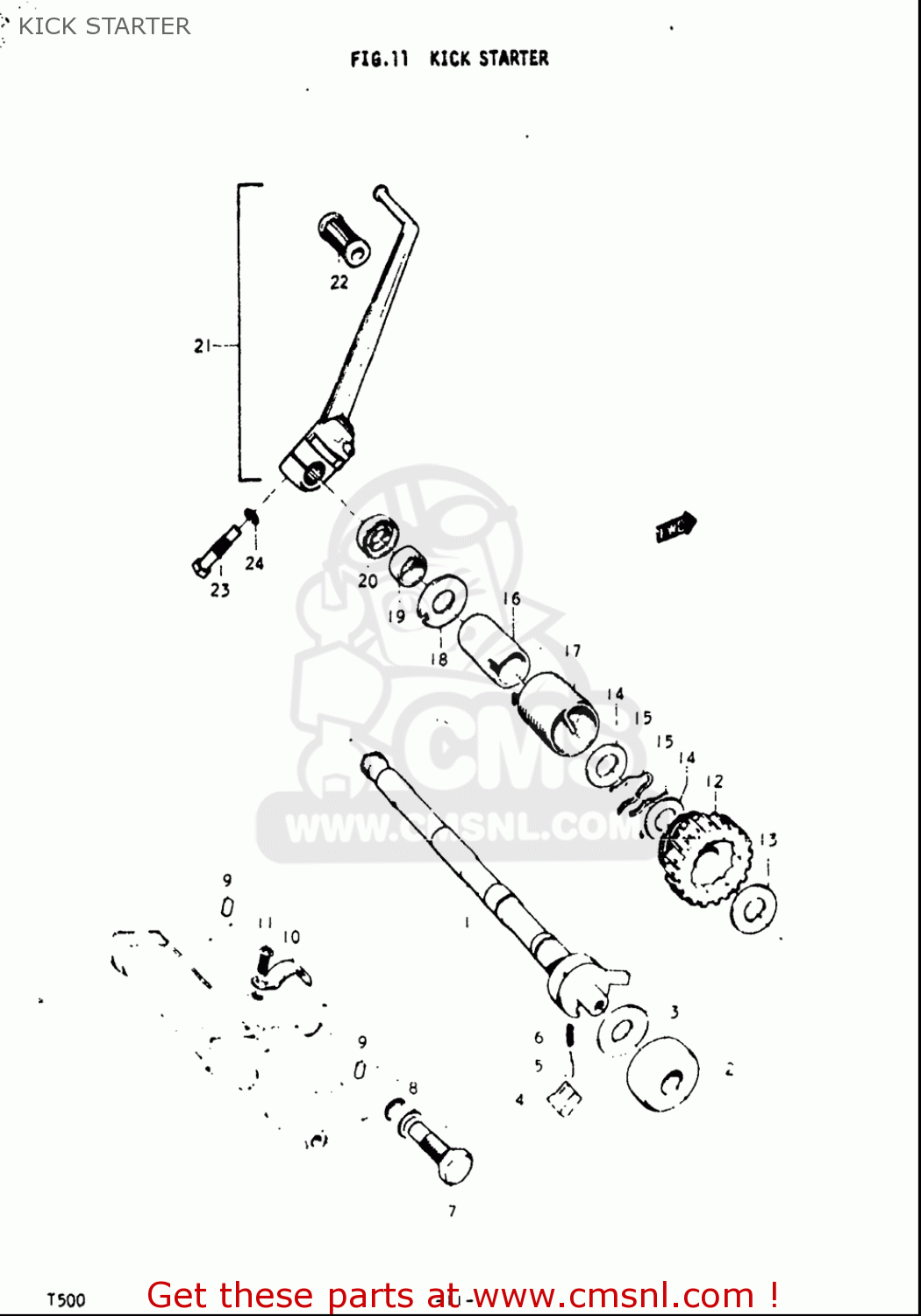

Kick starter diagram T500 1968 1969 1970 USA (E03)

prices are in EUR

ref

part #

description

quantity

0916013002
ref: 3

WASHER(13X31.5X1.5)

€ 3.00

4-2

2623120000
ref: 4-2

PAWL,KICK STARTER

€ 13.50

0920905011
ref: 5

PIN(5X15.5)

€ 2.00

0944004010
ref: 6

SPRING

€ 1.50

0916014055
ref: 8

WASHER(14.5X22X1.6)

€ 2.50

0422107129
ref: 9

PIN

€ 1.50

0211206127
ref: 11

SCREW

€ 2.00

0916016003
ref: 14

WASHER(16X30X1)

€ 2.50

0944837001
ref: 17

SPRING

€ 16.50

0928516002
ref: 20

SEAL,OIL(16X30X8)

€ 6.50

2635201000
ref: 22

RUBBER,KICK STARTER PEDAL

€ 3.50

0913510002
ref: 23

BOLT(10X37.5)

€ 5.50

0832101107
ref: 24

WASHER,LOCK

€ 2.00
