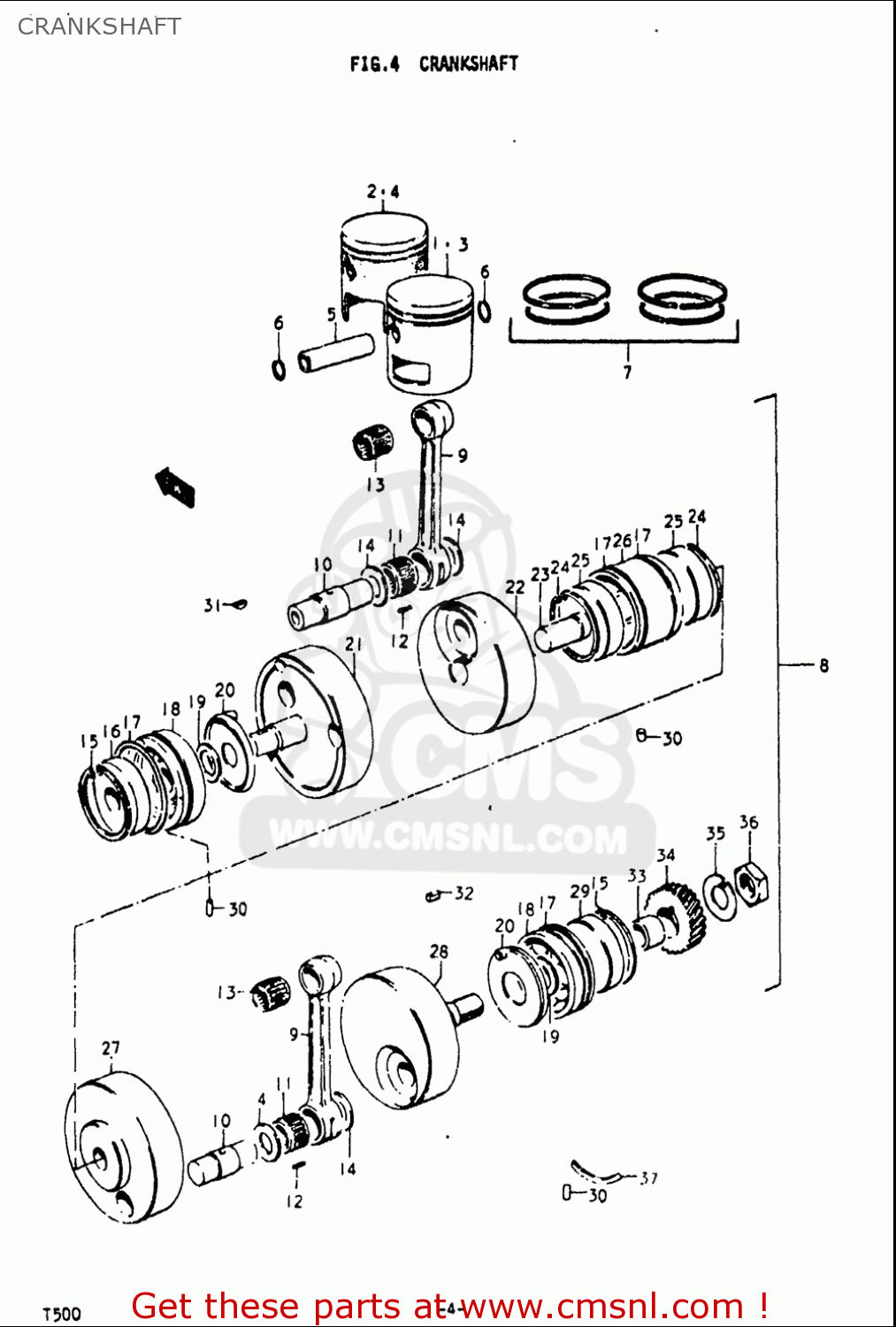

CRANKSHAFT

ref

part #

description

quantity

1-1

1211015103
ref: 1-1

PISTON,RIGHT (STD)(70.00MM)

€ 61.00

1-2

1210331830050
ref: 1-2

PISTON SET(OS:0.5)

€ 103.00

1-3

1210331830100
ref: 1-3

PISTON SET(OS:1.0)

€ 143.00

2-1

1211015103
ref: 2-1

PISTON,RIGHT (STD)(70.00MM)

€ 61.00

2-3

1210331830050
ref: 2-3

PISTON SET(OS:0.5)

€ 103.00

2-5

1210331830100
ref: 2-5

PISTON SET(OS:1.0)

€ 143.00

2-6

1210331830100
ref: 2-6

PISTON SET(OS:1.0)

€ 143.00

3-1

1212015103
ref: 3-1

PISTON,L

€ 87.50

3-2

1210331870050
ref: 3-2

PISTON SET(OS:0.5)

€ 99.50

3-3

1210331870100
ref: 3-3

PISTON SET(OS:1.0)

€ 127.50

4-1

1212015103
ref: 4-1

PISTON,L

€ 87.50

4-3

1210331870050
ref: 4-3

PISTON SET(OS:0.5)

€ 99.50

4-4

1210331870050
ref: 4-4

PISTON SET(OS:0.5)

€ 99.50

4-5

1210331870100
ref: 4-5

PISTON SET(OS:1.0)

€ 127.50

4-6

1210331870100
ref: 4-6

PISTON SET(OS:1.0)

€ 127.50

5

1215113A000A0
ref: 5

PIN,PISTON (18MM)

€ 14.50

6

0938118002A
ref: 6

CIRCLIP,PISTON PIN

€ 1.50

7-2

1214030010
ref: 7-2

RING SET,PISTON

€ 70.00

7-3

1214030010050
ref: 7-3

RING SET,PISTON(OS:0.50)

€ 59.00

10

1221115000
ref: 10

PIN,CRANK

€ 43.50

12

0926103009
ref: 12

ROLLER

€ 1.50

13

0926318021
ref: 13

BEARING(18X23X24)

€ 22.50

16

0928325014
ref: 16

SEAL,OIL(25X62X8)

€ 11.00

17

0928076001
ref: 17

O RING(D:2.5,ID:68.5)

€ 2.50

19

0918125251
ref: 19

SHIM(25X40X1)

€ 2.50

20

1251115000
ref: 20

PLATE,CRANKSHAFT OIL GUIDE

€ 12.00

25

0928330003
ref: 25

SEAL,OIL(30X65X8)

€ 13.50

30

0422107129
ref: 30

PIN

€ 1.50

31

0834131039
ref: 31

KEY

€ 2.00

32

0942107001
ref: 32

KEY

€ 2.50

33

0918025012
ref: 33

SPACER

€ 9.50

36

0914020007
ref: 36

NUT (20MM)

€ 6.00

37

0939080001
ref: 37

C-RING

€ 1.50
