TURN SIGNAL LAMP
T500 1968 1969 1970 USA (E03)

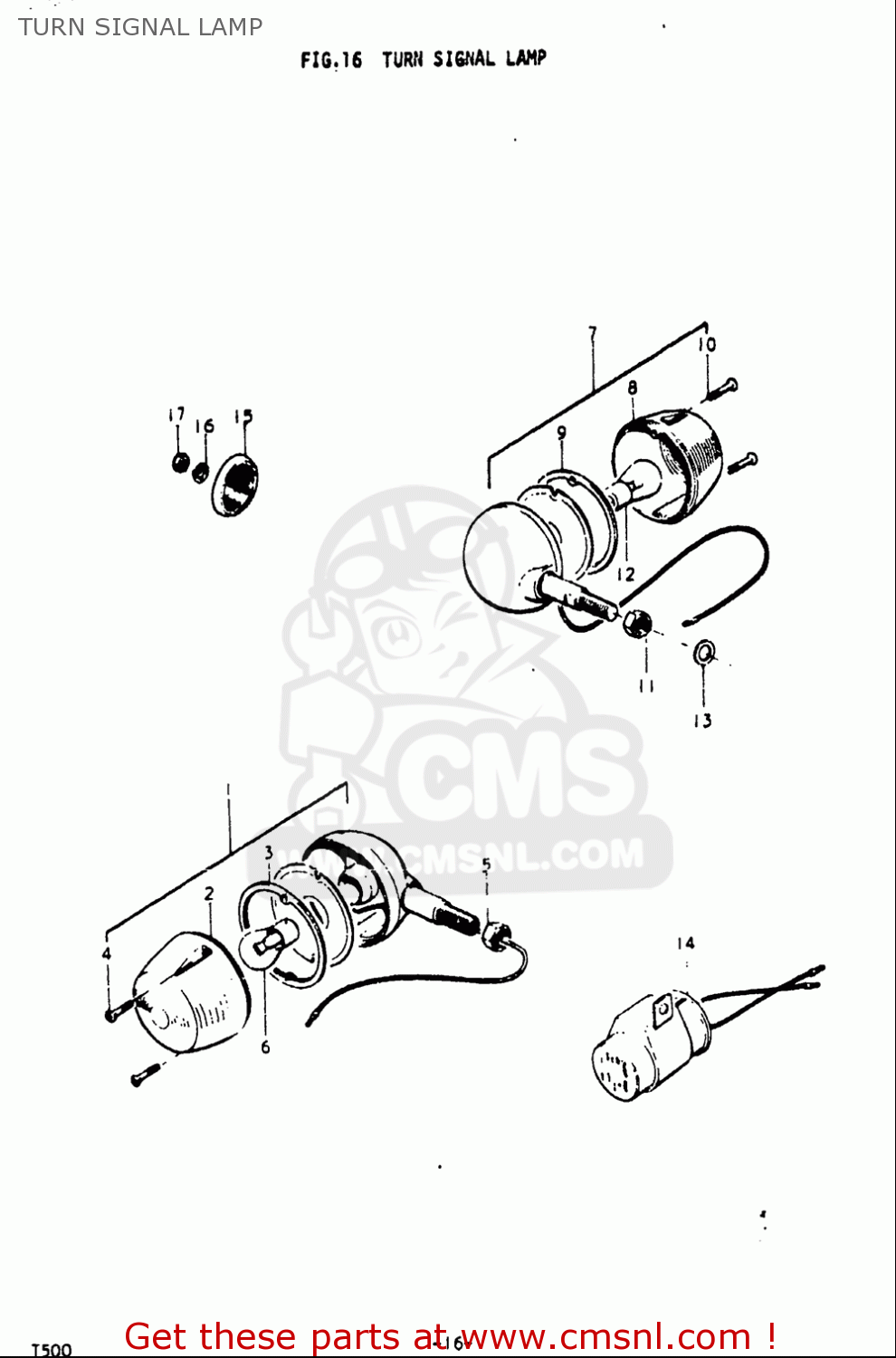

Turn signal lamp diagram T500 1968 1969 1970 USA (E03)
TURN SIGNAL LAMP T500 1968 1969 1970 USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3560115610999
ref: 1
LAMP ASSY,FR TURN SIGNAL
€ 75.00
2
3561212611
ref: 2
LENS,TURNSIGNAL
€ 11.00
3
3561303610
ref: 3
GASKET,TURNSIGNAL LENS (NAS)
€ 24.00
4
0213203167
ref: 4
SCREW
€ 1.50
5
0831000107
ref: 5
NUT
€ 2.50
6
0947112006
ref: 6
BULB(12V23W,STANLEY,A4577A)
€ 4.00
7-1
3560327670999
ref: 7-1
LAMP ASSY,RR TURNSIGNAL
€ 80.00
8-2
3561212611
ref: 8-2
LENS,TURNSIGNAL
€ 11.00
9
3561303610
ref: 9
GASKET,TURNSIGNAL LENS (NAS)
€ 24.00
10
0213203167
ref: 10
SCREW
€ 1.50
11
0831000107
ref: 11
NUT
€ 2.50
12
0947112006
ref: 12
BULB(12V23W,STANLEY,A4577A)
€ 4.00
13
0832201107
ref: 13
WASHER
€ 2.50
14
3861032210
ref: 14
RELAY,TURN SIGNAL
€ 79.00
16
0832101057
ref: 16
WASHER,LOCK
€ 2.00
17
0831000057
ref: 17
NUT
€ 2.50
