STAND - FOOTREST BAR
T500 1968 1969 1970 USA (E03)

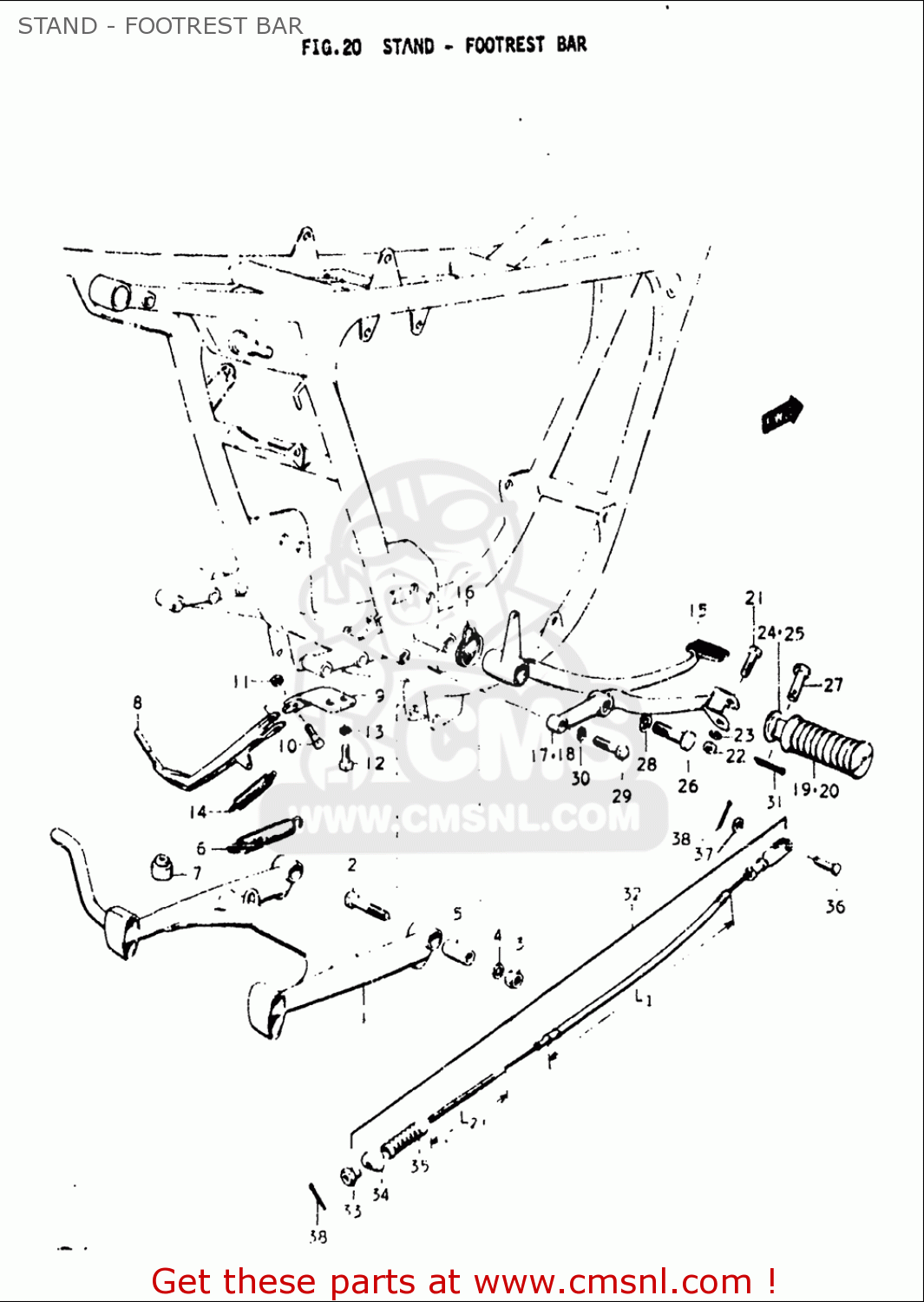

Stand - footrest bar diagram T500 1968 1969 1970 USA (E03)
STAND - FOOTREST BAR T500 1968 1969 1970 USA (E03)
×
prices are in EUR
ref
part #
description
quantity
2
0910010006
ref: 2
BOLT(10X48)
€ 4.00
3
0831000107
ref: 3
NUT
€ 2.50
4
0832101107
ref: 4
WASHER,LOCK
€ 2.00
5
0918010001
ref: 5
SPACER(10.5X16X30)
€ 3.50
6
0944316005
ref: 6
SPRING
€ 12.00
7
0932110001
ref: 7
CUSHION
€ 2.50
10
0910010287
ref: 10
BOLT(10X27)
€ 4.50
11
0831000107
ref: 11
NUT
€ 2.50
12
0150010257
ref: 12
BOLT
€ 3.00
13
0832101107
ref: 13
WASHER,LOCK
€ 2.00
14
0944314017
ref: 14
SPRING
€ 6.50
16
0944839001
ref: 16
SPRING
€ 1.50
20
4361203001
ref: 20
RUBBER,PILLION FOOTREST
€ 3.50
22
0831000067
ref: 22
NUT
€ 2.50
23
0832201067
ref: 23
WASHER
€ 2.00
24
0916022033
ref: 24
WASHER(22.5X38X1)
€ 3.50
25
0916019024
ref: 25
WASHER(19.5X32X2)
€ 2.00
26
0910412101
ref: 26
BOLT
€ 3.00
27
0920006010
ref: 27
PIN
€ 2.50
28
0832101127
ref: 28
WASHER,LOCK
€ 2.50
30
0832101087
ref: 30
WASHER,LOCK
€ 2.00
33
0915006014
ref: 33
NUT
€ 3.50
34
0920913018
ref: 34
PIN(13X18)
€ 3.50
35
0928705001
ref: 35
SEAL,DUST
€ 11.00
36
0920005001
ref: 36
PIN(L:17.5)
€ 1.50
37
0832201067
ref: 37
WASHER
€ 2.00
38
0411120158
ref: 38
PIN
€ 1.50
