REAR SWINGING ARM
T500 1968 1969 1970 USA (E03)

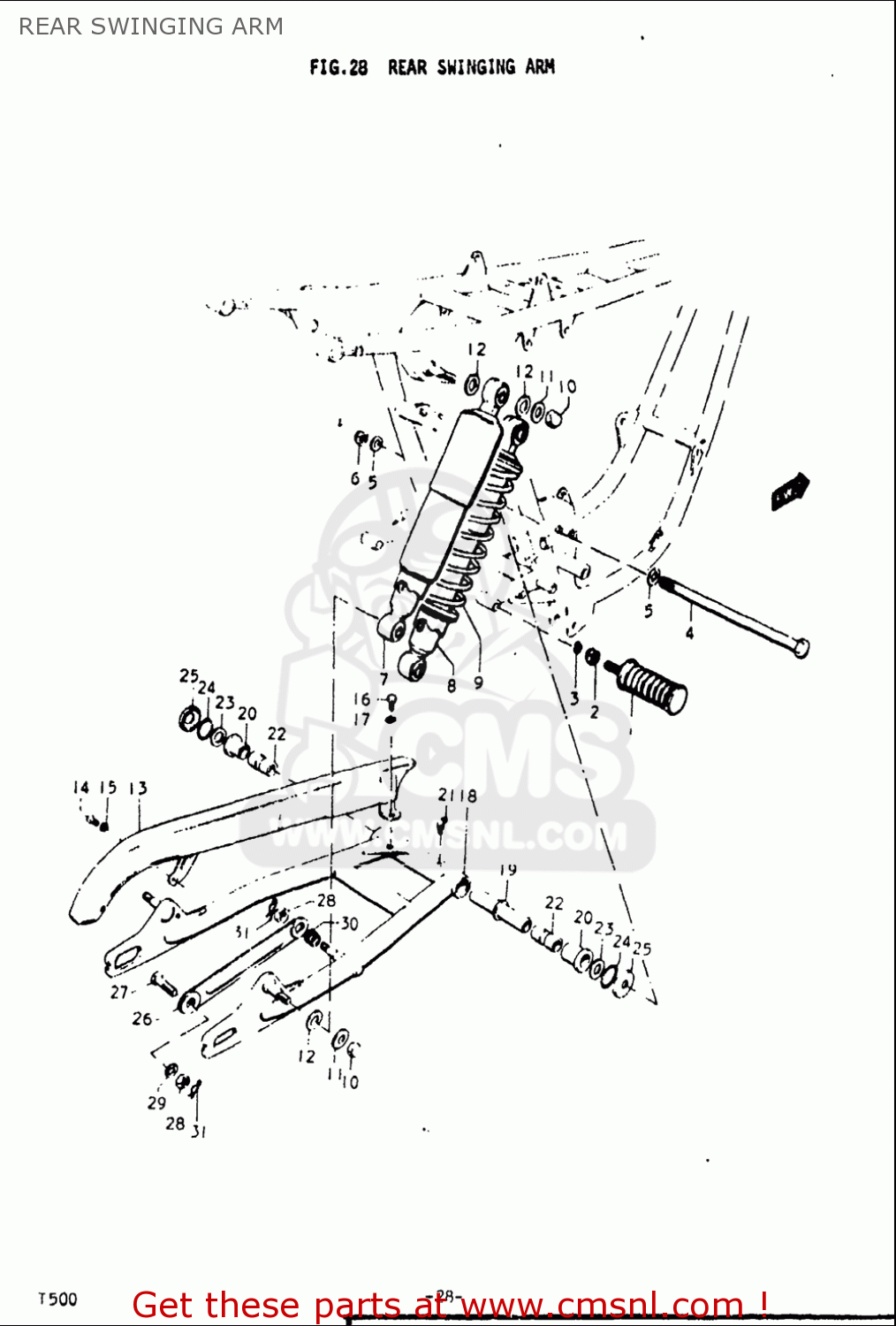

Rear swinging arm diagram T500 1968 1969 1970 USA (E03)
REAR SWINGING ARM T500 1968 1969 1970 USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4360010809
ref: 1-1
FOOTREST SET,PILLION
€ 153.50
2
0831000107
ref: 2
NUT
€ 2.50
3
0832101107
ref: 3
WASHER,LOCK
€ 2.00
5
0832201147
ref: 5
WASHER
€ 2.00
10
0831310107
ref: 10
NUT
€ 2.50
11
0832201127
ref: 11
WASHER
€ 2.00
12
0916010127
ref: 12
WASHER (10.5X24X2.3)
€ 2.00
14
0912605003
ref: 14
SCREW(5X12)
€ 2.50
15
0832331058
ref: 15
TOOTHED WASHER
€ 1.50
16
0150006127
ref: 16
BOLT
€ 2.00
17
0832101057
ref: 17
WASHER,LOCK
€ 2.00
20
0930722003
ref: 20
BUSH
€ 18.00
21
0835131008
ref: 21
NIPPLE,GREASE
€ 10.50
22
6125115001
ref: 22
SPACER
€ 21.00
23
0916014009
ref: 23
WASHER(14.5X29X2.3)
€ 3.50
24
0928030001
ref: 24
O RING(D:3,ID:29.5)
€ 2.00
25
6126215000
ref: 25
COVER
€ 84.00
27
0910110003
ref: 27
BOLT(10X31)
€ 4.00
28
0831000107
ref: 28
NUT
€ 2.50
29
0832101107
ref: 29
WASHER,LOCK
€ 2.00
30
0944018002
ref: 30
SPRING
€ 1.50
31
0938510005
ref: 31
CLIP
€ 1.50
