FRONT FORK
T500 1968 1969 1970 USA (E03)

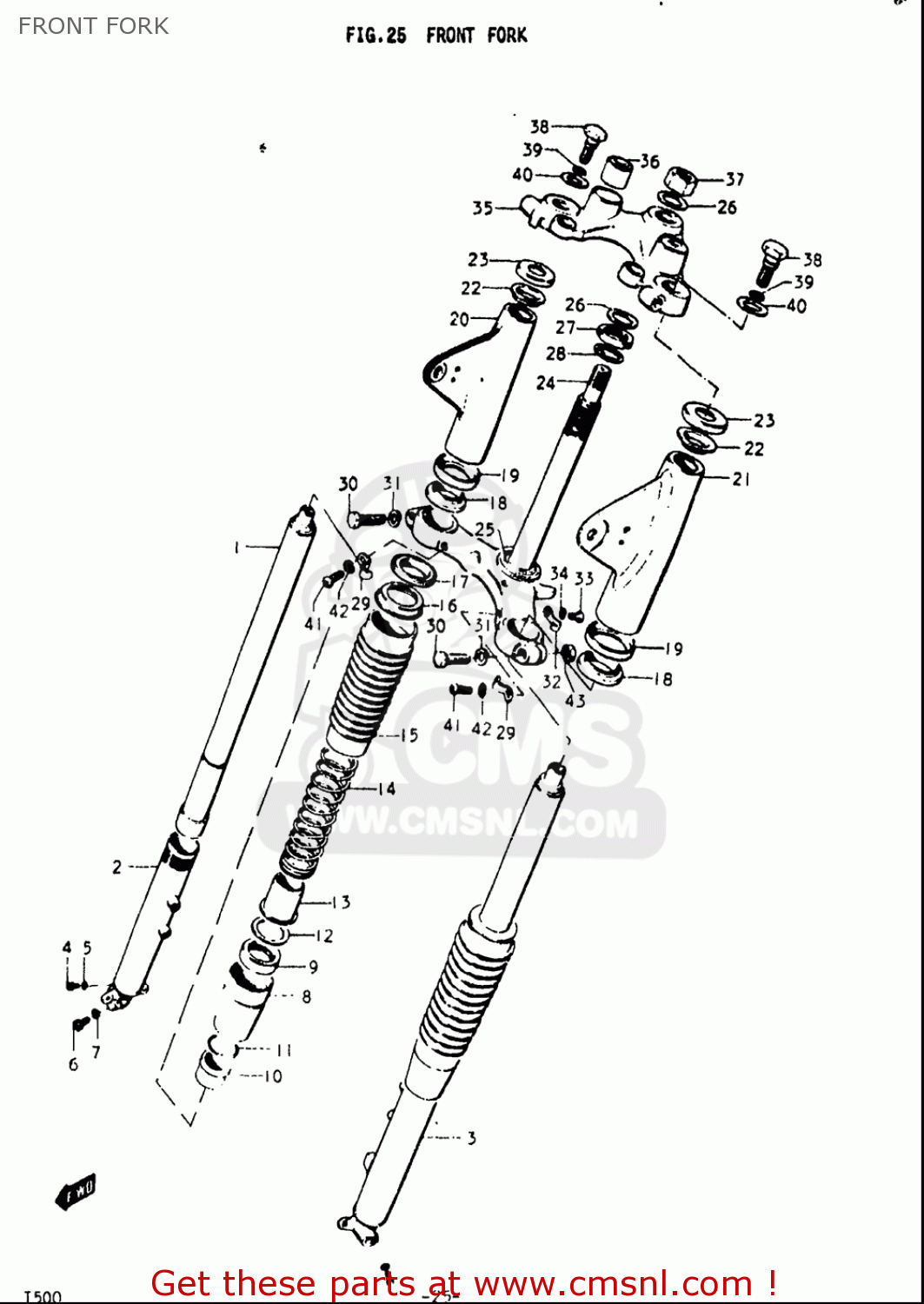

Front fork diagram T500 1968 1969 1970 USA (E03)
FRONT FORK T500 1968 1969 1970 USA (E03)
×
prices are in EUR
ref
part #
description
quantity
4
5118203621
ref: 4
OIL DRAIN PLUG
€ 3.50
5
5118303010
ref: 5
GASKET,DRAIN,PLUG (NAS)
€ 3.00
6
0150008257
ref: 6
BOLT
€ 2.50
7
0832101087
ref: 7
WASHER,LOCK
€ 2.00
9
5115316511
ref: 9
SEAL,OIL
€ 10.50
12
5115811010
ref: 12
WASHER
€ 3.00
15
5157111010
ref: 15
BOOT,SPRING COVER
€ 36.50
18
5155315110
ref: 18
CUSHION,HEADLAMP BRACKET
€ 0.00
19
5155115110
ref: 19
SEAT,HEADLAMP BRACKET
€ 0.00
30-1
5145115110
ref: 30-1
BOLT,FORK INNER TUBE F
€ 0.00
31
0832101107
ref: 31
WASHER,LOCK
€ 2.00
32
5145303010
ref: 32
CLIP,BRAKE CABLE
€ 5.00
33
0211206107
ref: 33
SCREW
€ 1.50
34
0832101057
ref: 34
WASHER,LOCK
€ 2.00
37
0831000183
ref: 37
NUT
€ 2.00
38
5135111011
ref: 38
CAP,FORK INNER TUBE
€ 5.50
40
5135411010
ref: 40
WASHER
€ 5.50
41
0211206107
ref: 41
SCREW
€ 1.50
42
0832101067
ref: 42
WASHER,LOCK
€ 2.50
43
0831310107
ref: 43
NUT
€ 2.50
