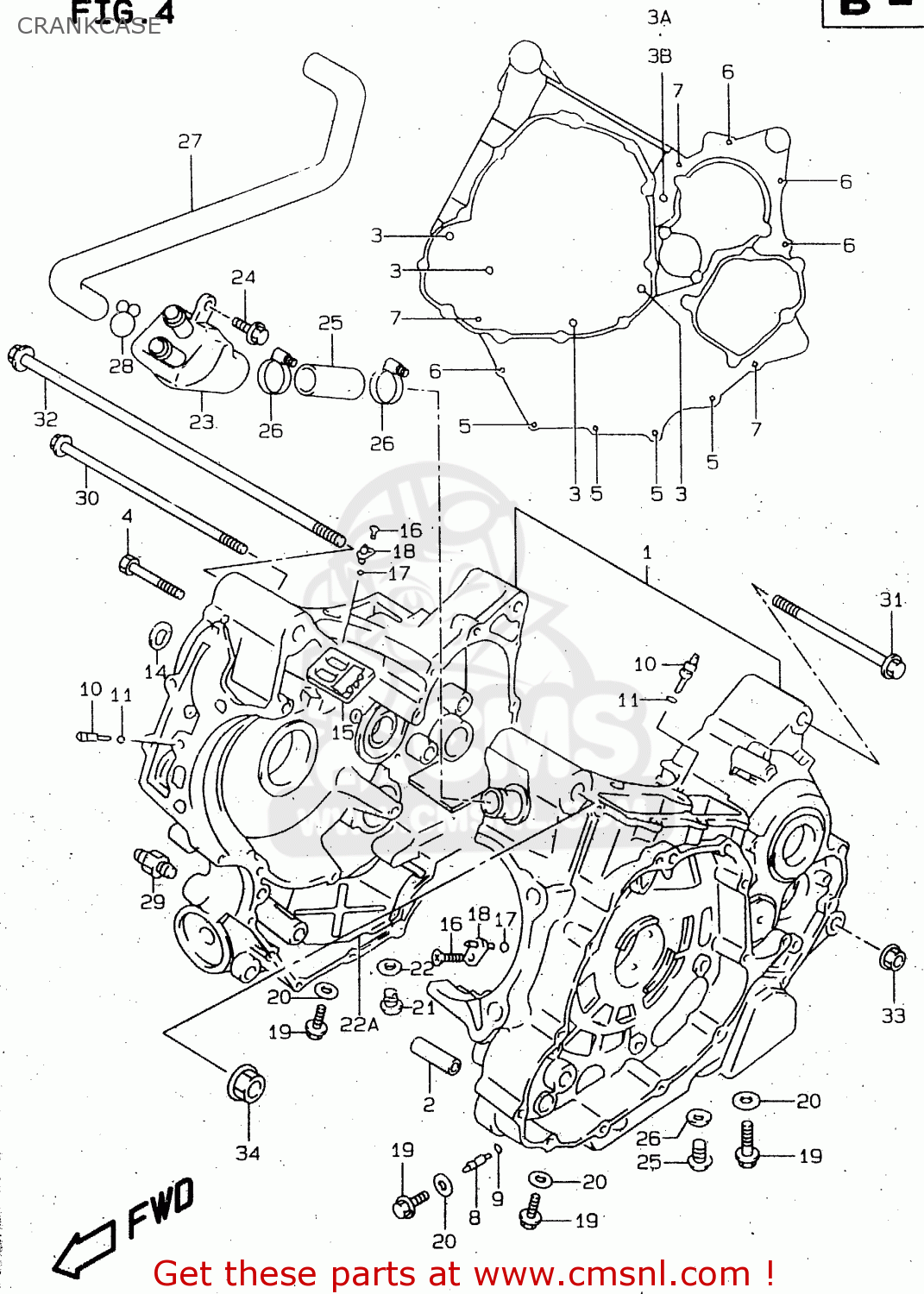

CRANKCASE

ref

part #

description

quantity

1

1130502873
ref: 1

CRANKCASE SET

€ 1,699.50

2

1131933E00
ref: 2

PIN,CRANKCASE

€ 4.00

3

0712008903
ref: 3

BOLT

€ 4.50

3A

0910608136
ref: 3A

BOLT(8X125)

€ 6.00

3B

0832201083
ref: 3B

WASHER

€ 1.50

4

0910608142
ref: 4

BOLT(8X110)

€ 5.50

5

0155006353
ref: 5

BOLT

€ 2.50

6

0155006703
ref: 6

BOLT

€ 2.50

7

0155006853
ref: 7

BOLT

€ 2.50

8

0949328010
ref: 8

JET,AIR(14)

€ 10.50

9

0928004004
ref: 9

O RING(D:1.2,ID:4)

€ 2.00

10

0949320014
ref: 10

JET,OIL GALLERY

€ 8.00

11

0928004004
ref: 11

O RING(D:1.2,ID:4)

€ 2.00

12

0924714001
ref: 12

PLUG

€ 5.00

13

0916814002
ref: 13

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

14

0928012009
ref: 14

O RING(D:1.9,ID:12.6)

€ 2.50

15

1315002F00
ref: 15

VALVE ASSY,BREATHER

€ 40.50

16

0912506086
ref: 16

SCREW(6X12)

€ 2.00

17

0928004004
ref: 17

O RING(D:1.2,ID:4)

€ 2.00

18

1139002F00
ref: 18

JET,PISTON COOLING

€ 21.50

19

0155008123
ref: 19

BOLT

€ 3.50

20

0916808015
ref: 20

GASKET(8.2X14X1).6 (NAS)

€ 2.50

21

0924816010
ref: 21

PLUG

€ 4.50

22

0916816002
ref: 22

GASKET(16X22X2) (NAS)

€ 2.00

22A

1132402F10
ref: 22A

SEPARATOR,OIL

€ 7.00

23

1133002F01
ref: 23

TANK,OIL RETURN

€ 72.00

24

0155006163
ref: 24

BOLT

€ 2.50

25

1133302F00
ref: 25

HOSE,OIL RETURN

€ 7.50

26

0940228511
ref: 26

CLAMP

€ 8.50

27

1133202FA0
ref: 27

HOSE,BREATHER

€ 18.00

28

0940115301
ref: 28

CLIP

€ 2.50

29

3782033D00
ref: 29

SWITCH ASSEMBLY,OIL PRESSURE

€ 29.00

30

0910310145
ref: 30

BOLT(10X205)

€ 13.00

31

0910310146
ref: 31

BOLT(10X155)

€ 8.50

32

0910312052
ref: 32

BOLT(12X200)

€ 11.50

33

0915910058
ref: 33

NUT

€ 4.00

34

0831931123
ref: 34

NUT

€ 3.00
