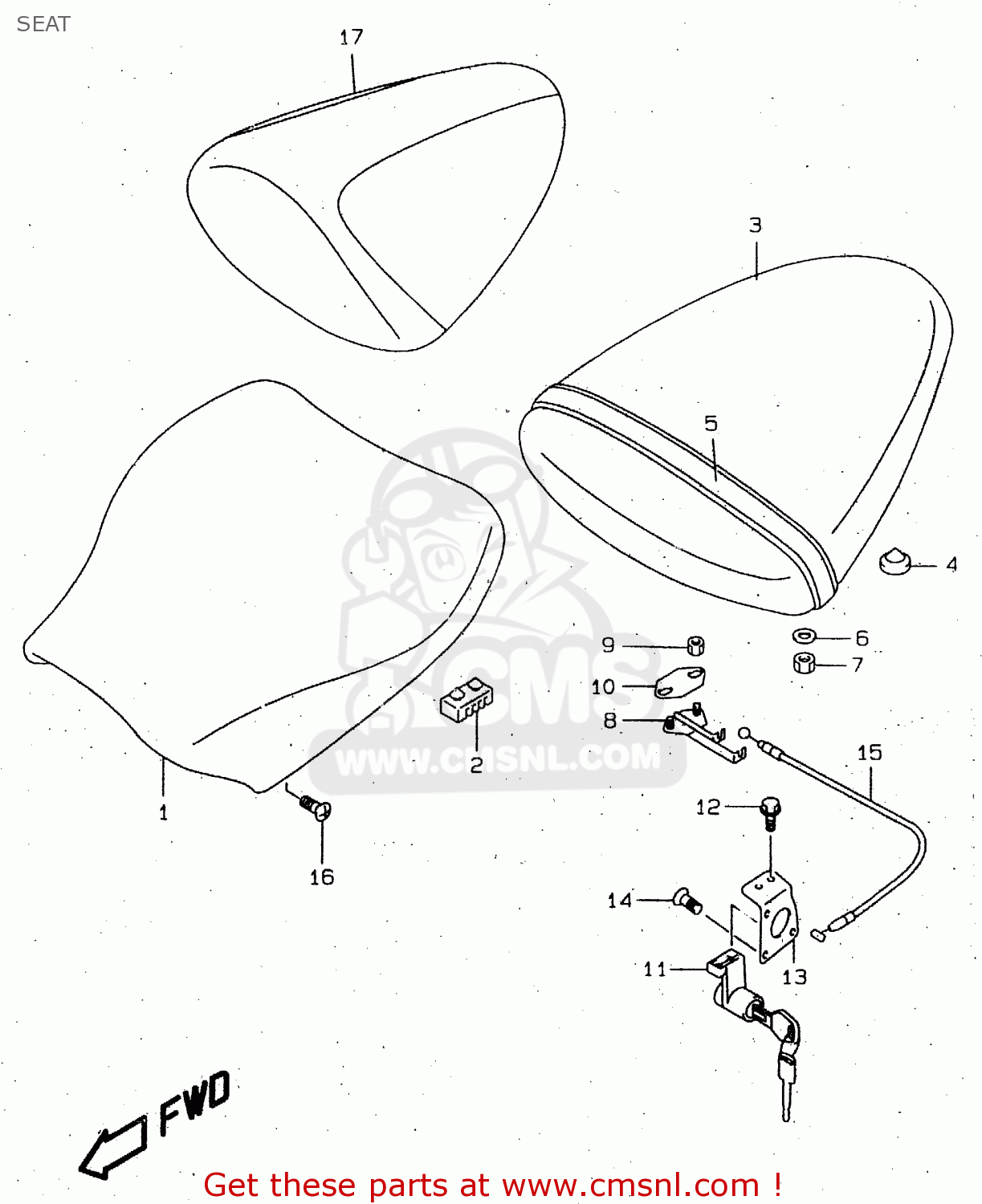

SEAT

ref

part #

description

quantity

1

4510002FA0R42
ref: 1

SEAT ASSY

€ 209.00

2

4514931300
ref: 2

CUSHION,SEAT(40X20X15)

€ 2.00

3

4530002FA0R42
ref: 3

SEAT ASSY,PILLION

€ 203.50

4

0932110002
ref: 4

CUSHION(11.5X22X20)

€ 2.00

5

4518002FA0R42
ref: 5

BAND ASSY,PILLION SEAT

€ 21.50

6

0916006088
ref: 6

WASHER(6.5X20X1.6)

€ 2.00

7

0831610063
ref: 7

NUT

€ 2.50

8

4522003F00
ref: 8

BRACKET,SEAT SUPPORT

€ 32.00

9

0831610063
ref: 9

NUT

€ 2.50

10

4522803F00
ref: 10

PLATE,SEAT SUPPORT BRKT

€ 5.50

11

9570031840
ref: 11

LOCK SET,SEAT

€ 57.00

12

0154705103
ref: 12

BOLT

€ 2.50

13

4528903F00
ref: 13

BRACKET,SEAT LOCK

€ 6.00

14

0314114123
ref: 14

SCREW

€ 2.00

15

4528020C00
ref: 15

CABLE,SEAT LOCK

€ 13.00

16

0910606064
ref: 16

BOLT(6X18)

€ 6.00

17

4555002FA03SP
ref: 17
FOR L99

BOX,SEAT TAIL

€ 217.50

17

4555002FA0E6S
ref: 17
FOR 28V

BOX,SEAT TAIL

€ 79.00

17

4555002FA0E6R
ref: 17
FOR 163

BOX,SEAT TAIL

€ 201.00

all assemblies
