HEADLAMP

TL1000R 1998 (W) (E02 E04 E18 E22 E24 E25 E34)

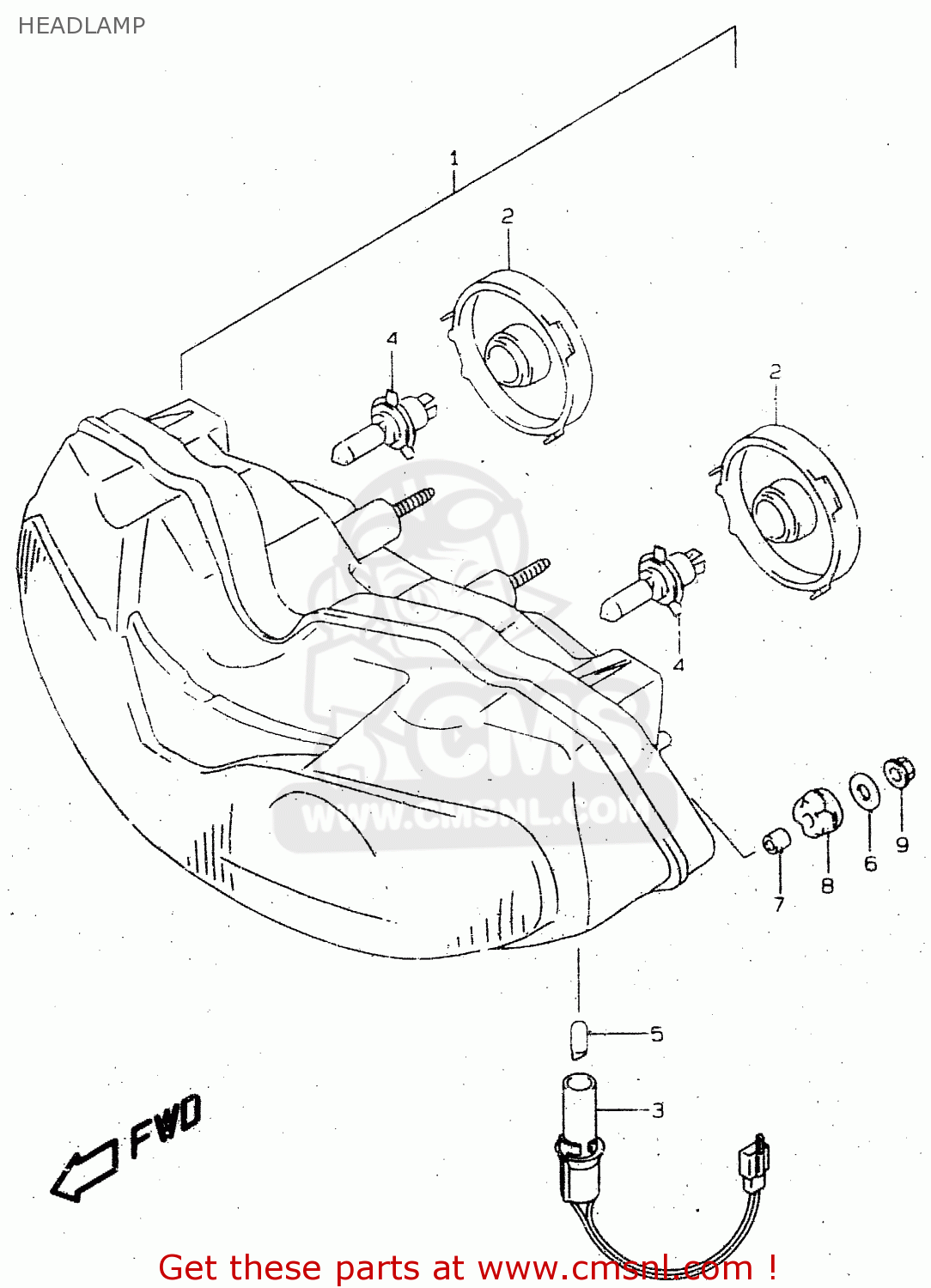

Headlamp diagram TL1000R 1998 (W) (E02 E04 E18 E22 E24 E25 E34)

HEADLAMP TL1000R 1998 (W) (E02 E04 E18 E22 E24 E25 E34)

HEADLAMP TL1000R 1998 (W) (E02 E04 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

3510002F70999
ref: 1

HEADLAMP ASSY

€ 388.50

2

3512502F00
ref: 2

COVER,SOCKET

€ 14.00

3

3611818E51
ref: 3

SOCKET ASSY

€ 15.00

4

0947112185
ref: 4

BULB(12V60/55W,H4)

€ 8.00

5

0947112081
ref: 5

BULB(12V5W)

€ 1.50

6

0916006088
ref: 6

WASHER(6.5X20X1.6)

€ 2.00

7

0918006268
ref: 7

SPACER(6.5X9X13.5)

€ 2.00

8

0932009015
ref: 8

CUSHION

€ 2.50

9

0831610063
ref: 9

NUT

€ 2.50
