TAIL LAMP

TL1000R 1998 (W) (E02 E04 E18 E22 E24 E25 E34)

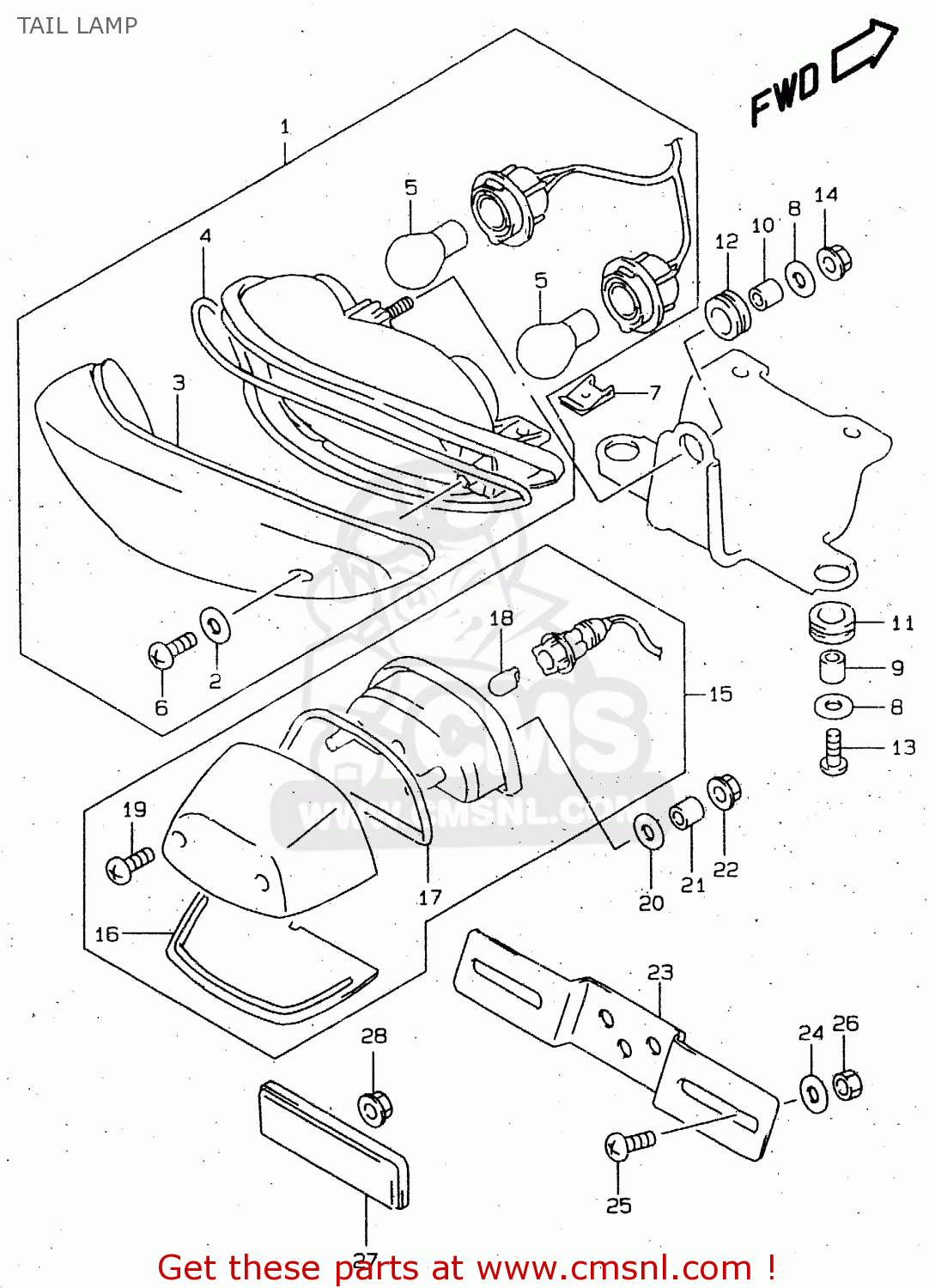

Tail lamp diagram TL1000R 1998 (W) (E02 E04 E18 E22 E24 E25 E34)

TAIL LAMP TL1000R 1998 (W) (E02 E04 E18 E22 E24 E25 E34)
TAIL LAMP TL1000R 1998 (W) (E02 E04 E18 E22 E24 E25 E34)
TAIL LAMP TL1000R 1998 (W) (E02 E04 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
3571002F00
ref: 1
LAMP ASSY,RR COMBINATION
3571002F00
€ 167.00
2
3562743010
ref: 2
GASKET (NAS)
3562743010
€ 2.00
3
3571202F00
ref: 3
LENS
3571202F00
€ 21.50
4
3571302F00
ref: 4
GASKET (NAS)
3571302F00
€ 6.50
5
0947112083
ref: 5
BULB(12V21/5W)
0947112083
€ 6.00
6
0321104207
ref: 6
SCREW
0321104207
€ 1.50
7
0914805020
ref: 7
NUT
0914805020
€ 2.00
8
0916006088
ref: 8
WASHER(6.5X20X1.6)
0916006088
€ 2.00
9
0918006285
ref: 9
SPACER(6.5X10X9)
0918006285
€ 2.50
10
0918006290
ref: 10
SPACER(6.5X10X12)
0918006290
€ 2.50
11
0932009009
ref: 11
CUSHION
0932009009
€ 5.00
12
0932009010
ref: 12
CUSHION
0932009010
€ 2.50
13
0354105203
ref: 13
SCREW
€ 2.50
14
0831610063
ref: 14
NUT
0831610063
€ 2.50
15
3591002F00
ref: 15
LAMP ASSY,LICENSE
3591002F00
€ 111.50
16
3591202F00
ref: 16
LENS
€ 10.00
17
3591302F00
ref: 17
GASKET (NAS)
€ 4.50
18
0947112081
ref: 18
BULB(12V5W)
0947112081
€ 1.50
19
0321104163
ref: 19
SCREW
0321104163
€ 1.50
20
0916006088
ref: 20
WASHER(6.5X20X1.6)
0916006088
€ 2.00
21
0918005054
ref: 21
SPACER(5.5X9.5X11.5)
0918005054
€ 2.00
22
0831610053
ref: 22
NUT
0831610053
€ 2.50
23
3592700A10
ref: 23
BRACKET,LICENSE PLATE
3592700A10
€ 6.00
24
0916006088
ref: 24
WASHER(6.5X20X1.6)
0916006088
€ 2.00
25
0214206203
ref: 25
SCREW
0214206203
€ 2.00
26
0831610063
ref: 26
NUT
0831610063
€ 2.50
27
3597007F00
ref: 27
REFLECTOR ASSEMBLY,REAR
€ 20.50
28
0831610053
ref: 28
NUT
0831610053
€ 2.50
