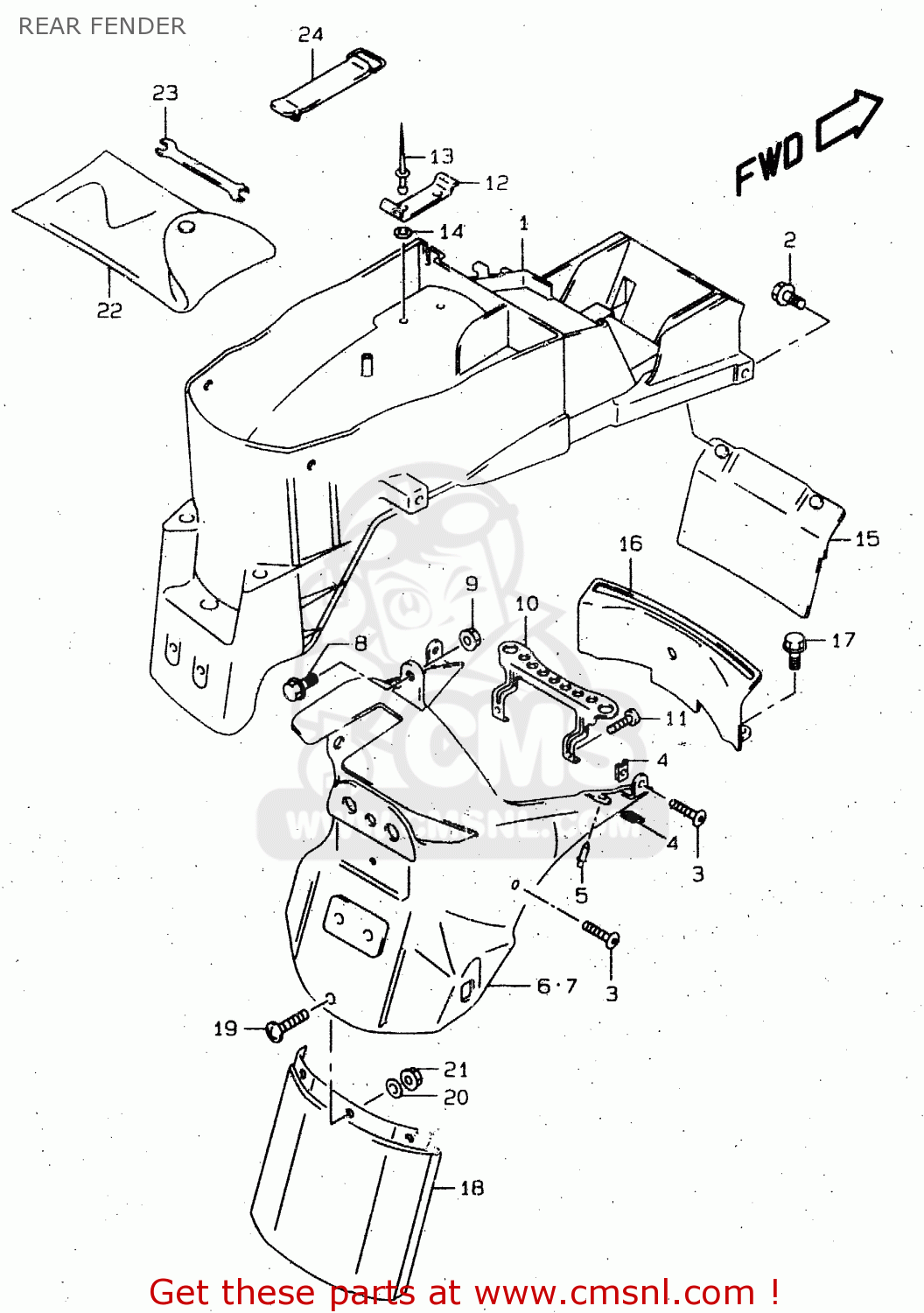

REAR FENDER

ref

part #

description

quantity

1

6311102FA0
ref: 1

FENDER,REAR,FRONT

€ 117.50

2

0911606144
ref: 2

BOLT 6X16

€ 2.50

3

0913905021
ref: 3

SCREW(5X12)

€ 2.00

4

0914805021
ref: 4

NUT

€ 1.50

5

0940907313
ref: 5

CLIP

€ 3.50

6

6311202FA0
ref: 6

FENDER,RR RR

€ 100.50

7

6311202FB0
ref: 7
E18,E22

FENDER,RR RR

€ 37.00

8

0911106066
ref: 8

BOLT(6X16)

€ 2.50

9

0831610063
ref: 9

NUT

€ 2.50

10

6325602FA0
ref: 10

BRACKET,REAR COMBINATION LAMP

€ 12.50

11

0913205041
ref: 11

SCREW(5X16)

€ 2.50

12

6346602F00
ref: 12

HOLDER,TOOL

€ 7.50

13

0922904020
ref: 13

RIVET

€ 2.50

14

0832201043
ref: 14

WASHER

€ 5.00

15

6341102FB0
ref: 15

MUD GUARD,REAR FENDER

€ 13.50

16

6342102FA1
ref: 16

MUDGUARD,RR FENDER FR LWR

€ 14.50

17

0911106066
ref: 17

BOLT(6X16)

€ 2.50

18

6331102FA0
ref: 18
E18,E22

EXTENSION,RR FENDER

€ 0.00

19

0214206163
ref: 19
E18,E22

SCREW

€ 2.50

20

0916006084
ref: 20
E18,E22

WASHER(6.5X18X1.6)

€ 2.00

21

0831921068
ref: 21
E18,E22

NUT 6MM

€ 2.00

22

0980021039
ref: 22

TOOL ASSY

€ 73.00

23

0981300027
ref: 23

OPEN SPANNER(8X10)

€ 3.00

24

4743502F00
ref: 24

BAND,TOOL

€ 7.00
