prices are in EUR

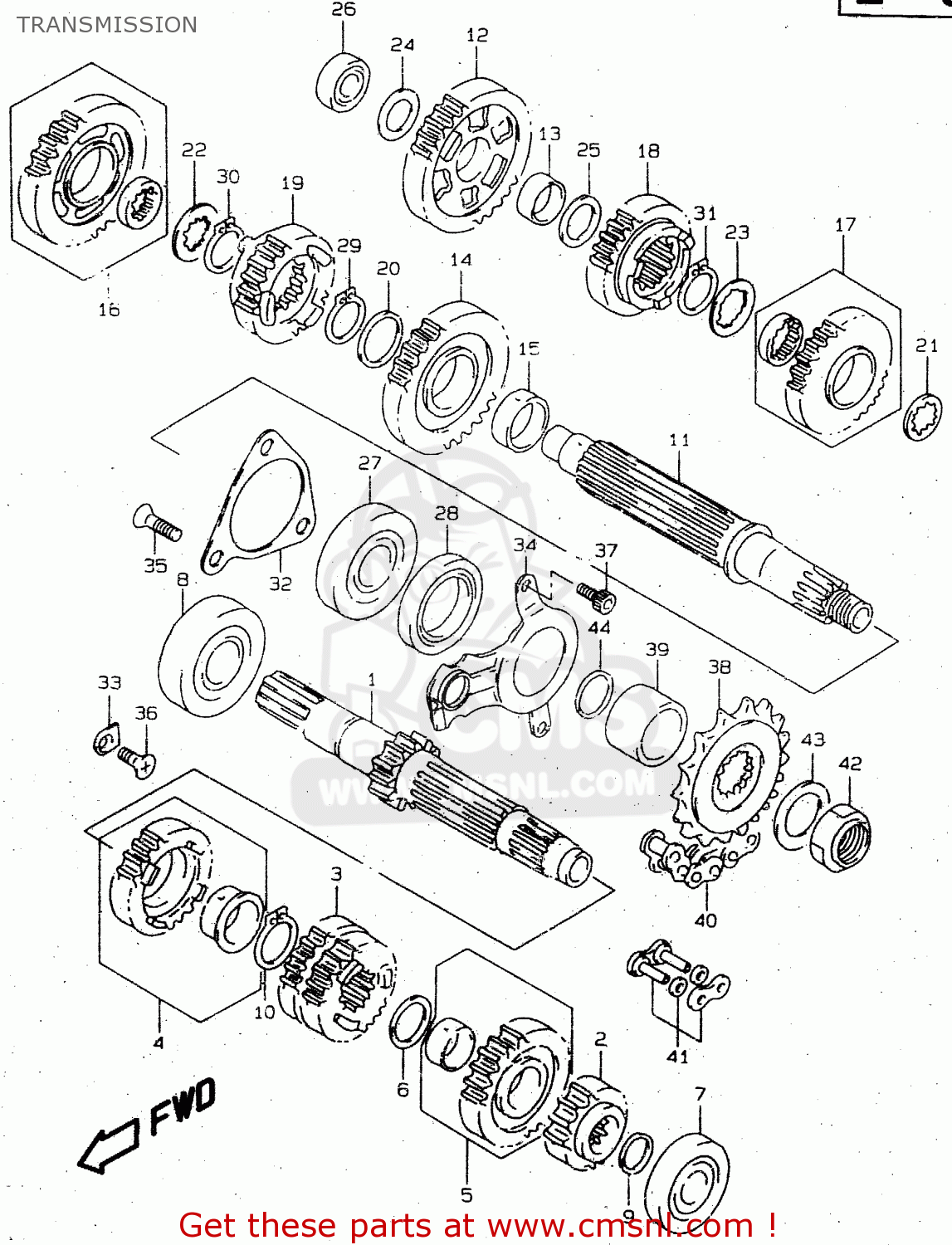

ref
part #
description
quantity
1
SHAFT,COUNTER(NT:12)
2
GEAR,2ND DRIVE(NT:15)
3
GEAR,3RD & 4TH DRIVE(NT:18/27)
4
GEAR SET,FIFTH DRIVE (NT:
5
GEAR SET,SIXTH DRIVE (NT:
6
SHIM(22X30X1)
7
BEARING(20X47X14)
8
BEARING(25X62X17)
9
O RING(D:1.9,ID:16.6)
10
CIRCLIP
12
GEAR,1ST DRIVEN(NT:32)
13
BUSH
14
GEAR,2ND DRIVEN(NT:29)
15
BUSH,2ND DRIVEN GEAR
16
GEAR SET,THIRD DRIVEN (NT
17
GEAR SET,FOURTH DRIVEN (NT
18
GEAR,5TH DRIVEN(NT:25)
19
GEAR,SIXTH DRIVEN (NT:24)
20
WASHER(27X36X1)
21
WASHER,LOCK
22
WASHER,3RD & 4TH DRIVEN
23
WASHER,3RD & 4TH DRIVEN
24
SHIM(20X34X1)
25
SHIM(22X34X1)
26
BEARING(20X52X15)
27
BEARING(28X68X20)
28
SEAL,OIL(38X52X8)
29
CIRCLIP
30
CIRCLIP
31
CIRCLIP
32
RETAINER,DRIVE SHAFT BEARING
33
RETAINER
34
RETAINER,DRIVESHAFT O
35
SCREW(6X12)
36
SCREW
38
SPROCKET,ENGINE (NT:17)
39
SPACER,ENGINE SPROCKET
40
CHAIN ASSEMBLY RK50GSVZ1.1
42
NUT
43
SHIM(25X40X1.5)
44
O RING(D:2.4,ID:23.7)
