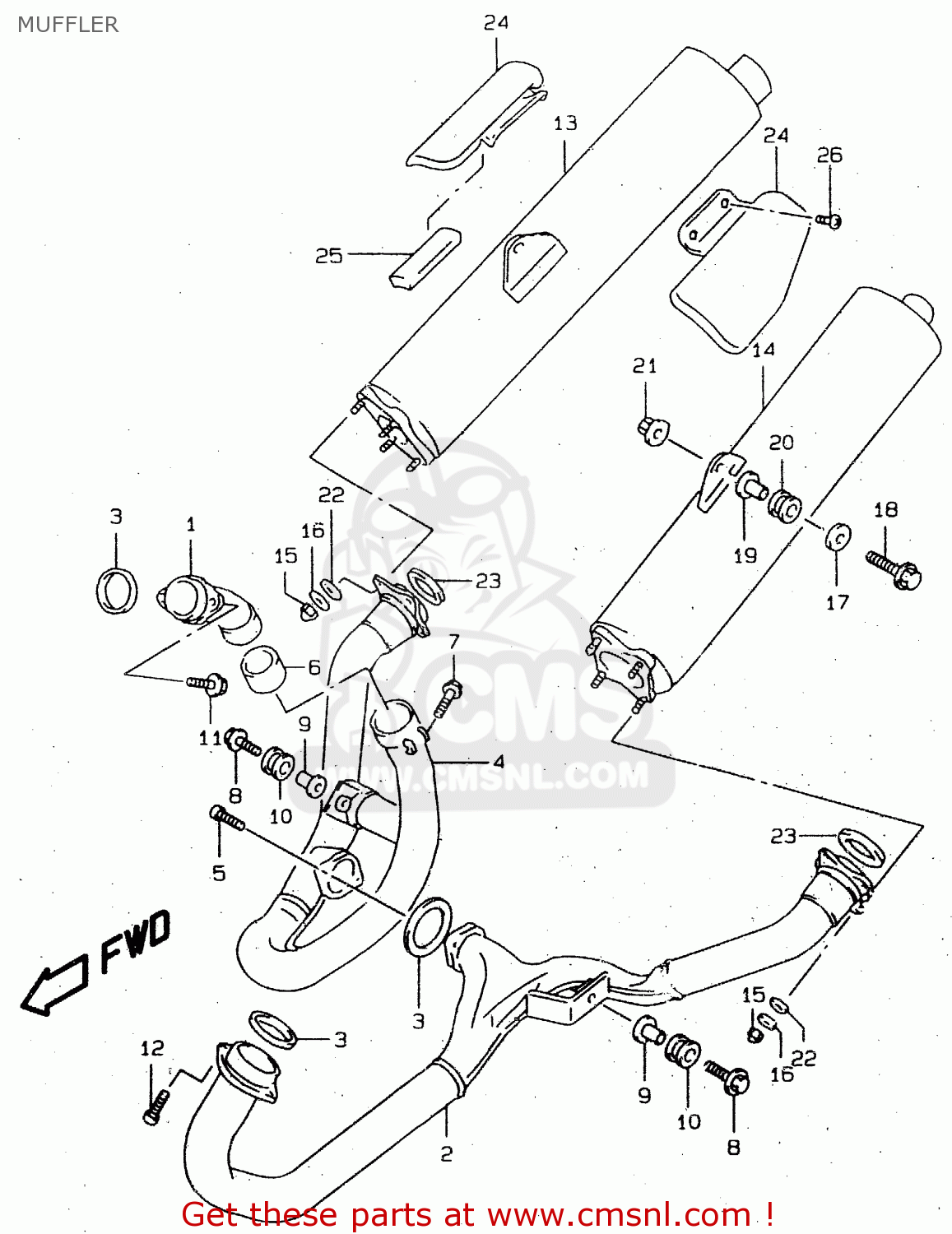

MUFFLER

ref

part #

description

quantity

1

1415002F00
ref: 1

PIPE,EXHAUST,R

€ 99.50

2

1416002FA0
ref: 2

PIPE,EXHAUST,L

€ 531.50

3

1418131D00
ref: 3

GASKET,EXHAUST PIPE (NAS)

€ 9.50

4

1421002FA0
ref: 4

PIPE,EXHAUST JOINT,R

€ 543.50

5

1411873G01
ref: 5

BOLT,EXH MANF

€ 7.50

6

1477102F00
ref: 6

CONNECTOR,EXHAUST,R

€ 19.50

7

0155008403
ref: 7

BOLT

€ 3.50

8

0911808152
ref: 8

BOLT 8X45

€ 5.00

9

0918008152
ref: 9

SPACER(8.6X12X24.2)

€ 6.00

10

0932012048
ref: 10

CUSHION

€ 5.00

11

0155008257
ref: 11

BOLT

€ 2.50

12

0910608104
ref: 12

BOLT

€ 5.00

13

1431002FA0H01
ref: 13

BODY,MUFFLER,R

€ 833.00

14

1434002FA0H01
ref: 14

BODY,MUFFLER,L

€ 833.00

15

0915908101
ref: 15

NUT

€ 7.50

16

0916008114
ref: 16

WASHER(8.5X18X1.6)

€ 2.50

17

0916008140
ref: 17

WASHER (8.5X33X1.6)

€ 3.00

18

0155008457
ref: 18

BOLT

€ 4.00

19

0918008156
ref: 19

SPACER(8.6X12X27.1)

€ 6.50

20

0932012049
ref: 20

CUSHION

€ 9.00

21

0836125088
ref: 21

NUT

€ 2.50

22

0928008012
ref: 22

O RING(D:1.9,ID:7.8)

€ 4.00

23

1418102F00
ref: 23

GASKET,MUFFLER JOINT (NAS)

€ 7.00

24

1478002FA0
ref: 24

PROTECTOR,MUFFLER,R

€ 91.00

24

1479002FA0
ref: 24

PROTECTOR,MUFFLER,L

€ 94.50

25

1478502FA0
ref: 25

CUSHION,MUFFLER COVERER

€ 9.00

26

0913906091
ref: 26

SCREW(6X12)

€ 4.00

all assemblies
