ELECTRICAL
TL1000R 2001 (K1) USA (E03)

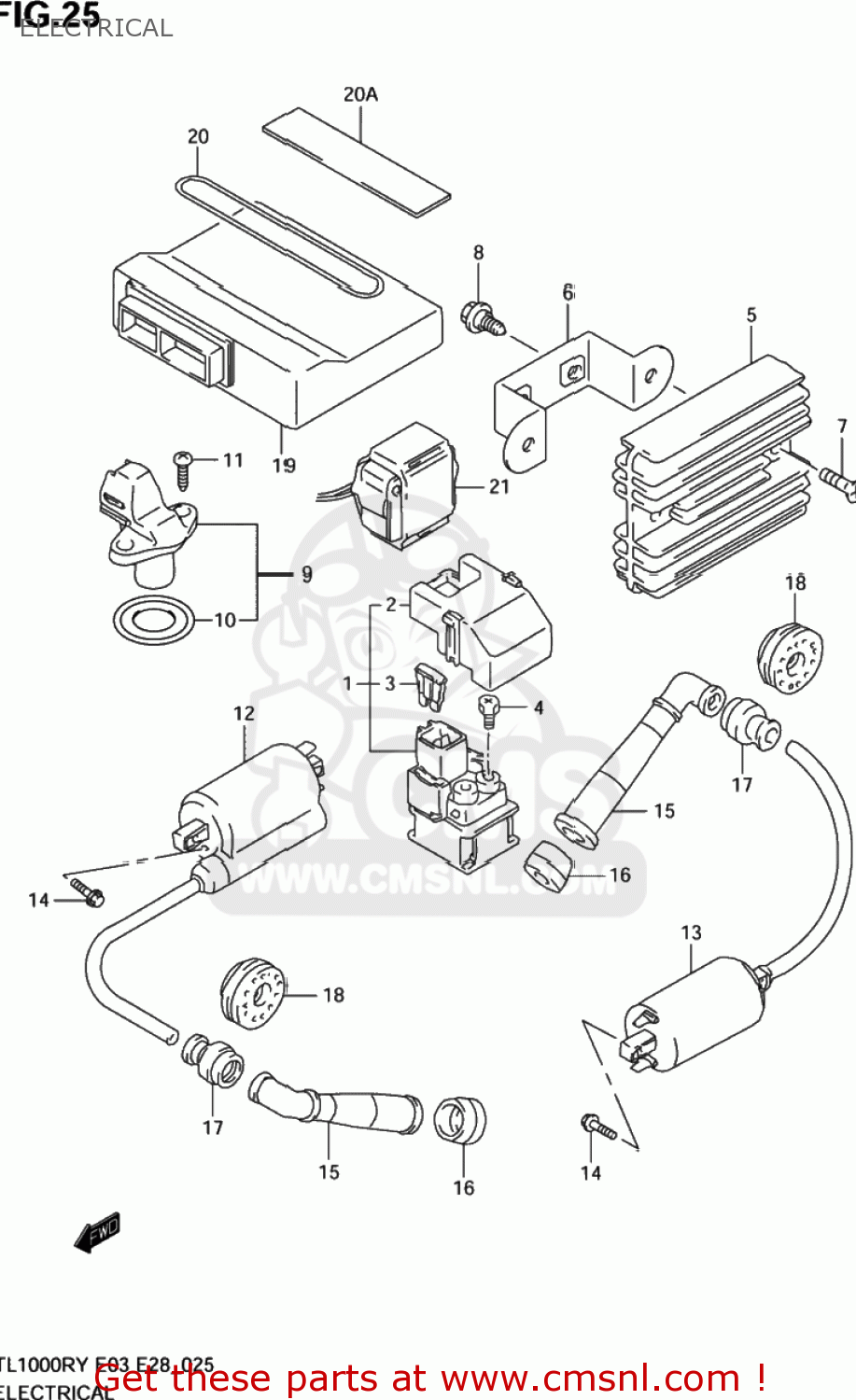

Electrical diagram TL1000R 2001 (K1) USA (E03)
ELECTRICAL TL1000R 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180021E20
ref: 1
RELAY ASSY,STARTING MOTOR
€ 69.00
2
3186121E20
ref: 2
31861-47E00
COVER,RELAY ASSEMBLY
€ 10.50
3
0948130101
ref: 3
FUSE(30A)
€ 6.00
4
0912806013
ref: 4
SCREW(6X8)
€ 1.50
5
3280002F00
ref: 5
RECTIFIER ASSY
€ 368.00
6
3283102F10
ref: 6
BRACKET,RECT FTG
€ 7.00
7-1
0913606093
ref: 7-1
01560-0620A
SCREW (6X20)
€ 2.00
7-2
0216206203
ref: 7-2
02162-0620C
BOLT
€ 2.00
8-1
0911106066
ref: 8-1
BOLT(6X16)
€ 2.50
8-2
0911306001
ref: 8-2
BOLT(6X16)
€ 3.00
9-1
3216002F10
ref: 9-1
SENSOR ASSY,CAM POSITION
€ 127.50
9-2
3216002F00
ref: 9-2
SENSOR ASSY,CAM POSITION
€ 127.50
9-3
3216002F10
ref: 9-3
SENSOR ASSY,CAM POSITION
€ 127.50
10
3216102F00
ref: 10
PACKING (NAS)
€ 8.00
11
0211206163
ref: 11
02112-0616A
SCREW 6X16
€ 2.00
12
3341002F00
ref: 12
COIL ASSY,IGNITION
€ 112.50
13
3342038A11
ref: 13
COIL ASSY,IGNITION
€ 150.00
14
0216205203
ref: 14
02162-0520B
SCREW, PRESSURE SENSOR
€ 2.00
15
3351048B10
ref: 15
CAP,SPARK PLUG
€ 29.50
16
3354123E01
ref: 16
SEAL,SPARK PLUG CAP
€ 7.00
17
3354238B00
ref: 17
SEAL,HIGH TENSION CORD
€ 4.50
18
3354302F00
ref: 18
COVER,SPARK PLUG CAP
€ 22.50
19
3292002FD0
ref: 19
CONTROL UNIT,FI
€ 0.00
20
3365112910
ref: 20
BAND,BATTERY
€ 6.00
20A
3365207D00
ref: 20A
PROTECTOR(80X80X2)
€ 4.50
20A
3365207D00
ref: 20A
PROTECTOR(80X80X2)
€ 4.50
21
3396002F00
ref: 21
SENSOR ASSY,FUEL CUT
€ 85.00
