OIL COOLER

TL1000R 2001 (K1) USA (E03)

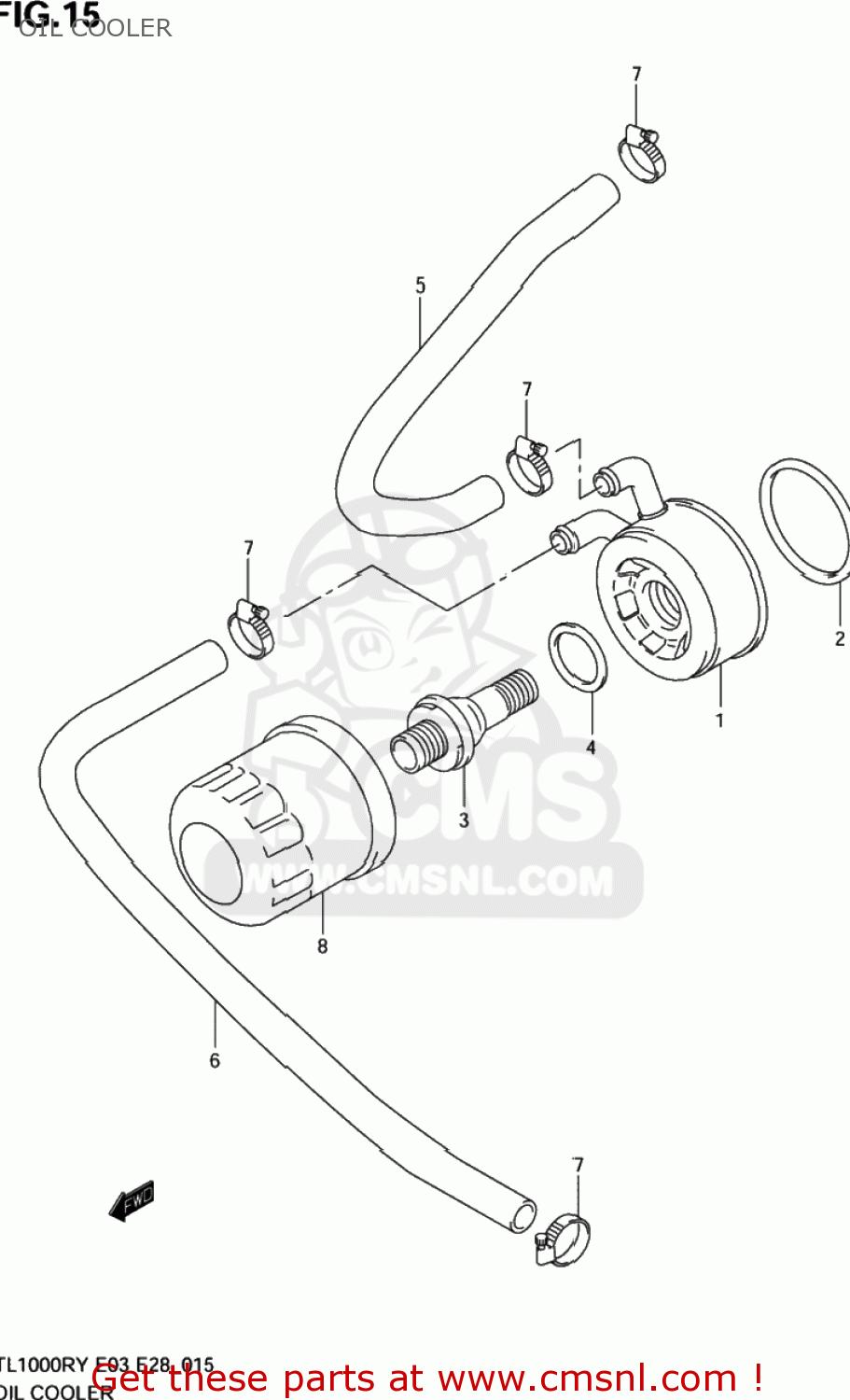

Oil cooler diagram TL1000R 2001 (K1) USA (E03)

OIL COOLER TL1000R 2001 (K1) USA (E03)

OIL COOLER TL1000R 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1660002FA0
ref: 1

COOLER ASSY,OIL

€ 471.50

2

0928064003
ref: 2

O RING(D:3.1,ID:63.9)

€ 5.00

3

1659102F00
ref: 3

BOLT,OIL COOLER UNION

€ 31.00

4

0918125160
ref: 4

SHIM(25X34X0.7)

€ 3.00

5

1646102FA0
ref: 5

HOSE,OIL COOLER INLET

€ 16.50

6

1647102FA0
ref: 6

HOSE,OIL COOLER OUTLET

€ 23.00

7

0940222511
ref: 7

CLAMP

€ 6.00

8

1651034E00
ref: 8
16510-07J00

FILTER ASSEMBLY,ENGINE OIL

€ 12.50
