FRAME COVER (MODEL Y)

TL1000R 2001 (K1) USA (E03)

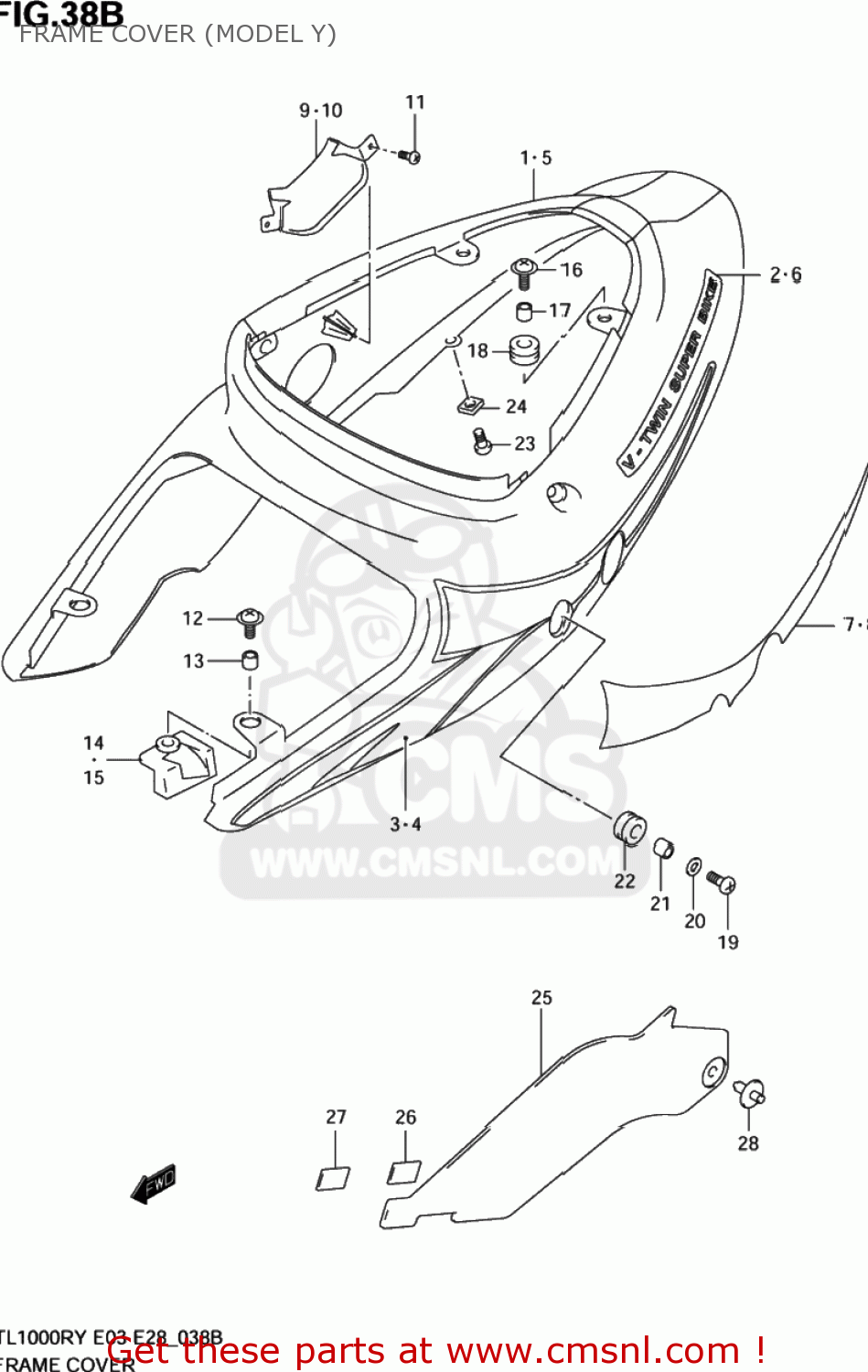

Frame cover (model y) diagram TL1000R 2001 (K1) USA (E03)

FRAME COVER (MODEL Y) TL1000R 2001 (K1) USA (E03)
FRAME COVER (MODEL Y) TL1000R 2001 (K1) USA (E03)
FRAME COVER (MODEL Y) TL1000R 2001 (K1) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
4711002FE03SP
ref: 1
COVER,FRAME
€ 709.00
2
6813102FA03SP
ref: 2
EMBLEM,FRAME COVER
€ 15.00
3
6813502FB0CA5
ref: 3
TAPE,FRAME COVER,R
€ 54.50
4
6814502FB0CA5
ref: 4
TAPE,FRAME COVER,L
€ 63.00
5
4711002FF0Z9X
ref: 5
COVER COMP,FRAME
€ 554.00
6
6813102FA0BZ9
ref: 6
EMBLEM,FRAME COVER
€ 15.50
7
6813502FC0Y9H
ref: 7
TAPE,FRAME COVER,R
€ 23.50
8
6814502FC0Y9H
ref: 8
TAPE,FRAME COVER,L
€ 23.50
9
4751102FA0
ref: 9
CAP,FRAME COVER HOLE,R
4751102FA0
€ 8.00
10
4752102FA0
ref: 10
CAP,FRAME COVER HOLE,L
4752102FA0
€ 7.50
11
0354104163
ref: 11
03541-0416A
SCREW
0354104163
€ 1.50
12
0913606022
ref: 12
SCREW(6X20)
0913606022
€ 2.50
13
0918006263
ref: 13
SPACER(6.5X9X9)
0918006263
€ 2.00
14
4716102FA0
ref: 14
CUSHION,FRAME COVER,R
4716102FA0
€ 10.50
15
4726102FA0
ref: 15
CUSHION,FRAME COVER,L
4726102FA0
€ 15.50
16
0913606105
ref: 16
SCREW(6X20)
0913606105
€ 2.00
17
0918006286
ref: 17
SPACER(6.5X10X9.4)
0918006286
€ 2.50
18
0932010045
ref: 18
CUSHION
0932010045
€ 3.50
19
0913906071
ref: 19
SCREW(6X20)
0913906071
€ 5.00
20
0916006054
ref: 20
WASHER(6.5X22X1.6)
0916006054
€ 2.00
21
0918006258
ref: 21
SPACER(6.5X9X6.7)
0918006258
€ 3.00
22
9443326B00
ref: 22
CUSHION
9443326B00
€ 4.00
23
0940907313
ref: 23
CLIP
0940907313
€ 3.50
24
0914805038
ref: 24
NUT
0914805038
€ 2.50
25
4732102FA0
ref: 25
COVER,FRAME,FRONT,RIGHT
€ 0.00
26
4732202FA0
ref: 26
FASTENER,NO.1
€ 0.00
27
4732302FA0
ref: 27
FASTENER,NO.2
€ 0.00
28
09409073306GS
ref: 28
CLIP(GRAY)
09409073306GS
€ 2.50
