SEAT TAIL BOX (MODEL W/X/Y)

TL1000R 2001 (K1) USA (E03)

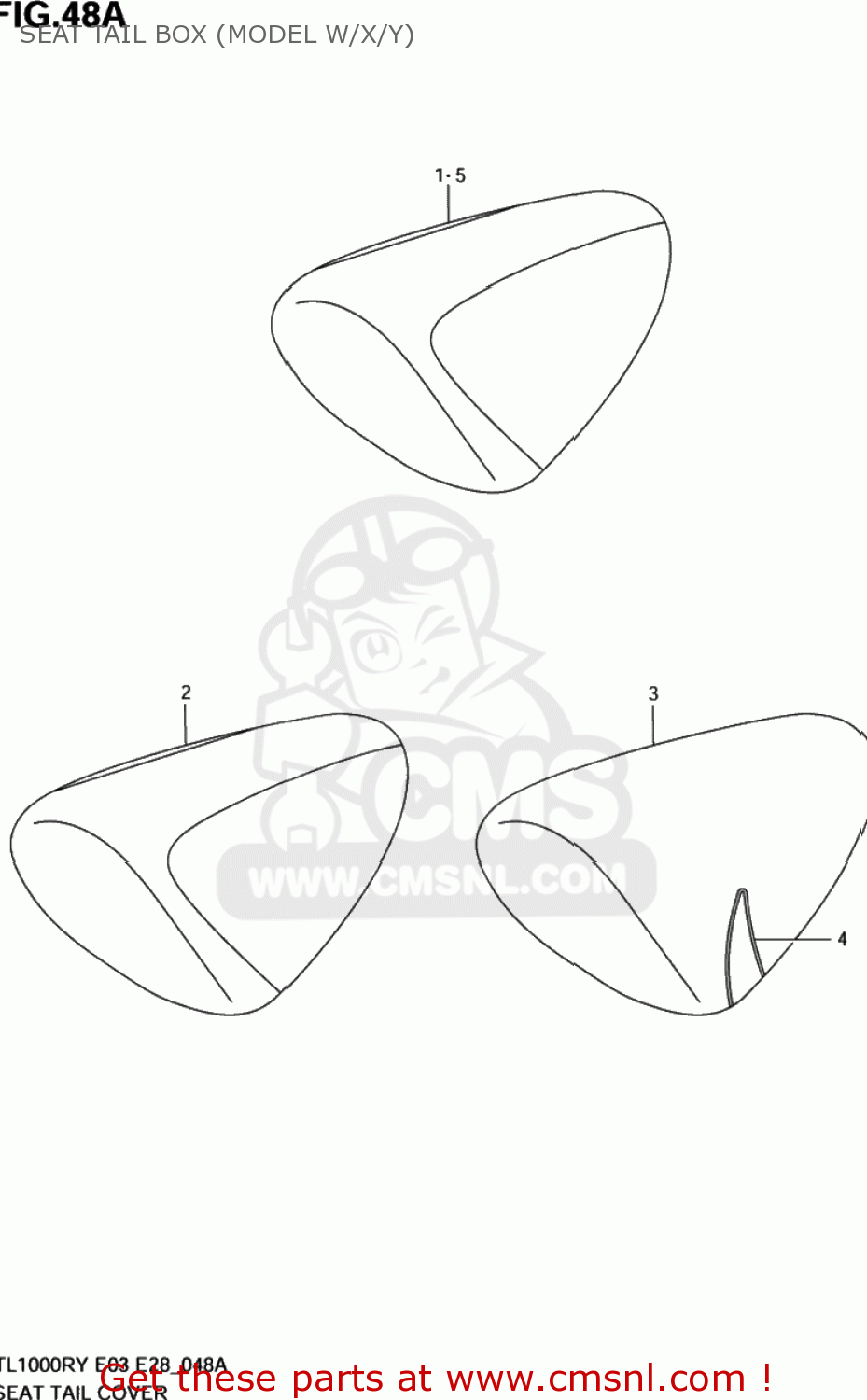

Seat tail box (model w/x/y) diagram TL1000R 2001 (K1) USA (E03)

SEAT TAIL BOX (MODEL W/X/Y) TL1000R 2001 (K1) USA (E03)

SEAT TAIL BOX (MODEL W/X/Y) TL1000R 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4555002FA03SP
ref: 1-1

BOX,SEAT TAIL

€ 217.50

1-2

4555002FA0E6R
ref: 1-2

BOX,SEAT TAIL

€ 201.00

2

4555002FA0N0W
ref: 2

BOX,SEAT TAIL

€ 193.50

3

4550002FA00JW
ref: 3

BOX ASSY,SEAT TAIL(WHITE)

€ 186.50

4

6816002FA03SP
ref: 4

TAPE SET,SEAT TAIL BOX

€ 18.00

5-1

4555002FA0M4R
ref: 5-1

BOX COMP,SEAT TAIL

€ 193.50

5-2

4555002FA0YCX
ref: 5-2

BOX,SEAT TAIL

€ 201.50
