TL1000R 2001 (K1) USA (E03)

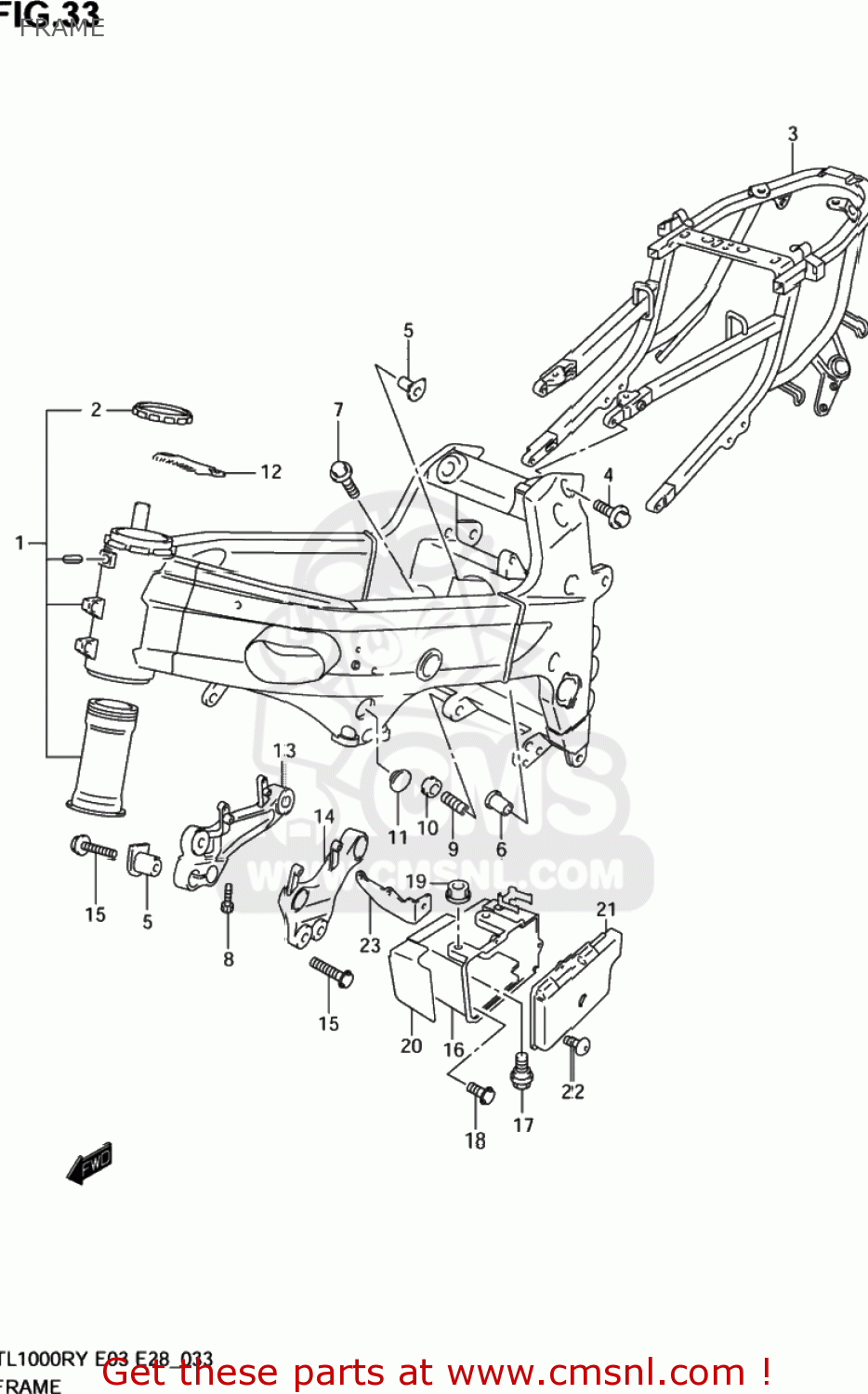

Frame diagram TL1000R 2001 (K1) USA (E03)
FRAME TL1000R 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4110102820
ref: 1
FRAME SET
€ 1,822.00
2
4262102FA0
ref: 2
NUT,STEERING STEM PIPE
€ 41.50
3
4120002FA0
ref: 3
RAIL,SEAT
€ 1,072.50
4
0910310296
ref: 4
BOLT(10X30)
€ 6.00
5
4191502FA0
ref: 5
SPACER,ENG MTG FR,R
€ 20.00
6
4193502FA0
ref: 6
SPACER,ENG MTG RR UP,R
€ 15.00
7
0155008253
ref: 7
01550-0825A
BOLT
€ 2.50
8
0713008253
ref: 8
07130-0825B
BOLT
€ 3.50
9
4192133E11
ref: 9
BOLT,CRANKCASE ADJUST
€ 46.00
10
4192233E10
ref: 10
NUT,CRANKCASE ADJUST
€ 14.50
11
0925006001
ref: 11
09250-06005
CAP
€ 2.00
12
4262202FA0
ref: 12
PLATE,STEERING STEM NUT LOCK
€ 8.50
13
4191102FA1
ref: 13
BRACKET,ENGINE MOUNTING FR,R
€ 184.00
14
4192102FA1
ref: 14
BRACKET,ENGINE MOUNTING FR,L
€ 184.00
15
0155010403
ref: 15
01550-1040A
BOLT
€ 4.00
16
4154002FA0
ref: 16
HOLDER,BATTERY
€ 234.00
17
0911108059
ref: 17
09111-08059-XC0
BOLT
€ 2.50
18-1
0911106066
ref: 18-1
BOLT(6X16)
€ 2.50
18-2
0911306001
ref: 18-2
BOLT(6X16)
€ 3.00
19
0831000053
ref: 19
08310-0005A
NUT
€ 2.50
20
4154802FA0
ref: 20
SHIELD,BATTERY HOLDER HEAT
€ 33.50
21
4156102FA0
ref: 21
CAP,BATTERY HOLDER
€ 31.50
22
0214205123
ref: 22
02142-0512A
SCREW 5X12
€ 1.50
23
4157002FA0
ref: 23
PLATE,BATTERY HOLDER LWR
€ 8.00
