STAND
TL1000R 2001 (K1) USA (E03)

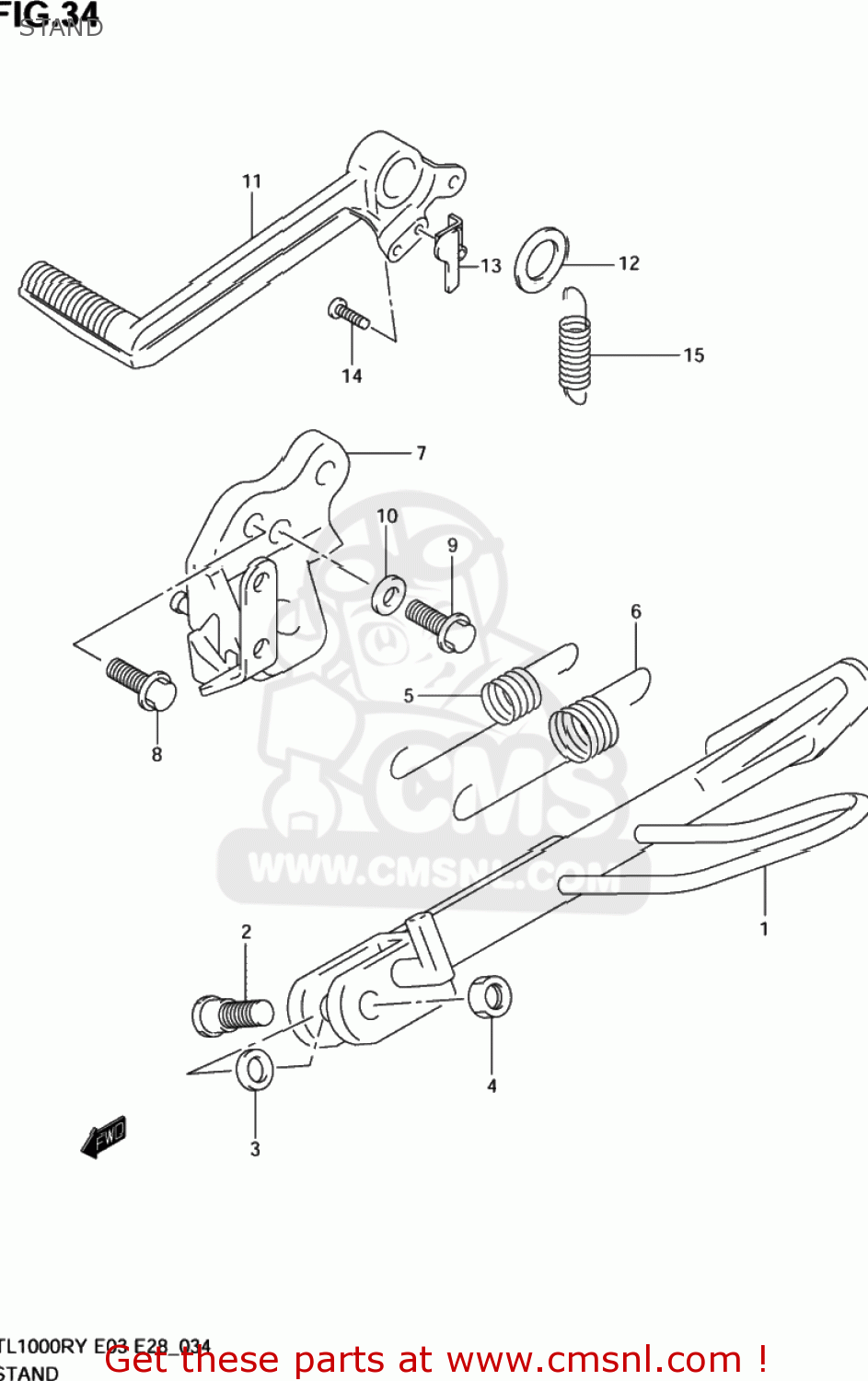

Stand diagram TL1000R 2001 (K1) USA (E03)
STAND TL1000R 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4231002FB0
ref: 1
STAND,PROP
€ 0.00
2
0911110027
ref: 2
BOLT(10X34)
€ 3.50
3
0822112224
ref: 3
SHIM
€ 2.00
4
0915910097
ref: 4
NUT
€ 5.00
5
0944314066
ref: 5
SPRING
€ 5.00
6
0944319012
ref: 6
SPRING
€ 5.50
7
4233002FA1
ref: 7
BRACKET,PROP STAND
€ 78.50
8
0712008303
ref: 8
07120-0830A
BOLT
€ 3.50
9
0712010303
ref: 9
07120-1030B
BOLT
€ 4.00
10
0916410010
ref: 10
WASHER
€ 6.50
11
4311133E00
ref: 11
PEDAL,BRAKE
€ 100.50
12
0916018022
ref: 12
WASHER(18X24X1)
€ 3.00
13
4356133E00
ref: 13
HOOK,RETURN SPRING
€ 6.50
14
0211205163
ref: 14
02112-0516A
SCREW
€ 2.00
15
0944311030
ref: 15
SPRING
€ 4.00
