CLUTCH

TM250 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)

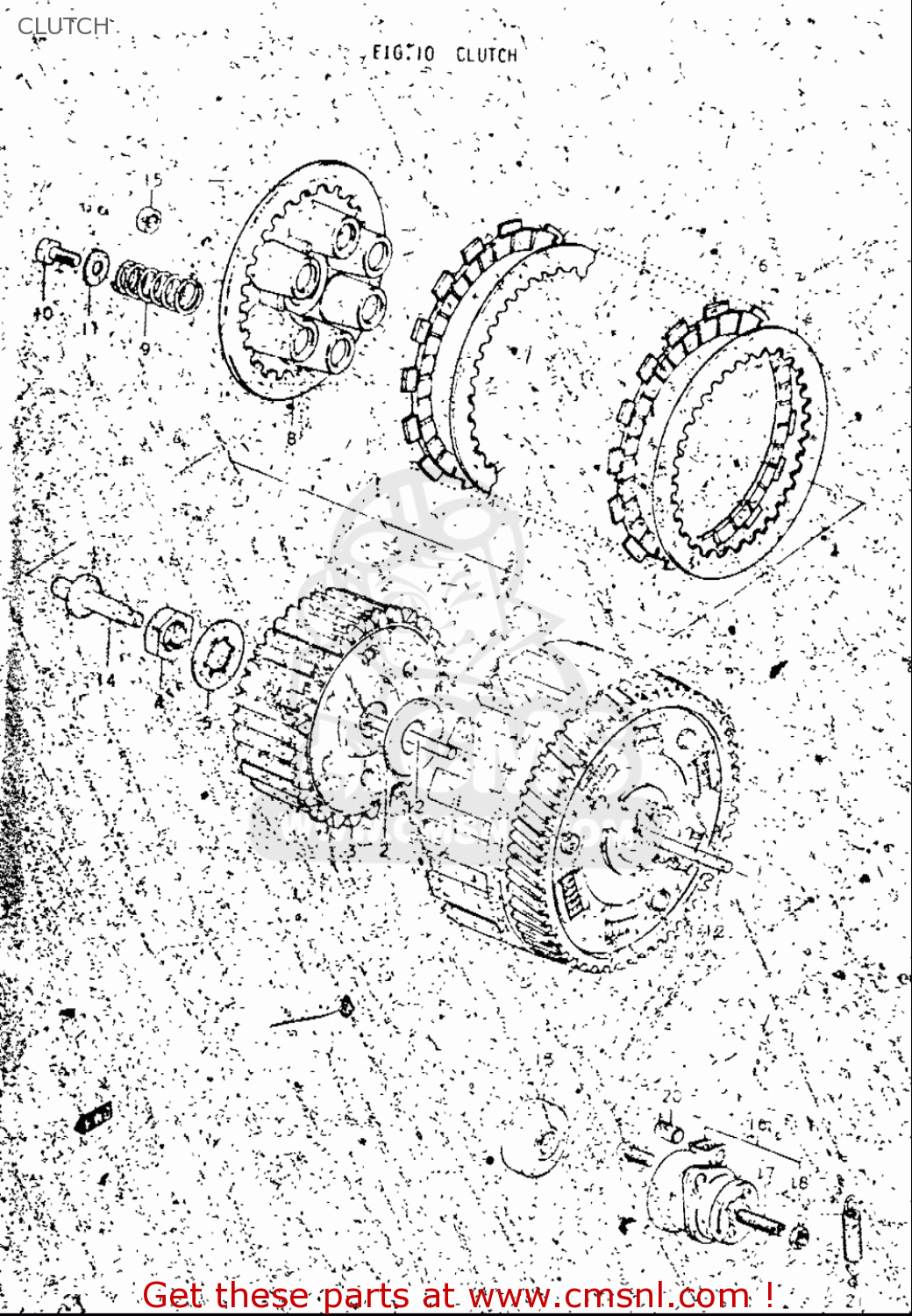

Clutch diagram TM250 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)

CLUTCH TM250 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)
CLUTCH TM250 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)
CLUTCH TM250 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-2
2120030003
ref: 1-2
GEAR ASSEMBLY,PRIMARY DRIVE
2120030003
€ 279.50
2
0916020015
ref: 2
WASHER(20X44X3)
0916020015
€ 4.50
4
0914020001
ref: 4
NUT
0914020001
€ 3.50
5
0916720009
ref: 5
WASHER,LOCK
0916720009
€ 3.00
6
2144237401
ref: 6
PLATE,CLUTCH DRIVE(T:3.5) (NAS)
2144237401
€ 11.50
7
2145131000
ref: 7
PLATE,CLUTCH DRIVEN(T:2.0) (NAS)
2145131000
€ 9.00
9
0944019027
ref: 9
SPRING
0944019027
€ 5.50
10
0150006167
ref: 10
BOLT
0150006167
€ 3.00
11
0916006066
ref: 11
WASHER(6.5X20X1.6)
0916006066
€ 2.00
12
2311130001
ref: 12
ROD,CLUTCH PUSH
2311130001
€ 13.50
13-1
0928506005
ref: 13-1
SEAL,OIL (6X30X5)
0928506005
€ 5.00
13-2
0928506005
ref: 13-2
SEAL,OIL (6X30X5)
0928506005
€ 5.00
15
0928410002
ref: 15
SEAL,OIL (10X17X5)
0928410002
€ 3.50
16
2320030002
ref: 16
SCREW ASSY,CLUTCH RELEASE
2320030002
€ 80.50
17
0913406010
ref: 17
SCREW(6X25)
0913406010
€ 3.00
18
0831000067
ref: 18
NUT
0831000067
€ 2.50
19
0211206127
ref: 19
SCREW
0211206127
€ 2.00
20
2322207000
ref: 20
PIECE,RELEASE ARM END
2322207000
€ 5.00
21
0944308001
ref: 21
SPRING
0944308001
€ 3.00
