TRANSMISSION

TM250 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)

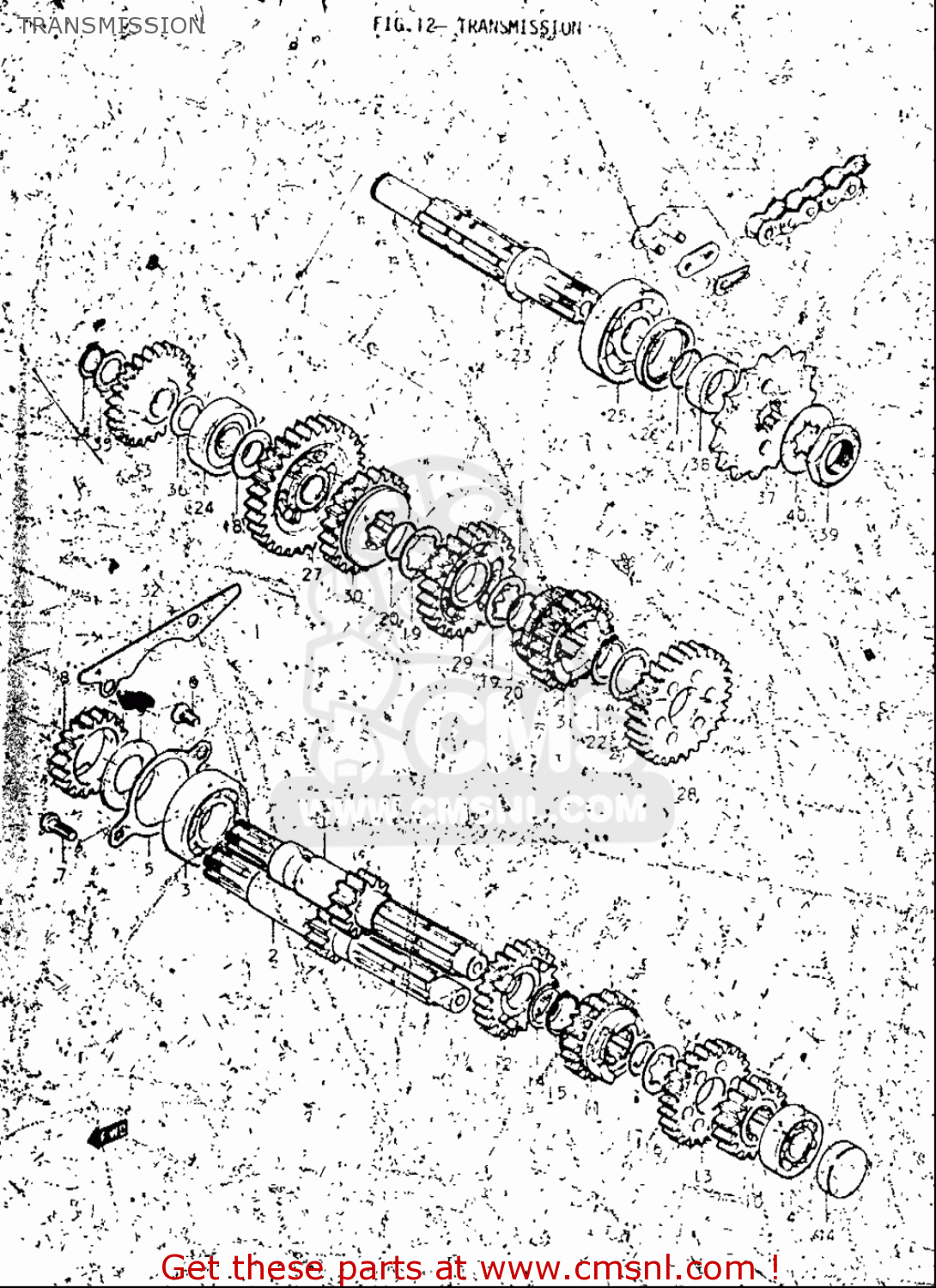

Transmission diagram TM250 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)

TRANSMISSION TM250 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)
TRANSMISSION TM250 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)
TRANSMISSION TM250 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)
prices are in EUR
ref
part #
description
quantity
3
0814362057
ref: 3
BEARING
0814362057
€ 24.50
4
0926217023
ref: 4
BEARING(17X40X12)
0926217023
€ 14.00
5
2474130100
ref: 5
PLATE,COUNTERSHAFT BEARING
2474130100
€ 6.50
6
0212206127
ref: 6
SCREW
0212206127
€ 3.00
7
0211206107
ref: 7
SCREW
0211206107
€ 1.50
9
0916025009
ref: 9
WASHER(25X41X3)
0916025009
€ 5.00
13-1
2425130100
ref: 13-1
GEAR,FIFTH DRIVE
€ 65.50
14
0918122139
ref: 14
SHIM(22X28X1)
0918122139
€ 4.00
15-1
0833131226
ref: 15-1
CIRCLIP
0833131226
€ 2.00
15-2
0833131226
ref: 15-2
CIRCLIP
0833131226
€ 2.00
16
0916722007
ref: 16
WASHER,LOCK
0916722007
€ 3.50
17
0938022003
ref: 17
CIRCLIP
0938022003
€ 13.50
18
0918117223
ref: 18
SHIM(17X30X1)
0918117223
€ 3.00
19
0916725004
ref: 19
WASHER
0916725004
€ 5.50
20
0938025006
ref: 20
RING,SNAP
0938025006
€ 2.00
21-1
0821125321
ref: 21-1
WASHER
0821125321
€ 3.00
21-2
0916025013
ref: 21-2
WASHER
0916025013
€ 2.50
22
0938025003
ref: 22
RING,SNAP
0938025003
€ 3.00
24
0814362037
ref: 24
BEARING
0814362037
€ 18.50
25
0926222025
ref: 25
BEARING(22X56X16)
0926222025
€ 63.50
26
0928332003
ref: 26
SEAL,OIL(32X42X6)
0928332003
€ 3.50
27-1
2431030001
ref: 27-1
GEAR,FIRST DRIVEN
2431030001
€ 40.00
31-1
2435130101
ref: 31-1
GEAR,5TH DRIVEN
2435130101
€ 87.50
31-2
2435130101
ref: 31-2
GEAR,5TH DRIVEN
2435130101
€ 87.50
33
2626030002
ref: 33
GEAR,KICK STARTER IDLE
2626030002
€ 46.00
34
0938017001
ref: 34
CIRCLIP
0938017001
€ 2.00
35
0821117251
ref: 35
WASHER
0821117251
€ 2.00
36
0916417002
ref: 36
WASHER
€ 0.00
37-2
2751118710
ref: 37-2
SPROCKET,ENGINE
2751118710
€ 39.00
37-4
2751118000
ref: 37-4
SPROCKET,ENGINE
2751118000
€ 27.50
38
0918022007
ref: 38
SPACER(22X32X11.5)
0918022007
€ 10.00
39
0914022003
ref: 39
NUT
0914022003
€ 10.00
40
0916722005
ref: 40
WASHER,LOCK
0916722005
€ 2.50
41
0928022003
ref: 41
O RING(D:1.7,ID:22)
0928022003
€ 2.50
42
2760016410
ref: 42
CHAIN,DRIVE #525TR-10
2760016410
€ 55.00
43
2762030110
ref: 43
JOINT ASSEMBLY,CHAIN
€ 0.00
44
0924130003
ref: 44
PLUG
0924130003
€ 6.50
