PISTON - CRANKSHAFT

TM250 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)

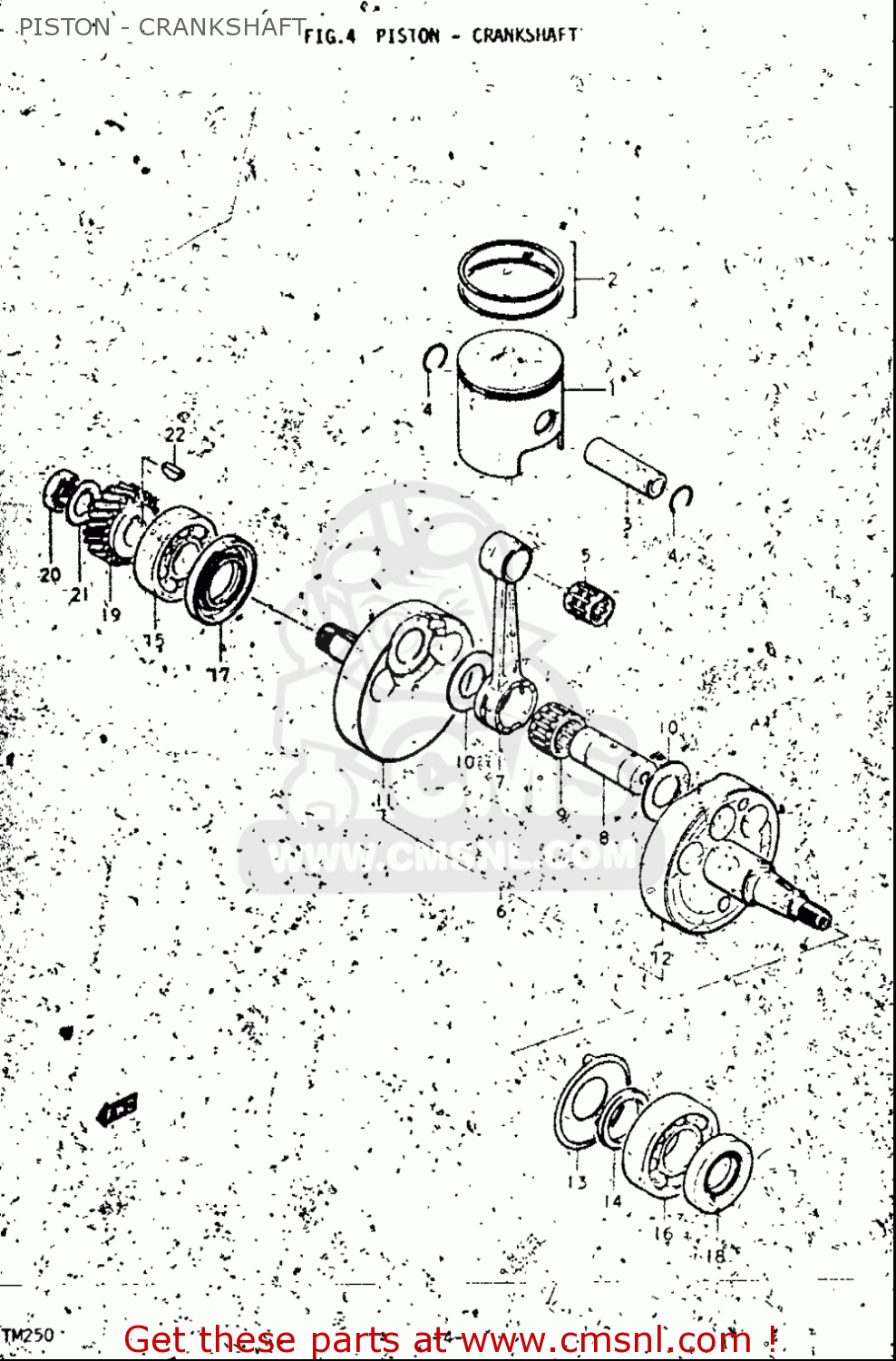

Piston - crankshaft diagram TM250 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)

prices are in EUR

ref

part #

description

quantity

2-1

1214030010
ref: 2-1

RING SET,PISTON

€ 70.00

2-2

1214030010050
ref: 2-2

RING SET,PISTON(OS:0.50)

€ 59.00

1215113A000A0
ref: 3

PIN,PISTON (18MM)

€ 14.50

0938118002A
ref: 4

CIRCLIP,PISTON PIN

€ 1.50

0926318021
ref: 5

BEARING(18X23X24)

€ 22.50

7-1

1216116400
ref: 7-1

ROD,CONNECTING

€ 107.50

7-2

1216116400
ref: 7-2

ROD,CONNECTING

€ 107.50

1221116400
ref: 8

PIN,CRANK

€ 56.50

0926325008
ref: 9

BEARING(25X31X20)

€ 17.00

0916025024
ref: 10

WASHER(25X40X1)

€ 7.00

0926225073
ref: 15

BEARING(25X62X17)

€ 21.50

0926930006
ref: 16

BEARING(30X72X19)

€ 48.00

0928335004
ref: 17

SEAL,OIL(35X62X9)

€ 19.50

0928330064
ref: 18

OIL SEAL (30X55X10)

€ 32.50

0914018002
ref: 20

NUT

€ 3.50

0916618001
ref: 21

WASHER

€ 3.00

0834131059
ref: 22

KEY

€ 3.00
