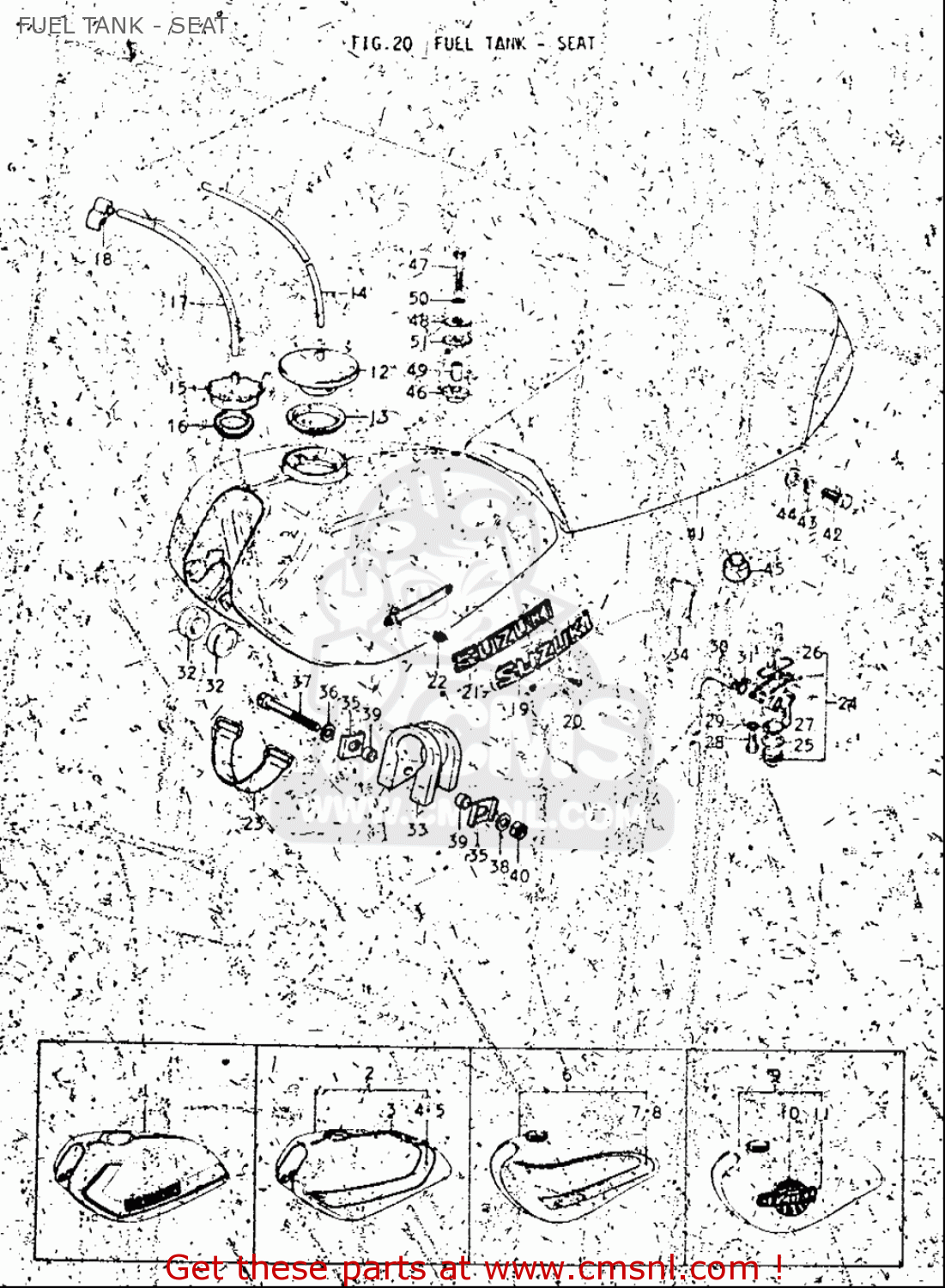

FUEL TANK - SEAT - TM250 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)

ref

part #

description

quantity

14

093525082300B
ref: 14

HOSE(5X8.2X2000)

€ 13.00

15

4420028300
ref: 15

CAP ASSY,FUEL TANK FILLER

€ 24.00

17

0935250823600
ref: 17

HOSE(5X8.2X600)

€ 13.00

18

4448632101
ref: 18

CLAMP,FUEL TANK BREATHER HOSE

€ 3.50

20

0212203067
ref: 20

SCREW

€ 1.00

22

0914804005
ref: 22

NUT

€ 2.50

23

0946200007
ref: 23

BAND

€ 5.00

24-1

4430013274
ref: 24-1

COCK ASSY,FUEL

€ 57.50

24-2

4430013274
ref: 24-2

COCK ASSY,FUEL

€ 57.50

25

4434628070
ref: 25

GASKET,FILTER (NAS)

€ 2.50

26-1

4430028817
ref: 26-1

FILTER SET,FUEL COCK

€ 26.50

27

4434428070
ref: 27

NET,STRAINER

€ 9.50

28-1

021620616C
ref: 28-1

SCREW

€ 2.50

28-2

021620616C
ref: 28-2

SCREW

€ 2.50

28-3

0912806057
ref: 28-3

BOLT(6X20)

€ 2.00

29

0916806023
ref: 29

GASKET(5.8X13X1.2) (NAS)

€ 2.00

30-1

0935250823600
ref: 30-1

HOSE(5X8.2X600)

€ 13.00

30-2

0935250903600
ref: 30-2

HOSE(5X9X600)

€ 28.50

30-3

0935250903600
ref: 30-3

HOSE(5X9X600)

€ 28.50

31

0940108401
ref: 31

CLIP

€ 1.50

32

0932910007
ref: 32

CUSHION

€ 3.00

37-1

0150006507
ref: 37-1

BOLT

€ 3.00

37-2

0150006127
ref: 37-2

BOLT

€ 2.00

38

083220106A
ref: 38

WASHER

€ 2.00

39

0918006246
ref: 39

SPACER(6.1X8X5.2)

€ 2.50

40

0831000067
ref: 40

NUT

€ 2.50

42

0150008207
ref: 42

BOLT

€ 3.00

43

0832101087
ref: 43

WASHER,LOCK

€ 2.00

44

0832201087
ref: 44

WASHER

€ 2.00

45

0932110001
ref: 45

CUSHION

€ 2.50

46

0932012013
ref: 46

CUSHION

€ 3.00

47

0150008353
ref: 47

BOLT

€ 3.50

48

0916008138
ref: 48

WASHER (8.5X30X2.3)

€ 2.00

49

0918008143
ref: 49

SPACER(8.2X12X17)

€ 5.00

50

0832101087
ref: 50

WASHER,LOCK

€ 2.00
