REAR SWINGING ARM

TM250 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)

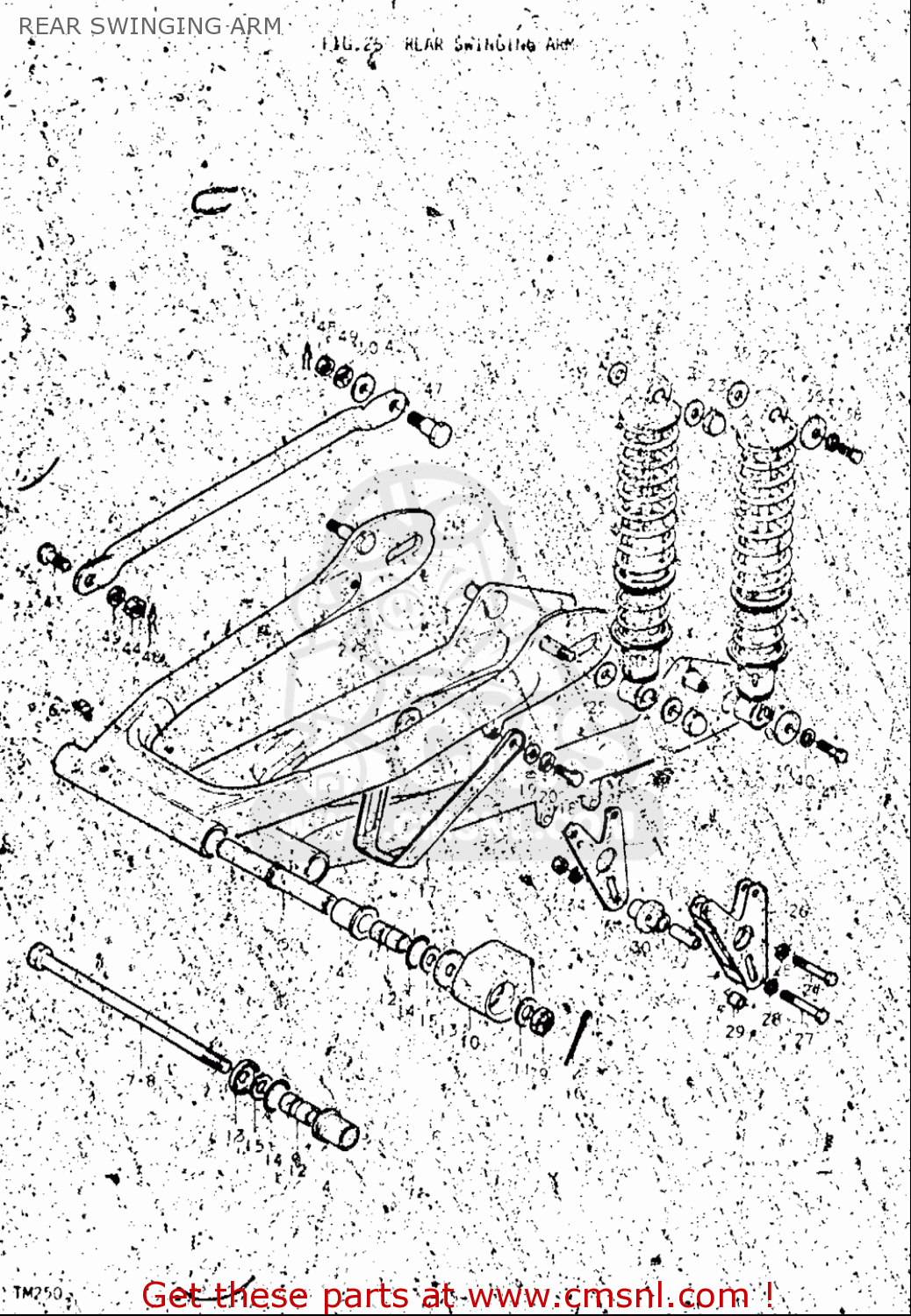

Rear swinging arm diagram TM250 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)

REAR SWINGING ARM TM250 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)
REAR SWINGING ARM TM250 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)
REAR SWINGING ARM TM250 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)
prices are in EUR
ref
part #
description
quantity
4-1
0930718002
ref: 4-1
BUSH
0930718002
€ 10.50
4-2
0930722003
ref: 4-2
BUSH
0930722003
€ 18.00
5-2
6128032000
ref: 5-2
SPACER,SWING ARM,CENTER
6128032000
€ 12.50
6
0835131008
ref: 6
NIPPLE,GREASE
0835131008
€ 10.50
9-1
0915912102
ref: 9-1
NUT
0915912102
€ 5.00
9-2
0914114004
ref: 9-2
NUT
0914114004
€ 5.00
10-1
6127332100
ref: 10-1
BUFFER,CHAIN TOUCH DEFLECTOR
6127332100
€ 7.00
11-1
0832201127
ref: 11-1
WASHER
0832201127
€ 2.00
11-2
0832201147
ref: 11-2
WASHER
0832201147
€ 2.00
12-1
6125128000
ref: 12-1
SPACER,RR SWGARM PIVOT
6125128000
€ 8.50
12-2
6125115001
ref: 12-2
SPACER
6125115001
€ 21.00
13-1
6126209200
ref: 13-1
COVER,SWGARM BUSH DUST SEAL
6126209200
€ 2.50
13-2
6126215000
ref: 13-2
COVER
6126215000
€ 84.00
14-1
0928024001
ref: 14-1
O RING(D:2,ID:24.5)
0928024001
€ 2.00
14-2
0928030001
ref: 14-2
O RING(D:3,ID:29.5)
0928030001
€ 2.00
15-1
0916012005
ref: 15-1
WASHER(12.5X24X2.3)
0916012005
€ 3.00
15-2
0916014009
ref: 15-2
WASHER(14.5X29X2.3)
0916014009
€ 3.50
16
0411120308
ref: 16
COTTER PIN
€ 1.00
18
0150006167
ref: 18
BOLT
0150006167
€ 3.00
19
083220106A
ref: 19
WASHER
083220106A
€ 2.00
20
0832101067
ref: 20
WASHER,LOCK
0832101067
€ 2.50
23
0831310107
ref: 23
NUT
0831310107
€ 2.50
24
0832201127
ref: 24
WASHER
0832201127
€ 2.00
25
0916010127
ref: 25
WASHER (10.5X24X2.3)
0916010127
€ 2.00
27
0150006553
ref: 27
BOLT
€ 2.00
28
0832101067
ref: 28
WASHER,LOCK
0832101067
€ 2.50
29
0918006010
ref: 29
SPACER(6.5X12X6.9)
0918006010
€ 2.50
31
0915906018
ref: 31
NUT (6MM)
0915906018
€ 1.50
32
0918006056
ref: 32
SPACER
0918006056
€ 1.50
34
0832201067
ref: 34
WASHER
0832201067
€ 2.00
35-1
0916012070
ref: 35-1
WASHER(12X16X0.8)
€ 2.50
35-2
0832201127
ref: 35-2
WASHER
0832201127
€ 2.00
36
0916006134
ref: 36
WASHER(6.5X24X1.6)
0916006134
€ 1.50
37
0832101067
ref: 37
WASHER,LOCK
0832101067
€ 2.50
38-1
0150006127
ref: 38-1
BOLT
0150006127
€ 2.00
38-2
0910012102
ref: 38-2
BOLT 12X50
€ 0.00
39-1
0916006134
ref: 39-1
WASHER(6.5X24X1.6)
0916006134
€ 1.50
39-2
0832201127
ref: 39-2
WASHER
0832201127
€ 2.00
40
0832101067
ref: 40
WASHER,LOCK
0832101067
€ 2.50
41-1
0150006127
ref: 41-1
BOLT
0150006127
€ 2.00
41-2
0910012111
ref: 41-2
BOLT(12X33)
0910012111
€ 3.00
43-2
0911108012
ref: 43-2
BOLT(8X22.5)
0911108012
€ 3.00
44
0914008008
ref: 44
NUT
0914008008
€ 1.50
45
0832101087
ref: 45
WASHER,LOCK
0832101087
€ 2.00
46-1
0938406001
ref: 46-1
RETAINER,SNAP
0938406001
€ 2.50
46-2
0938510005
ref: 46-2
CLIP
0938510005
€ 1.50
47-2
0911110009
ref: 47-2
BOLT(10X32.5)
0911110009
€ 5.00
48
0831000107
ref: 48
NUT
0831000107
€ 2.50
49
0832101107
ref: 49
WASHER,LOCK
0832101107
€ 2.00
50
0916012088
ref: 50
WASHER(12.5X24X1.6)
0916012088
€ 2.00
51-1
0938408001
ref: 51-1
SPRING,RETAINER
0938408001
€ 3.00
51-2
0938510005
ref: 51-2
CLIP
0938510005
€ 1.50
