Buy Suzuki TM Parts Online


CLUTCH

TM250 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)

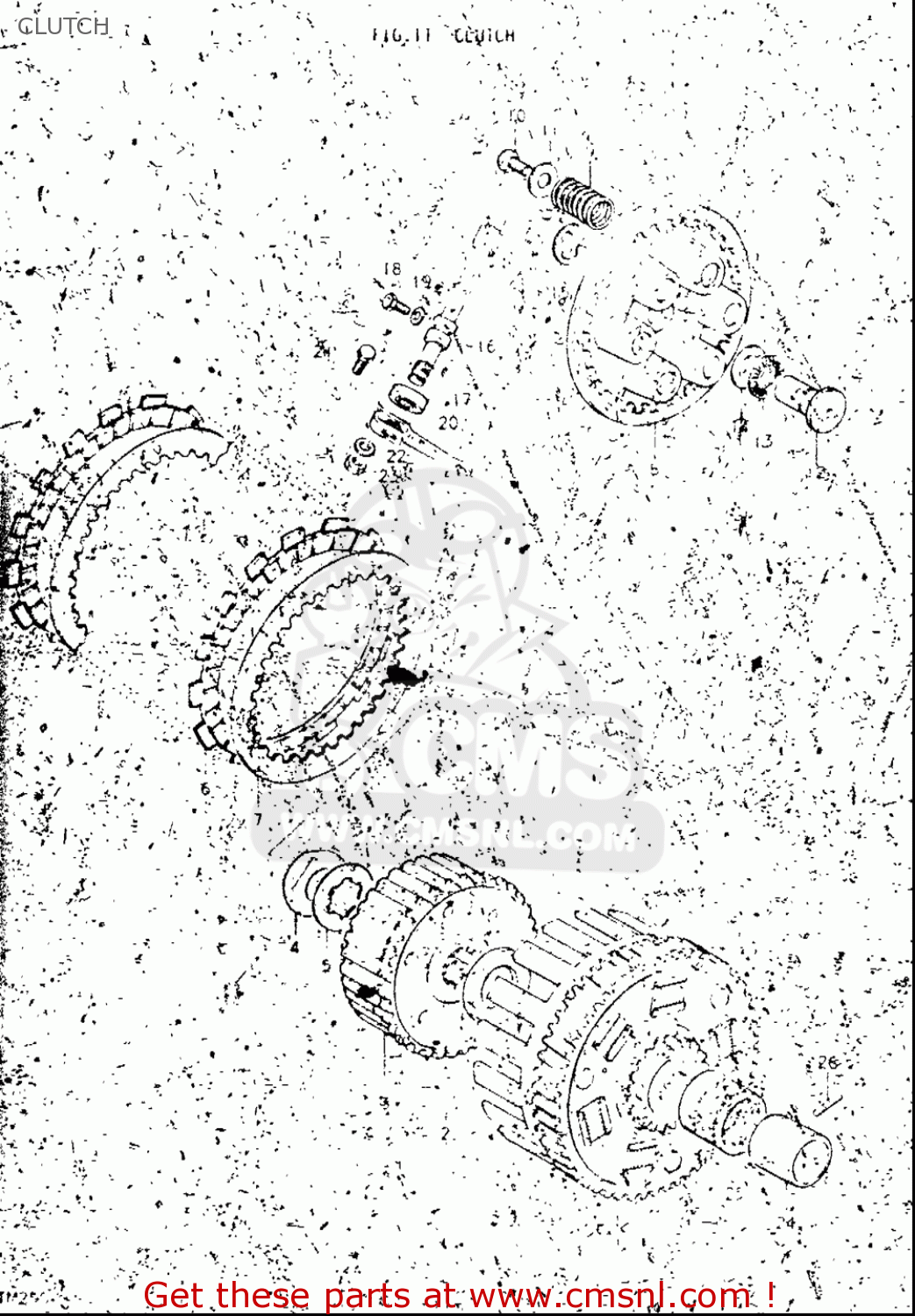

Clutch diagram TM250 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)

CLUTCH TM250 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)
CLUTCH TM250 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)
CLUTCH TM250 1972 1973 1974 1975 (J) (K) (L) (M) USA (E03)
prices are in EUR
ref
part #
description
quantity
2
0916020015
ref: 2
WASHER(20X44X3)
0916020015
€ 4.50
4
0914020001
ref: 4
NUT
0914020001
€ 3.50
5
0916720009
ref: 5
WASHER,LOCK
0916720009
€ 3.00
6
2144237401
ref: 6
PLATE,CLUTCH DRIVE(T:3.5) (NAS)
2144237401
€ 11.50
7
2145131000
ref: 7
PLATE,CLUTCH DRIVEN(T:2.0) (NAS)
2145131000
€ 9.00
8
2146214301
ref: 8
DISC,CLUTCH PRESSURE
2146214301
€ 51.00
9
0944019027
ref: 9
SPRING
0944019027
€ 5.50
10
0150006167
ref: 10
BOLT
0150006167
€ 3.00
11
0916006066
ref: 11
WASHER(6.5X20X1.6)
0916006066
€ 2.00
12
2316516502
ref: 12
RACK,CLUTCH RELEASE
2316516502
€ 23.00
13
0926315003
ref: 13
BEARING(15X28X2)
0926315003
€ 7.00
14
0916015045
ref: 14
WASHER(15.5X28X1)
0916015045
€ 4.00
15
083321112A
ref: 15
E RING
083321112A
€ 2.00
16
2326116501
ref: 16
PINION,CLUTCH RELEASE
2326116501
€ 40.50
17
0928512006
ref: 17
SEAL,OIL (12X22X9)
0928512006
€ 7.00
18
0913506009
ref: 18
BOLT(6X12)
0913506009
€ 2.00
19
0832201067
ref: 19
WASHER
0832201067
€ 2.00
20
2327145400
ref: 20
ARM,CLUTCH RELEASE
2327145400
€ 31.50
21
0150006257
ref: 21
BOLT
0150006257
€ 2.00
22
0832201067
ref: 22
WASHER
0832201067
€ 2.00
23
0831000067
ref: 23
NUT
0831000067
€ 2.50
24
0918023001
ref: 24
SPACER
0918023001
€ 10.50
25
0926330003
ref: 25
BEARING
€ 37.50
