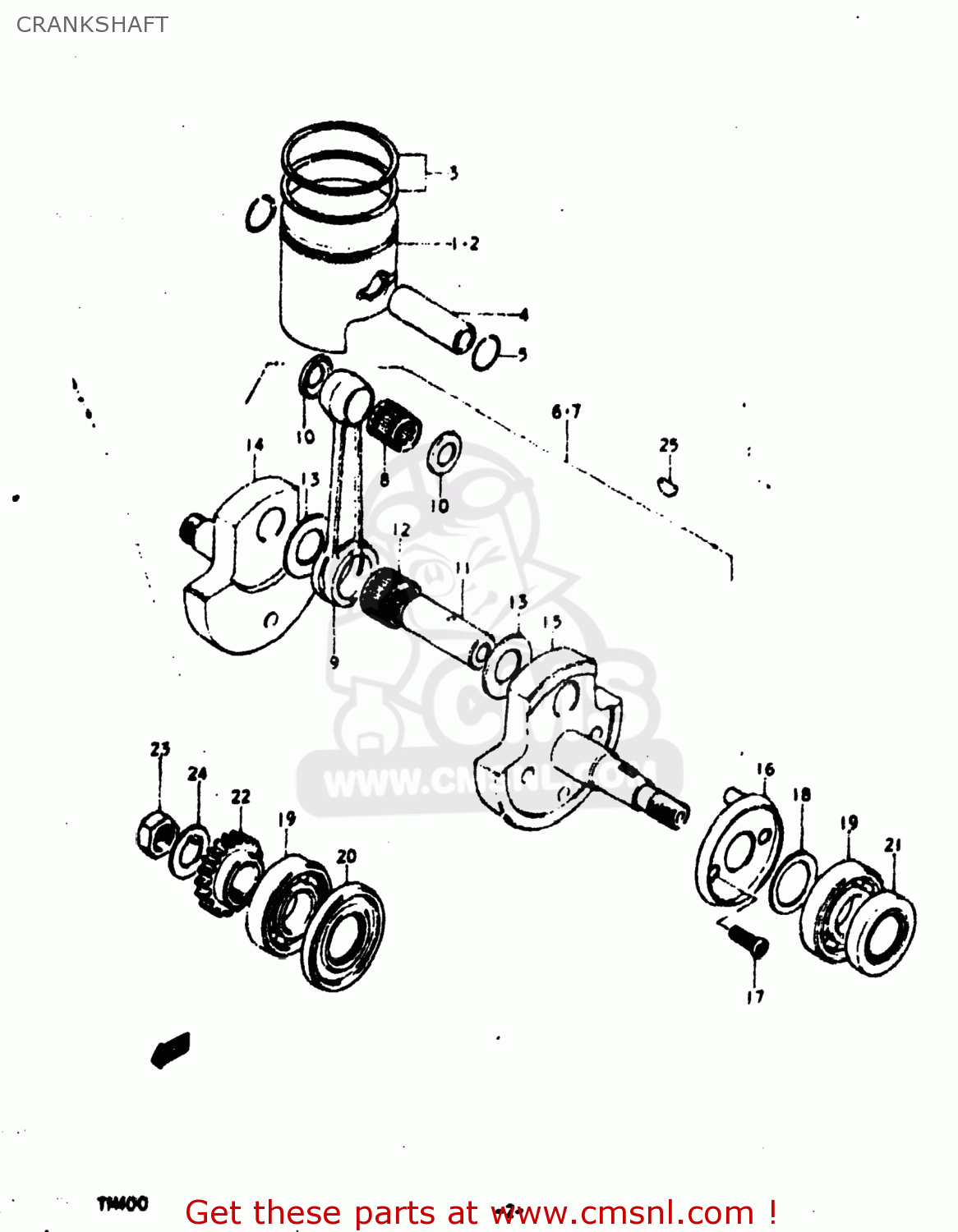

CRANKSHAFT

ref

part #

description

quantity

1-1

1211016500
ref: 1-1
12110-16501

PISTON

€ 196.00

1-2

1211016501
ref: 1-2

PISTON (82.00MM)

€ 196.00

2-1

1211016720
ref: 2-1

PISTON

€ 75.00

2-2

1211016730
ref: 2-2
12110-16501-050

PISTON

€ 75.00

3-1

1214016510
ref: 3-1

RING SET,PISTON

€ 54.50

3-2

1214016700
ref: 3-2
12140-16510-050

RING SET,PISTON

€ 72.00

4

1215116500
ref: 4
12151-32400

PIN,PISTON

€ 41.50

5

0938120001
ref: 5
09381-20004

CIRCLIP

€ 2.00

6-1

1200116825
ref: 6-1

CRANKSHAFT SET

€ 87.00

6-2

1220016870
ref: 6-2

CRANKSHAFT ASSEMBLY

€ 87.00

7

1220016501
ref: 7

CRANKSHAFT ASSEMBLY

€ 0.00

8

0926320012
ref: 8
09263-20034

BEARING

€ 15.50

9-1

1216116500
ref: 9-1

CONNECTING ROD

€ 58.50

9-2

1216132200
ref: 9-2

ROD,CONNECTING

€ 136.00

10

0916920001
ref: 10

WASHER

€ 7.00

11

1221116500
ref: 11

PIN,CRANK

€ 58.50

12-1

0926326002
ref: 12-1

BEARING

€ 11.50

12-2

0926326003
ref: 12-2

ROLLER BEARING (26X33X2

€ 22.00

13-1

0916026001
ref: 13-1

WASHER

€ 2.00

13-2

0916026004
ref: 13-2

WASHER(26X32X1.5)

€ 4.50

14

1222116500
ref: 14

CRANKSHAFT

€ 0.00

15

1226116500
ref: 15

CRANKSHAFT,LEFT

€ 0.00

16

1251116500
ref: 16

PLATE,CRANKSHAFT OIL GUIDE

€ 5.50

17

0212105108
ref: 17
02122-05107

SCREW

€ 1.00

18

0821230403
ref: 18

WASHER

€ 0.00

19

0811363060
ref: 19
09262-30077

BEARING

€ 47.50

20-1

0928340004
ref: 20-1
09289-40004

OIL SEAL

€ 15.50

20-2

0928940004
ref: 20-2

SEAL,OIL(40X72X9)

€ 15.50

21

0928330011
ref: 21
09283-30064

OIL SEAL

€ 32.50

22-1

2111116500
ref: 22-1

GEAR,PRIMARY DRIVE

€ 13.00

22-2

2111132000
ref: 22-2

GEAR,PRIMARY DRIVE

€ 21.00

23

0914020007
ref: 23

NUT (20MM)

€ 6.00

24

0916620004
ref: 24

WASHER

€ 2.00

25

0942107001
ref: 25

KEY

€ 2.50
