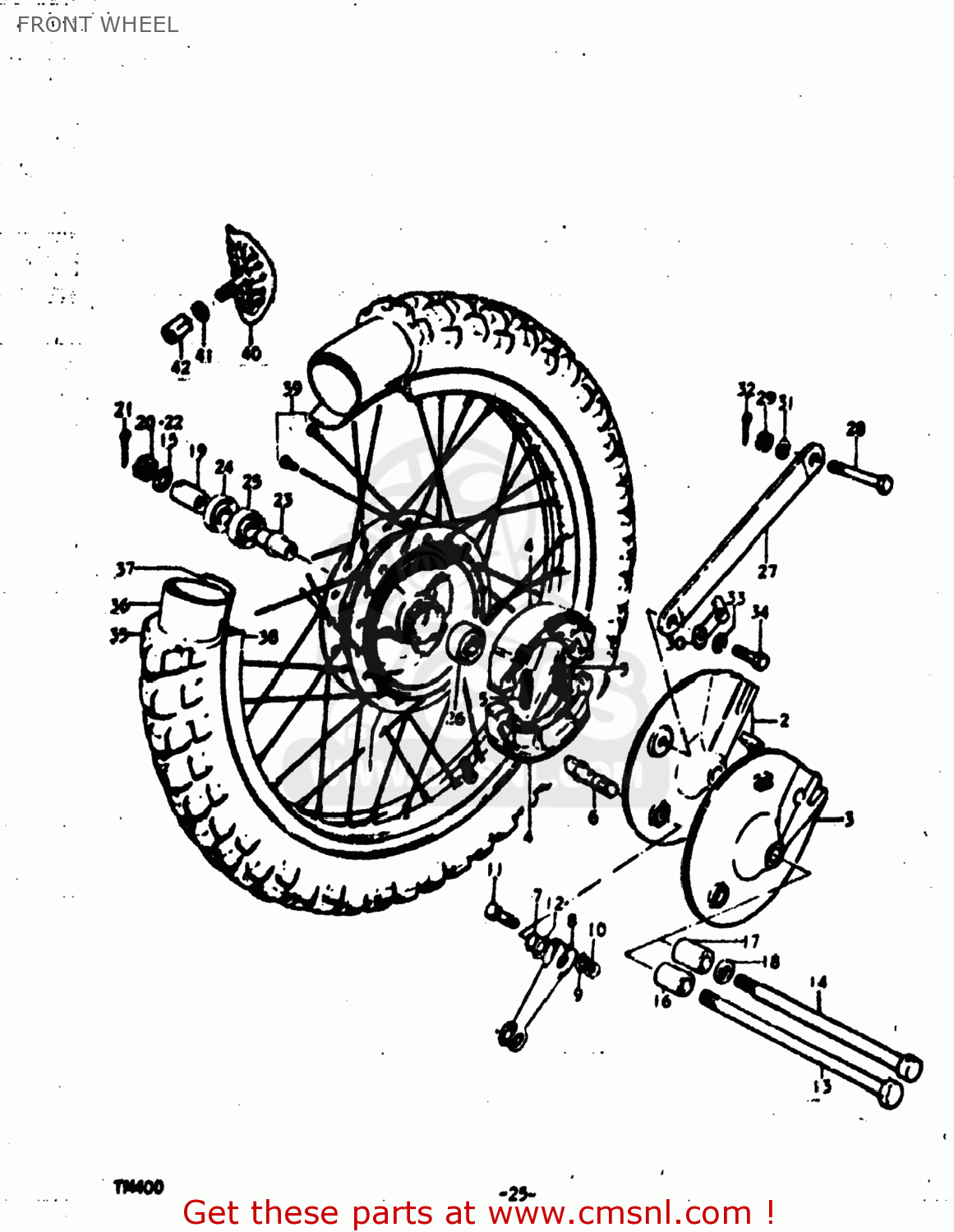

FRONT WHEEL

ref

part #

description

quantity

1

5411016501
ref: 1
54110-16502

HUB,FRONT

€ 93.50

2

5421016500
ref: 2

PANEL,FRONT HUB

€ 35.00

3-1

5421032100
ref: 3-1

PANEL,FRONT HUB

€ 54.50

3-2

5421032101
ref: 3-2

PANEL,FRONT HUB

€ 54.50

4-1

5441007001
ref: 4-1
54401-07810

SHOE,BRAKE

€ 35.00

4-2

5441007002
ref: 4-2
54401-07810

SHOE,BRAKE

€ 35.00

5

0944307001
ref: 5
09443-07025

SPRING(L:34)

€ 2.50

6-1

5444120000
ref: 6-1

CAM,FRONT BRAKE

€ 19.50

6-2

5444107001
ref: 6-2

CAM,FRONT BRAKE

€ 19.50

6-3

5444132100
ref: 6-3

CAM,FRONT BRAKE

€ 19.50

6-4

5444132101
ref: 6-4

CAM,FRONT BRAKE

€ 19.50

6-5

5444101002
ref: 6-5

CAM,FR BRAKE

€ 19.50

7

0928012001
ref: 7

O RING(D:2.5,ID:11.4)

€ 2.50

8

5445116500
ref: 8

LEVER,FRONT BRAKE CAM

€ 13.00

9

0832221068
ref: 9
08322-01067

WASHER

€ 2.00

10

0831111068
ref: 10
08310-00067

NUT

€ 2.50

11

0910006050
ref: 11
09100-06150

BOLT

€ 1.50

12

0916012011
ref: 12

WASHER(12.5X20X1)

€ 1.50

13

5471116501
ref: 13
54711-16504

AXLE,FRONT

€ 29.50

14

5471116502
ref: 14
54711-16504

AXLE,FRONT

€ 29.50

15

0832221128
ref: 15
08322-01127

WASHER

€ 2.00

16

5472116501
ref: 16

NUT,FRONT AXLE

€ 6.50

17

0918012063
ref: 17

SPACER(12X20X34.5)

€ 4.50

18

0918012058
ref: 18

SPACER

€ 2.00

19

5474016501
ref: 19

SPACER,FRONT AXLE,RIGHT

€ 9.00

20

0914112002
ref: 20

NUT (12MM)

€ 4.00

21

0411130308
ref: 21
04111-3030A

COTTER PIN

€ 1.50

22

0831431128
ref: 22
08314-3112A

NUT 12MM

€ 2.00

23

5473007000
ref: 23

SPACER,FRONT HUB BEARING

€ 9.00

24

0928418001
ref: 24

OIL SEAL(17X38X5)

€ 12.50

25

0811363010
ref: 25

BEARING

€ 9.50

26

0814363010
ref: 26
08143-63017

BEARING, RH

€ 14.50

27

5431116500
ref: 27

LINK, FRONT TORQUE

€ 0.00

28

0910108008
ref: 28

BOLT

€ 1.50

29

0831441088
ref: 29
08314-4008B

NUT 8MM

€ 2.50

30

5331216501
ref: 30

MUD FLAP,FRONT FENDER,LEFT

€ 3.50

31

0832211088
ref: 31
08322-01087

WASHER

€ 2.00

31

0832211088
ref: 31
08322-01087

WASHER

€ 2.00

32

0938508001
ref: 32

CLIP

€ 1.00

33

0832121088
ref: 33
08321-01087

LOCK WASHER

€ 2.00

34

0112208208
ref: 34
01500-08207

BOLT

€ 3.00

35

5510016570
ref: 35

TIRE,FRONT

€ 0.00

36-1

5520015010
ref: 36-1
55200-44610

TUBE,INNER

€ 41.00

36-2

5520016510
ref: 36-2

TUBE

€ 32.50

37

5526116571
ref: 37

PROTECTOR,WHEEL,INNER

€ 1.50

38-1

5531116501
ref: 38-1

RIM,FRONT WHEEL

€ 83.00

38-2

5531128322
ref: 38-2

RIM,FRONT WHEEL

€ 83.00

39

5530116823
ref: 39
55300-41811

SPOKE SET

€ 52.00

40

6527030000
ref: 40
65270-43D00

STOPPER,BEAD

€ 30.50

41

0832221088
ref: 41
08322-01087

WASHER

€ 2.00

42

0915908016
ref: 42

NUT

€ 2.00
