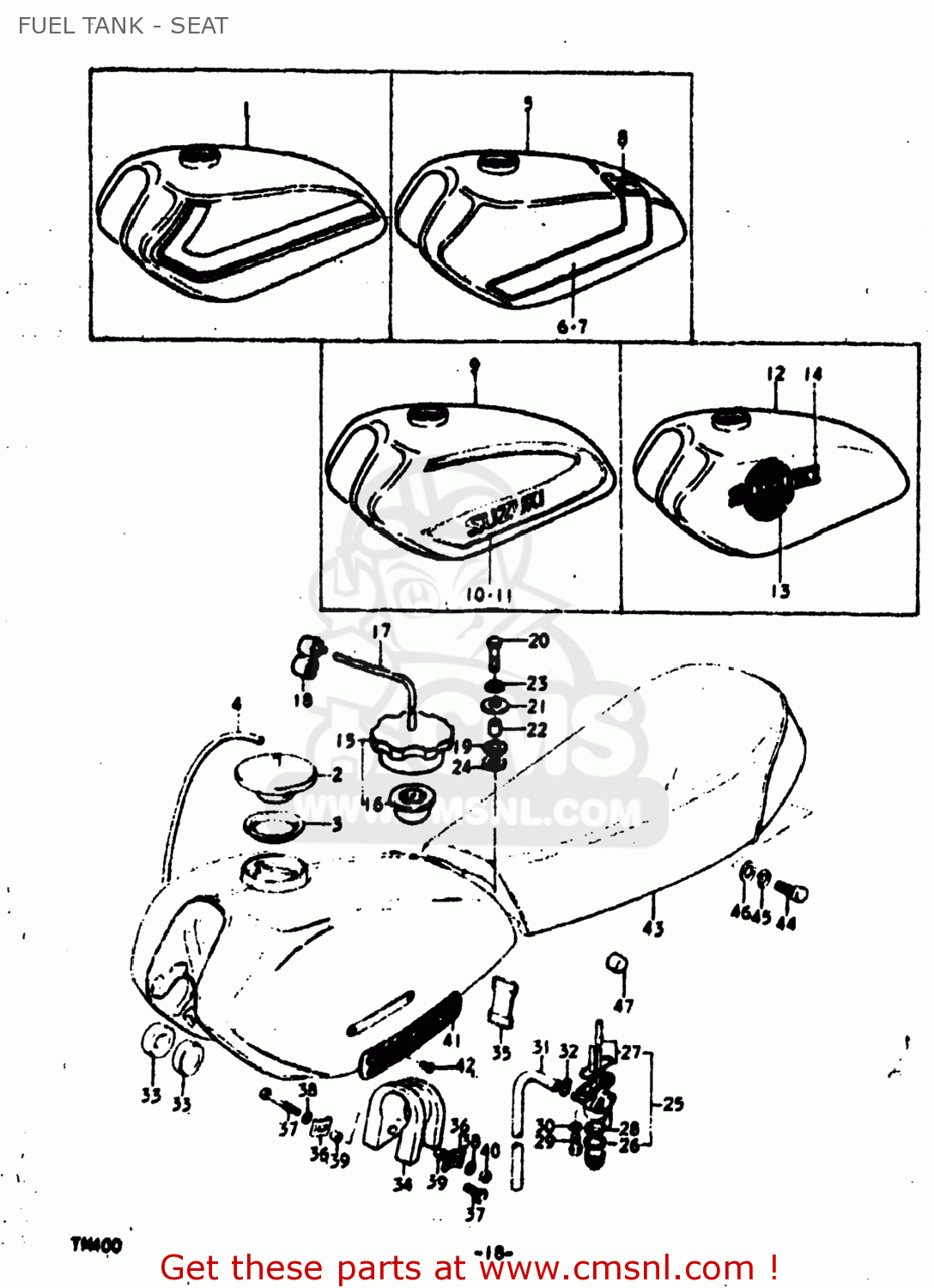

FUEL TANK - SEAT - TM400 1973 (K) USA (E03)

ref

part #

description

quantity

1-1

4410030860584
ref: 1-1

TANK ASSEMBLY,FUEL

€ 0.00

1-2

4410030850184
ref: 1-2
44110-30300-737

TANK ASSEMBLY,FUEL

€ 89.00

2

4421016500
ref: 2

CAP SET,FUEL TANK

€ 9.00

3

4424811000
ref: 3

GASKET,FUEL TANK CAP (NAS)

€ 3.00

4

0934305043
ref: 4
09352-50823-00B

HOSE

€ 13.00

5

4411032100163
ref: 5

TANK ASSEMBLY,FUEL

€ 0.00

6

6811532100722
ref: 6
68100-32810-722

TAPE,FUEL TANK

€ 0.00

7

6812532100722
ref: 7
68100-32810-722

TAPE,FUEL TANK

€ 0.00

8

6811816500722
ref: 8

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

9

4411032600163
ref: 9

TANK ASSEMBLY,FUEL

€ 0.00

10

6811532101722
ref: 10
68100-32820-722

TAPE,FUEL TANK

€ 0.00

11

6812532101722
ref: 11
68100-32820-722

TAPE,FUEL TANK

€ 0.00

12

4411032610163
ref: 12

TANK ASSEMBLY,FUEL

€ 0.00

13

6811526620722
ref: 13
68115-26621-722

TAPE,FUEL TANK

€ 7.00

14

6811126610019
ref: 14
68111-27610-019

EMBLEM

€ 7.50

15

4420028300
ref: 15

CAP ASSY,FUEL TANK FILLER

€ 24.00

16

4424828300
ref: 16

GASKET,FUEL TANK CAP (NAS)

€ 2.50

17

0934305031
ref: 17
44420-44AR0

HOSE

€ 13.00

18

4448632100
ref: 18
44486-32101

CLAMP,FUEL

€ 3.50

19

0932012013
ref: 19

CUSHION

€ 3.00

20

0112208358
ref: 20
01500-0835B

** SUPERSEEDED

€ 3.50

21

0916008001
ref: 21
09160-08503

WASHER

€ 2.00

22

0918008049
ref: 22
09180-08143

SPACER

€ 5.00

23

0832121088
ref: 23
08321-01087

LOCK WASHER

€ 2.00

24

0932012020
ref: 24

CUSHION

€ 2.50

25-1

4430022570
ref: 25-1
44300-13274

COCK ASSEMBLY,FUEL

€ 57.50

25-2

4430022571
ref: 25-2
44300-13274

COCK ASSEMBLY,FUEL

€ 57.50

26

4434628070
ref: 26

GASKET,FILTER (NAS)

€ 2.50

27

4430028817
ref: 27

FILTER SET,FUEL COCK

€ 26.50

28

4434428070
ref: 28

NET,STRAINER

€ 9.50

29-1

0912806009
ref: 29-1
01500-0635A

SCREW

€ 2.50

29-2

0912806006
ref: 29-2
09128-06057

BOLT(6X20)

€ 2.00

30-1

0916106009
ref: 30-1

WASHER

€ 0.00

30-2

0916806010
ref: 30-2
09168-06023

GASKET

€ 2.00

31-1

0934305031
ref: 31-1
44420-44AR0

HOSE

€ 13.00

31-2

0934305025
ref: 31-2
09343-05137

HOSE

€ 28.50

31-3

0934305018
ref: 31-3
09343-05137

HOSE

€ 28.50

32

0940108401
ref: 32

CLIP

€ 1.50

33

0932910007
ref: 33

CUSHION

€ 3.00

34

4454130000
ref: 34

CUSHION,FUEL TANK,REAR

€ 8.00

35

0946200053
ref: 35

BAND

€ 0.00

36

4454930000
ref: 36

CLIP

€ 2.50

37-1

0111206128
ref: 37-1
01500-06127

BOLT

€ 2.00

37-2

0111206508
ref: 37-2
01500-06507

BOLT

€ 3.00

38

0832211068
ref: 38
08322-0106B

WASHER 6MM

€ 2.00

39

0918006032
ref: 39
09180-06246

SPACER (6.1X8X5.2)

€ 2.50

40

0831111068
ref: 40
08310-00067

NUT

€ 2.50

41

6811118600
ref: 41

EMBLEM

€ 31.00

42

0213103067
ref: 42
02122-03067

SCREW

€ 1.00

43-1

4510016502442
ref: 43-1

SEAT ASSEMBLY

€ 0.00

43-2

4510028300403
ref: 43-2
45100-28301-865

SEAT ASSEMBLY

€ 96.00

43-3

4510028301403
ref: 43-3
45100-28301-865

SEAT ASSEMBLY

€ 96.00

44

0112208208
ref: 44
01500-08207

BOLT

€ 3.00

45

0832121068
ref: 45
08321-01067

LOCK WASHER

€ 2.50

46

0832221088
ref: 46
08322-01087

WASHER

€ 2.00

47

0932110002
ref: 47

CUSHION(11.5X22X20)

€ 2.00
