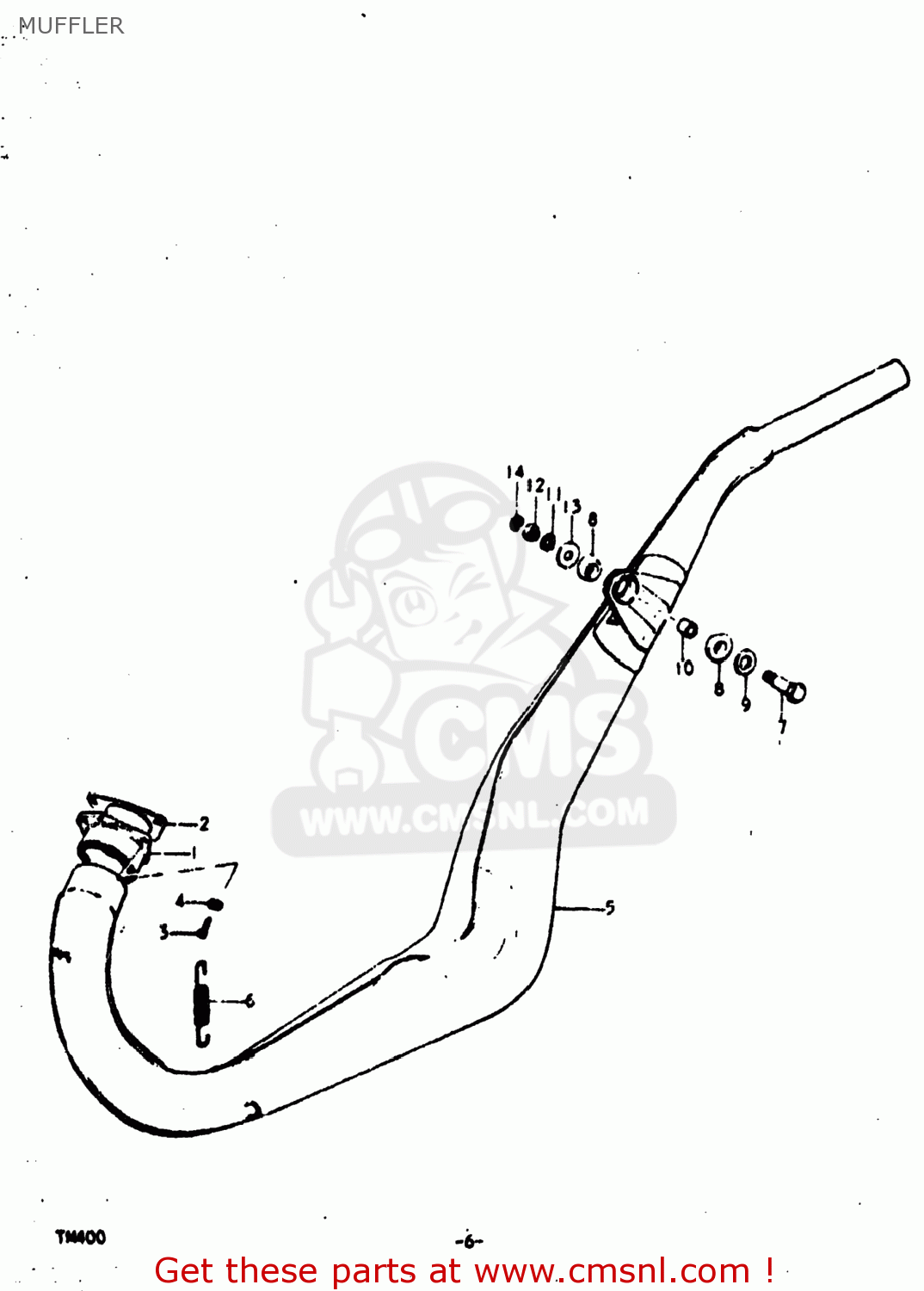

MUFFLER

ref

part #

description

quantity

1

1417016500
ref: 1

FLANGE,EXHAUST PIPE

€ 39.00

2

1418116500
ref: 2
14181-16501

GASKET,EXHAUST PIPE (MCA)

€ 9.50

3

0211206208
ref: 3
02112-06207

SCREW

€ 2.00

4

0832121068
ref: 4
08321-01067

LOCK WASHER

€ 2.50

5-1

1431032620
ref: 5-1
14310-32621

BODY,MUFFLER

€ 0.00

5-2

1431032621
ref: 5-2

BODY,MUFFLER

€ 0.00

6

1430332620
ref: 6

MUFFLER ASSEMBLY

€ 56.50

7

1451032620
ref: 7

PIPE,MUFFLER BAFFLE

€ 11.50

8

0832121068
ref: 8
08321-01067

LOCK WASHER

€ 2.50

9

0912806013
ref: 9

SCREW(6X8)

€ 1.50

10

0944311002
ref: 10

SPRING

€ 4.50

11

1477132600
ref: 11

CONNECTOR,MUFFLER

€ 4.50

12

0940240601
ref: 12

CLAMP

€ 2.00

13

0211206208
ref: 13
02112-06207

SCREW

€ 2.00

14-1

1447032000
ref: 14-1

BRACE,MUFFLER

€ 7.00

14-2

1447032001
ref: 14-2

BRACE,MUFFLER

€ 7.00

15

0112208408
ref: 15
01500-0840A

BOLT 8X40

€ 3.00

16

0932012018
ref: 16

CUSHION

€ 2.00

17

0918008057
ref: 17

SPACER (8.2X12.5X23.5)

€ 2.00

18

0916008007
ref: 18
09160-08127

WASHER (8.7X22X2)

€ 2.00

19

0832121088
ref: 19
08321-01087

LOCK WASHER

€ 2.00

20

0112208168
ref: 20
01500-0816B

BOLT

€ 2.00

21

0832211088
ref: 21
08322-01087

WASHER

€ 2.00

22

0832121088
ref: 22
08321-01087

LOCK WASHER

€ 2.00

23

0944311002
ref: 23

SPRING

€ 4.50

24

0911108011
ref: 24

BOLT

€ 1.50

25

0932012018
ref: 25

CUSHION

€ 2.00

26

0916008007
ref: 26
09160-08127

WASHER (8.7X22X2)

€ 2.00

26

0916008007
ref: 26
09160-08127

WASHER (8.7X22X2)

€ 2.00

27

0918008057
ref: 27

SPACER (8.2X12.5X23.5)

€ 2.00

28

0631231068
ref: 28

NUT L,M

€ 0.00

29

0832211128
ref: 29
08322-01127

WASHER

€ 2.00

30

0832211068
ref: 30
08322-0106B

WASHER 6MM

€ 2.00

31

0833211068
ref: 31
08332-1106A

E RING 6MM

€ 2.00

32

0832121088
ref: 32
08321-01087

LOCK WASHER

€ 2.00
