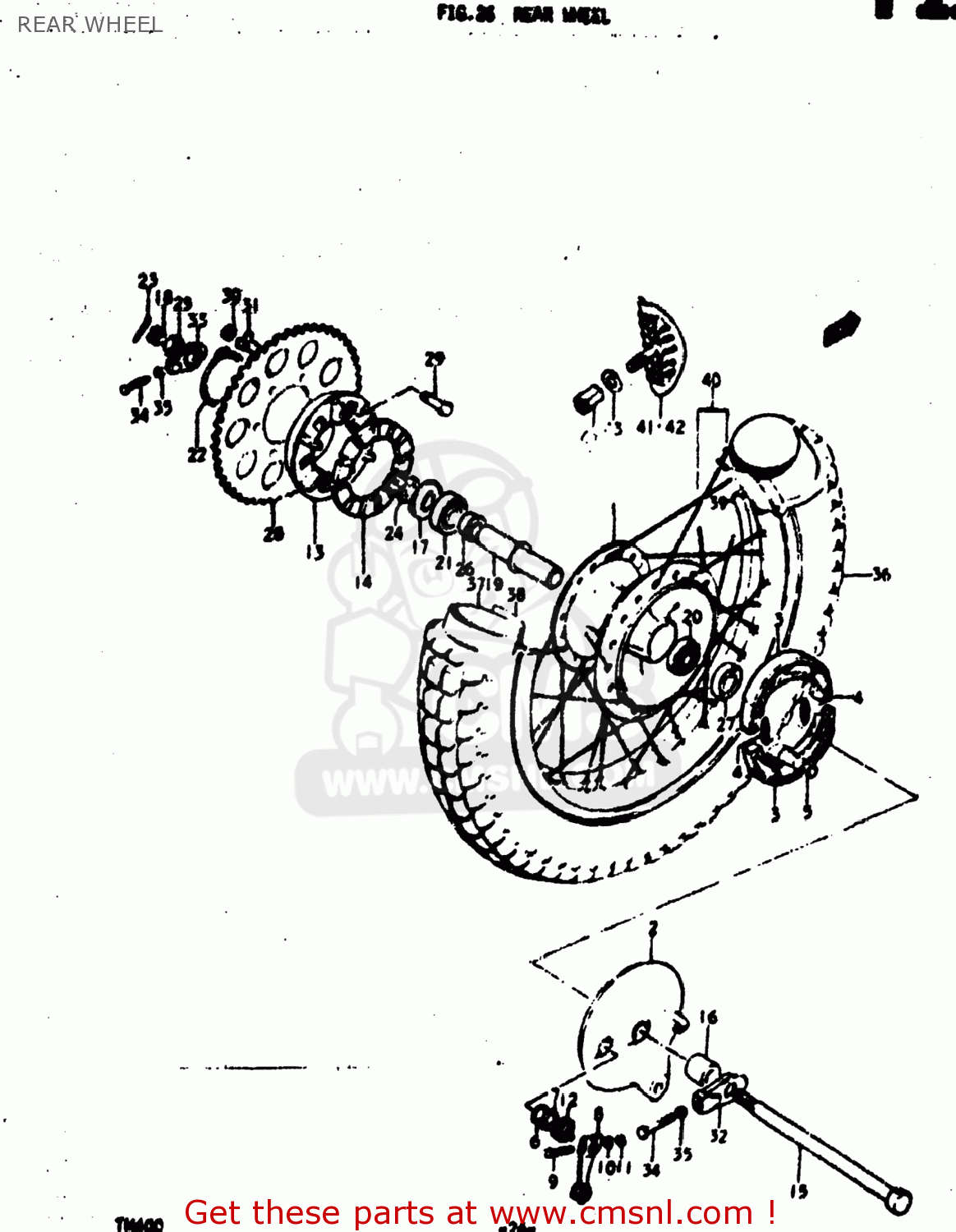

REAR WHEEL

ref

part #

description

quantity

1

6411016500
ref: 1

DRUM,REAR HUB

€ 295.00

2-1

6421016500
ref: 2-1

PANEL,REAR HUB

€ 49.50

2-2

6421016501
ref: 2-2

PANEL,REAR HUB

€ 49.50

3-1

5441008001
ref: 3-1
64400-02830

SHOE,BRAKE

€ 35.00

3-2

5441008002
ref: 3-2
64400-02830

SHOE,BRAKE

€ 35.00

4

5542030000
ref: 4

SPRING,BRAKE SHOE

€ 3.50

5-1

5444030001
ref: 5-1

CAM,FRONT BRAKE

€ 19.00

5-2

5444008001
ref: 5-2
54440-08004

CAM,FRONT BRAKE

€ 19.00

6

0928019001
ref: 6

O RING(D:1.9,ID:18.8)

€ 1.50

7

0916015001
ref: 7
09160-15048

WASHER (15X24X1.6)

€ 2.50

8

6445130000
ref: 8
64451-30001

LEVER,REAR BRAKE CAM

€ 19.00

9

0111206408
ref: 9
01500-0640B

BOLT

€ 2.00

10

0832221068
ref: 10
08322-01067

WASHER

€ 2.00

11

0831111068
ref: 11
08310-00067

NUT

€ 2.50

12

0944830001
ref: 12
09448-30001-XC0

SPRING

€ 16.00

13

6461016500
ref: 13

DRUM,REAR SPROCKET MOUNT

€ 100.50

14

6465016520
ref: 14

ABSORBER,RR WHEEL HUB SHOCK

€ 26.50

15-1

6471116500
ref: 15-1

AXLE,REAR

€ 41.00

15-2

6471132100
ref: 15-2
64711-32101

AXLE,REAR

€ 62.50

16-1

0918015014
ref: 16-1

SPACER (15.2X26X20)

€ 9.00

16-2

0918015028
ref: 16-2

SPACER

€ 1.50

17

6475030000
ref: 17

SPACER,REAR AXLE,RIGHT

€ 8.50

18

0914114001
ref: 18

NUT

€ 4.50

19

6473030000
ref: 19

SPACER,REAR HUB BEARING

€ 10.50

20

0811363020
ref: 20
09262-15027

BEARING, RH

€ 17.50

21

0812363040
ref: 21
08123-63047

BEARING

€ 14.00

22

0833111628
ref: 22

CIRCLIP

€ 4.00

23

0411130408
ref: 23
04111-3040A

PIN 30X40

€ 1.50

24

6479130000
ref: 24

SPACER,REAR AXLE,LEFT

€ 17.00

24

6479130000
ref: 24

SPACER,REAR AXLE,LEFT

€ 17.00

25

0914024002
ref: 25
09140-24010

NUT

€ 8.50

25

0914024002
ref: 25
09140-24010

NUT

€ 8.50

26

6473330000
ref: 26

SPACER,REAR HUB BEARING

€ 16.50

27

0928426001
ref: 27

OIL SEAL

€ 6.00

28-1

6451130000
ref: 28-1

SPROCKET,RR

€ 93.00

28-2

6451130700
ref: 28-2
64511-30701

SPROCKET,REAR

€ 71.50

28-3

6451130710
ref: 28-3

SPROCKET,REAR

€ 82.00

29

0910508001
ref: 29

BOLT(8X33.5)

€ 2.50

30

0914008010
ref: 30

NUT

€ 2.00

31

0916908010
ref: 31
09169-08011

WASHER

€ 2.50

32

6141030000
ref: 32
61410-30003

ADJUSTER,CHAIN

€ 18.50

33

6142030001
ref: 33
61420-30002

ADJUSTER,CHAIN

€ 13.50

33

6142030001
ref: 33
61420-30002

ADJUSTER,CHAIN

€ 13.50

34

0910408006
ref: 34
09104-08034

BOLT

€ 3.00

35

0831211088
ref: 35
08310-00087

NUT

€ 2.00

36

6510016570
ref: 36

TIRE

€ 0.00

37

6520016570
ref: 37

TUBE ASSEMBLY,WHEEL,INNER

€ 0.00

38

6526116571
ref: 38

PROTECTOR,WHEEL,INNER

€ 0.00

39-1

6531116500
ref: 39-1

RIM,REAR WHEEL

€ 86.00

39-2

6531128322
ref: 39-2

RIM,REAR WHEEL

€ 86.00

39-3

6531130400
ref: 39-3

RIM,REAR WHEEL

€ 0.00

39-4

6531130421
ref: 39-4

RIM,REAR WHEEL

€ 0.00

40

6530016828
ref: 40
65320-16520

SPOKE SET,REAR

€ 54.00

41

6527030000
ref: 41
65270-43D00

STOPPER,BEAD

€ 30.50

42

6527040000
ref: 42

STOPPER,BEAD

€ 38.00

43

0832221088
ref: 43
08322-01087

WASHER

€ 2.00

44

0915908016
ref: 44

NUT

€ 2.00
