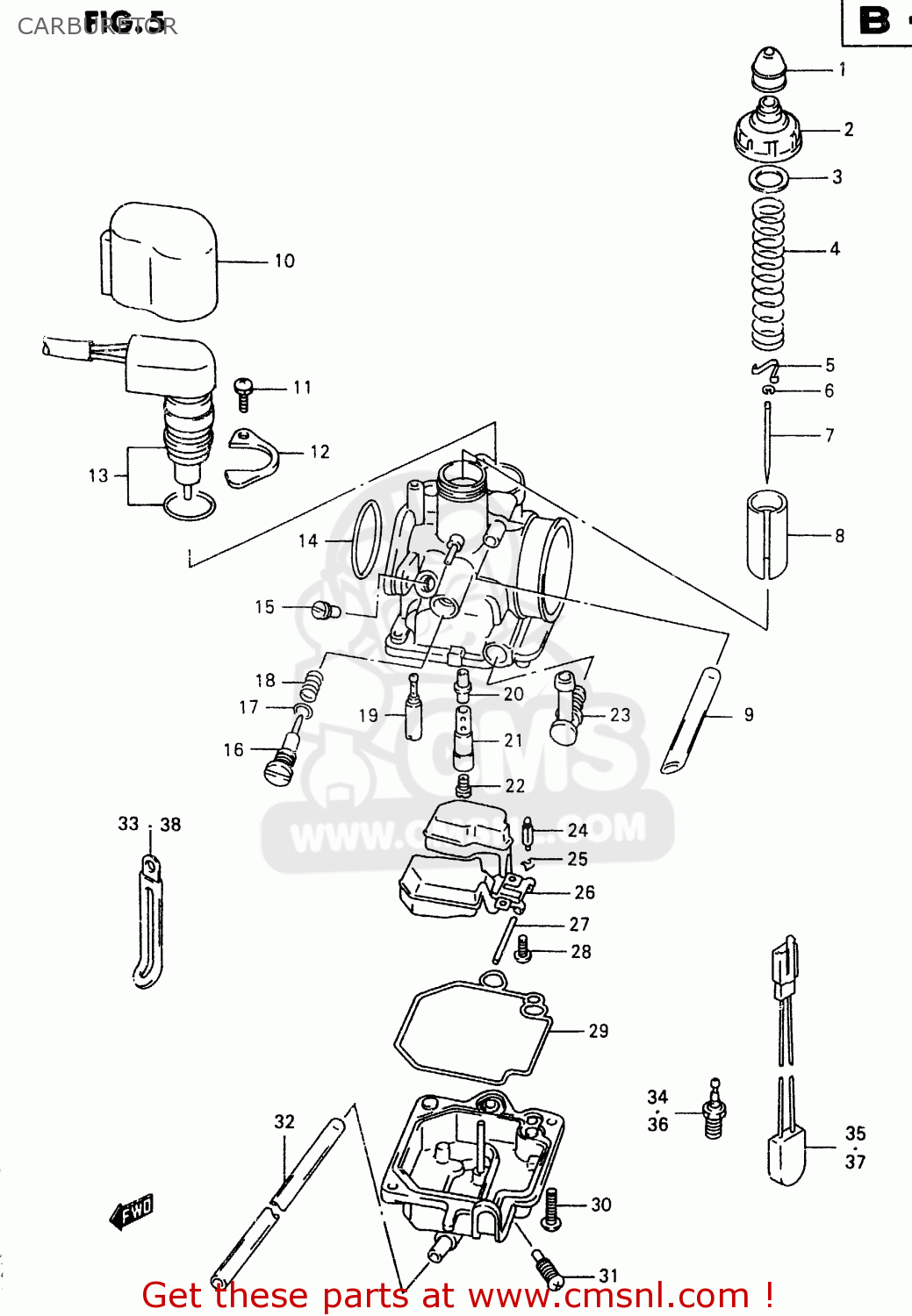

CARBURETOR

ref

part #

description

quantity

0

1320006F50
ref: 0

CARBURETOR ASSY

€ 301.50

0

1320006F30
ref: 0
E22

CARBURETOR TR5

€ 217.50

0

1320006F40
ref: 0
E34

CARBURETOR ASSY

€ 309.00

1

1368128E00
ref: 1

CAP,CARBURETOR

€ 7.00

2

1326143E00
ref: 2

TOP,CARBURETOR

€ 18.50

3

1326643E00
ref: 3

GASKET

€ 4.50

4

1357343E00
ref: 4

SPRING

€ 23.50

5

1339243E00
ref: 5

PLATE,CLIP

€ 2.00

6

1339443E00
ref: 6

CLIP,NEEDLE

€ 2.00

7-1

1338306F50
ref: 7-1

NEEDLE,JET(6LJJ)

€ 9.50

7-2

1338306F30
ref: 7-2
E22

NEEDLE, JET (N4WB)

€ 0.00

7-3

1338343E00
ref: 7-3
E34

NEEDLE,JET(3LLN)

€ 12.00

8

1355143E00
ref: 8
CA:3.5

VALVE,THROTTLE

€ 20.50

9

1368343E00
ref: 9

HOSE(5X8X90)

€ 3.50

10

1343306F30
ref: 10

COVER

€ 9.00

11

0211234083
ref: 11

SCREW

€ 2.00

12

1342806F30
ref: 12

PLATE

€ 4.50

13

1343006F30
ref: 13

ELEMENT ASSY,THERMO

€ 78.50

14

1343643E00
ref: 14

O RING

€ 5.00

15-1

1327943E00
ref: 15-1

SCREW,ADJUST

€ 8.50

15-2

1327943E00
ref: 15-2
E22

SCREW,ADJUST

€ 8.50

15-3

1327943E00
ref: 15-3
E34

SCREW,ADJUST

€ 8.50

16

1326743E00
ref: 16

SCREW,STOP

€ 11.00

17

1327843E00
ref: 17

O RING

€ 4.00

18

1329743E00
ref: 18

SPRING

€ 1.50

19-1

0949240023
ref: 19-1

JET,SLOW(40)

€ 12.50

19-2

0949238003
ref: 19-2
E22

JET,SLOW(38)

€ 0.00

20

1334143E00
ref: 20

JET,NEEDLE

€ 5.50

21-1

1334243E00
ref: 21-1

HOLDER,JET

€ 13.50

21-2

1334206F40
ref: 21-2
E34

HOLDER,JET

€ 0.00

22-1

0949175011
ref: 22-1

JET,MAIN(75)

€ 12.00

22-2

0949160011
ref: 22-2
E22

JET,MAIN(60)

€ 11.00

22-3

0949172013
ref: 22-3
E34

JET,MAIN(72)

€ 12.50

23

1368543E00
ref: 23

JOINT

€ 9.50

24

1337043E00
ref: 24

VALVE,NEEDLE

€ 11.00

25

1337543E00
ref: 25

CLIP,VALVE

€ 3.50

26

1325043E00
ref: 26

FLOAT ASSY

€ 18.00

27

1325443E00
ref: 27

PIN,FLOAT

€ 2.50

28

1360243E00
ref: 28

SCREW

€ 3.00

29

1325843E00
ref: 29

GASKET

€ 7.00

30

1360226E10
ref: 30

SCREW

€ 6.00

31

1324743E00
ref: 31

PLUG,DRAIN

€ 4.00

32

0935240703600
ref: 32
L:600->250

HOSE(4X7X600)

€ 3.00

33

0940406429
ref: 33

CLAMP(L:45)

€ 2.50

34

1365025E01
ref: 34
E2

HEATER ASSY,CARBURETOR(15W)

€ 35.00

35

1365525E00
ref: 35
E2

THERMO SWITCH,CARB HEATER

€ 36.00

36

1365025E01
ref: 36
OPT

HEATER ASSY,CARBURETOR(15W)

€ 35.00

37

1365525E00
ref: 37
OPT

THERMO SWITCH,CARB HEATER

€ 36.00

38

0940406429
ref: 38
OPT

CLAMP(L:45)

€ 2.50
