TURN SIGNAL LAMP
TR50S 1999 (X)

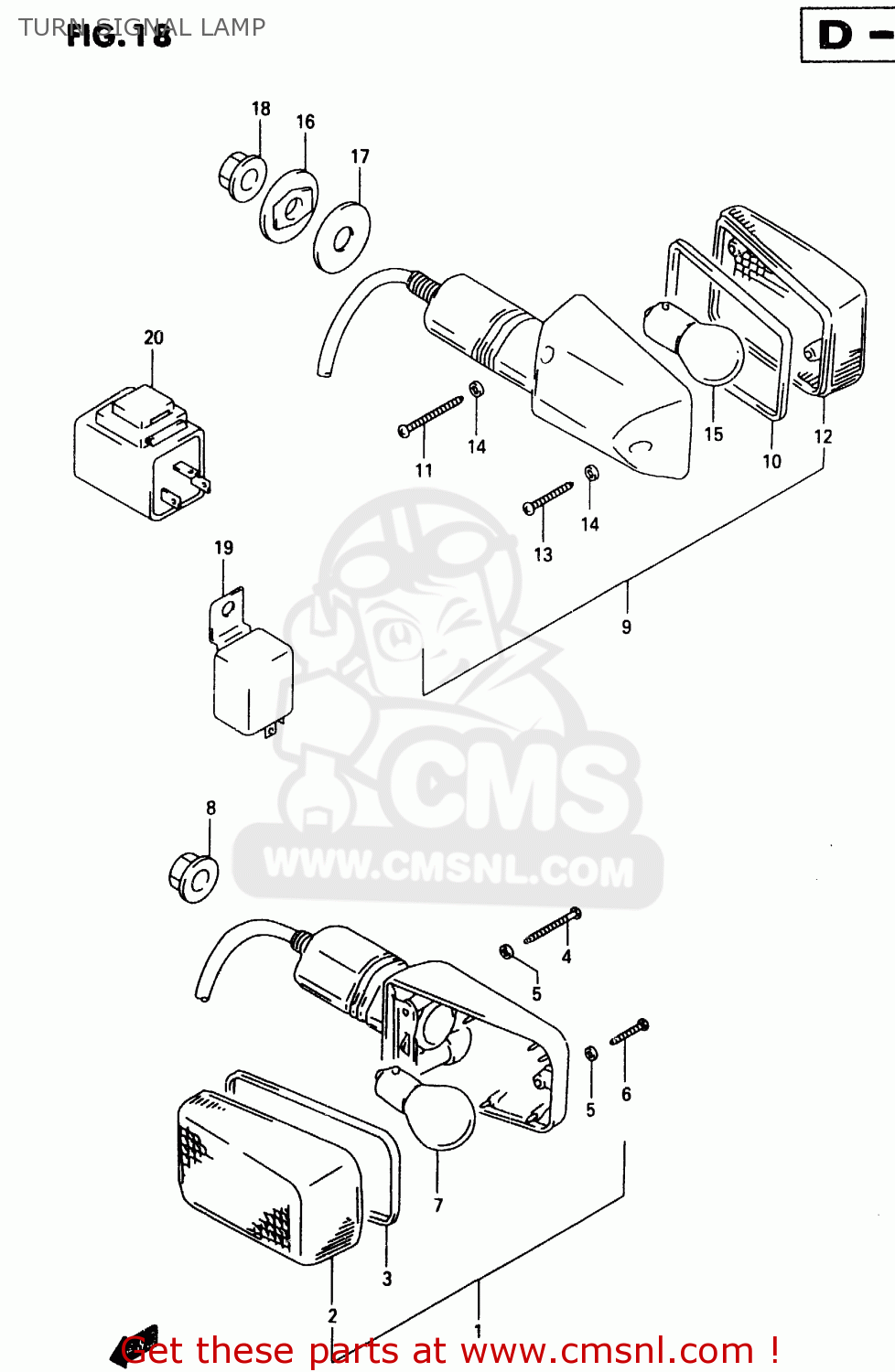

Turn signal lamp diagram TR50S 1999 (X)
TURN SIGNAL LAMP TR50S 1999 (X)
×
prices are in EUR
ref
part #
description
quantity
1
3560129E30
ref: 1
LAMP ASSY,FR TURN SIGNAL
€ 57.50
2
3561217C20
ref: 2
LENS
€ 6.50
3
3561327A00
ref: 3
GASKET (NAS)
€ 3.00
4
3562327A00
ref: 4
SCREW(3X30)
€ 1.50
5
3562727A02
ref: 5
GASKET (NAS)
€ 1.50
6
3572540511
ref: 6
SCREW
€ 1.50
7
0947112045
ref: 7
BULB(12V21W)
€ 5.00
8
0831610103
ref: 8
NUT
€ 2.00
9
3560329E10
ref: 9
LAMP ASSY,RR TURNSIGNAL
€ 59.50
10
3561327A00
ref: 10
GASKET (NAS)
€ 3.00
11
3562327A00
ref: 11
SCREW(3X30)
€ 1.50
12
3565217C20
ref: 12
LENS
€ 6.50
13
3572540511
ref: 13
SCREW
€ 1.50
14
3562727A02
ref: 14
GASKET (NAS)
€ 1.50
15
0947112045
ref: 15
BULB(12V21W)
€ 5.00
16
3569517C00
ref: 16
SPACER,RR TURNSIGNAL
€ 3.00
17
0916010501
ref: 17
WASHER(10.5X30X2.3)
€ 2.50
18
0831610103
ref: 18
NUT
€ 2.00
19
3861031X50
ref: 19
RELAY ASSY,TURNSIGNAL
€ 54.50
20
3861006F00
ref: 20
E22
RELAY ASSY,TURNSIGNAL
€ 67.50
