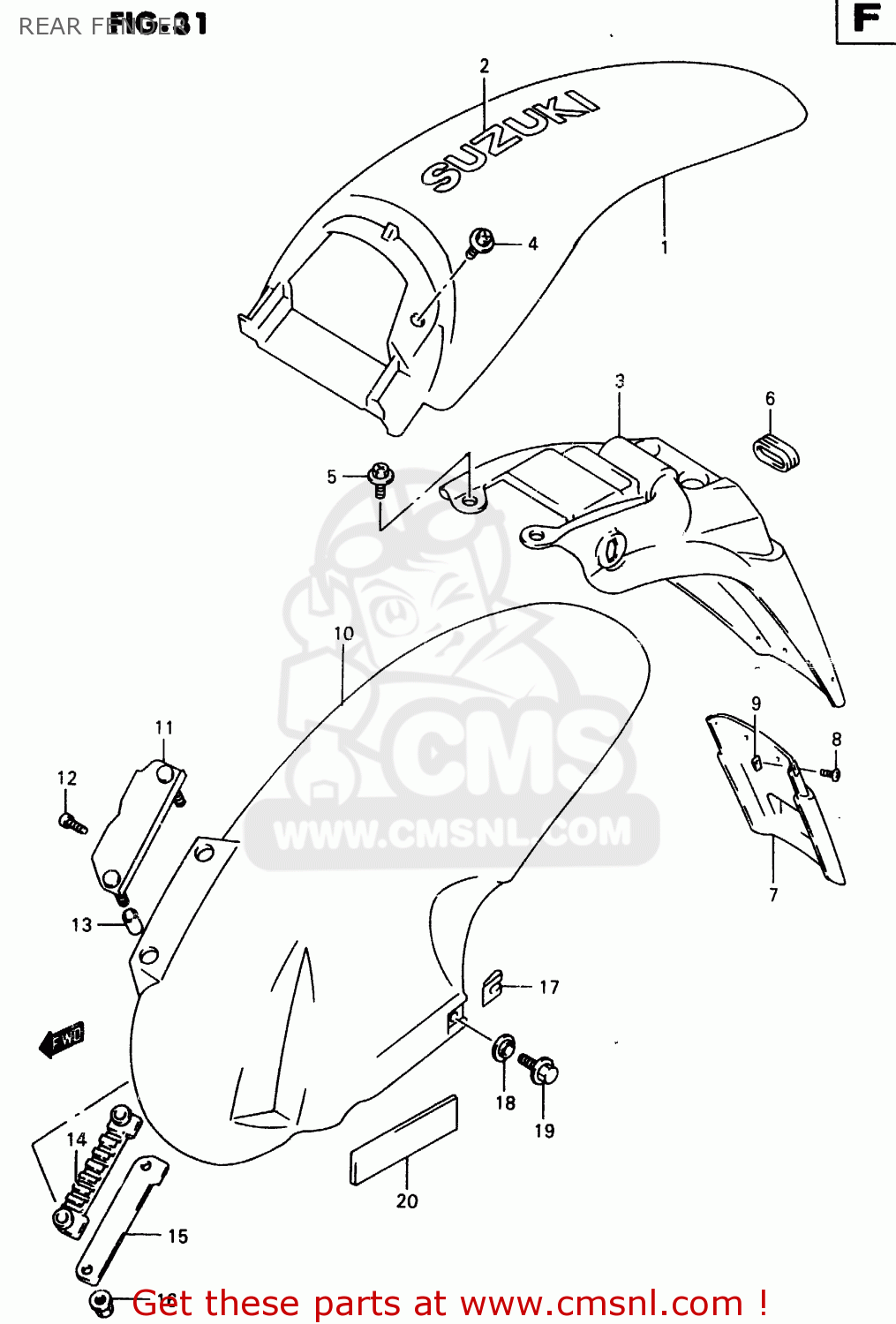

REAR FENDER

ref

part #

description

quantity

1-1

6311306F10Y0P
ref: 1-1

FENDER,RR UPR

€ 45.50

1-2

6311306F1033J
ref: 1-2

FENDER,RR UPR

€ 94.50

1-3

6311306F10Y0R
ref: 1-3

FENDER,RR UPR

€ 87.00

1-4

6311306F10Y3G
ref: 1-4

FENDER,RR UPR

€ 45.50

2-1

681114340013L
ref: 2-1
FOR Y0P, 33J

EMBLEM,FUEL TANK

€ 11.50

2-2

681114340020G
ref: 2-2
FOR Y0R, Y3G

EMBLEM,RR FENDER

€ 13.00

3-1

6331106F30
ref: 3-1

EXTENSION,RR FENDER

€ 29.00

3-2

6331106F40
ref: 3-2
E22

EXTENSION,RR FENDER

€ 32.50

3-3

6331106F10
ref: 3-3
E4, E53

EXTENSION,RR FENDER

€ 32.50

3-4

6331106F20
ref: 3-4
E34

EXTENSION,RR FENDER

€ 29.50

4

6316143E00
ref: 4

BOLT

€ 3.00

5

0911106066
ref: 5

BOLT(6X16)

€ 2.50

6

0932004008
ref: 6

CUSHION

€ 6.00

7

6333106F00
ref: 7

MUDGUARD,RR FENDER EXTENSION

€ 12.00

8

0354104123
ref: 8

SCREW

€ 1.50

9

0914804034
ref: 9

NUT

€ 3.00

10

6311206F01Y0J
ref: 10

FENDER,RR LWR

€ 46.00

11

6312006F01
ref: 11

BRACKET,RR FENDER LWR

€ 14.50

12

0910606069
ref: 12

BOLT,COVER MUFFLER TAIL

€ 3.00

13

0918006264
ref: 13

SPACER(6.5X9X10.5)

€ 2.00

14

6341206F00
ref: 14

CUSHION,RR FENDER LWR

€ 13.00

15

6311506F00
ref: 15

PLATE,RR FENDER LWR

€ 5.00

16

0831610063
ref: 16

NUT

€ 2.50

17

0914806015
ref: 17

NUT

€ 3.50

18

6311806F00
ref: 18

WASHER,LWR FENDER,L

€ 4.50

19

0911606010
ref: 19

BOLT(6X20)

€ 2.00

20

4428124D00
ref: 20

CUSHION,FUEL TANK

€ 3.00

all assemblies
