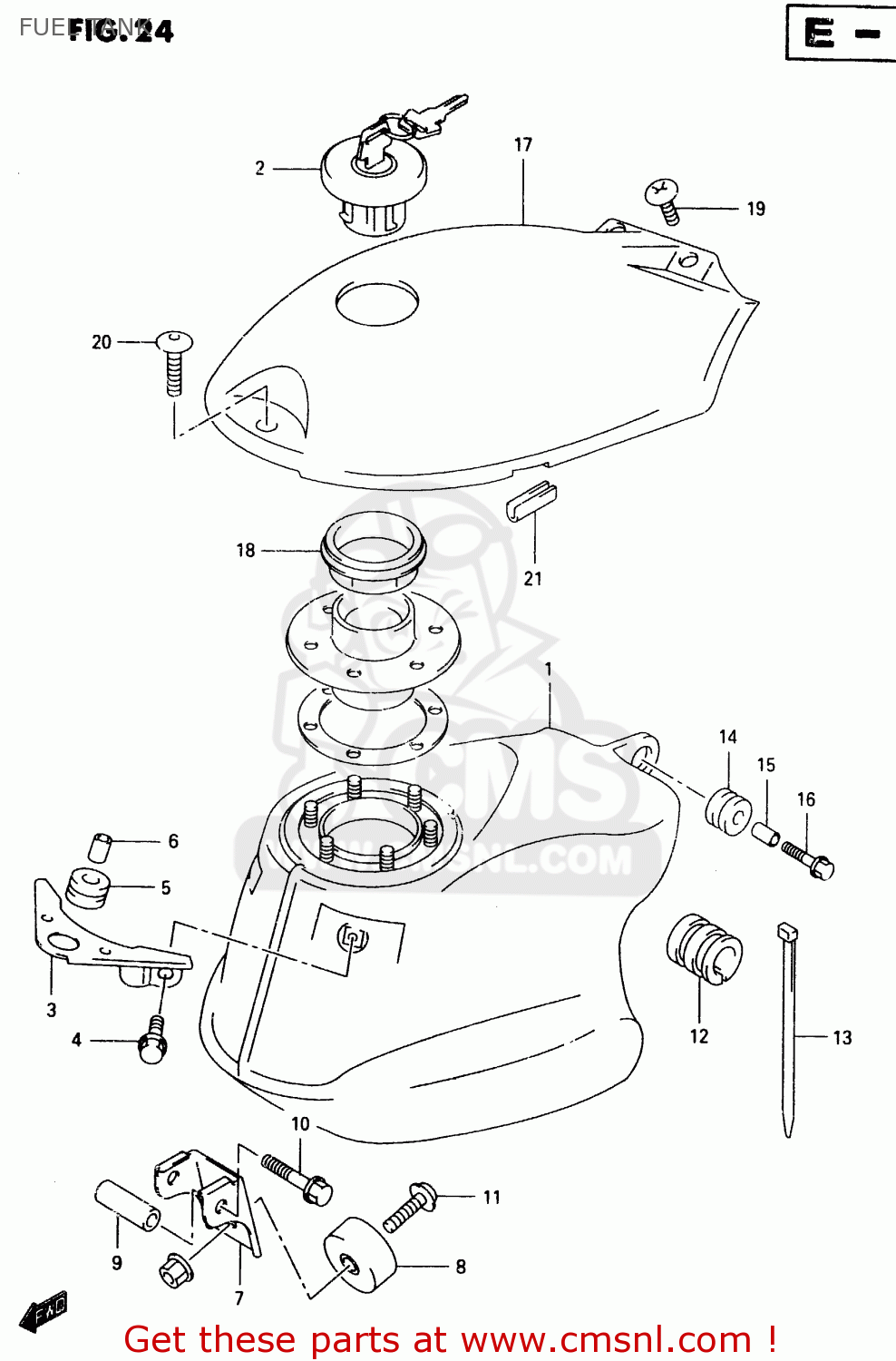

FUEL TANK

ref

part #

description

quantity

1

4410006F00
ref: 1

TANK ASSY,FUEL

€ 117.50

2

4420024830
ref: 2

CAP SET,FUEL TANK

€ 109.50

3

4412006F00
ref: 3

BRACKET,FUEL TANK FR UPR

€ 7.00

4

0155006103
ref: 4

BOLT

€ 2.50

5

4451204F00
ref: 5

CUSHION,FUEL TANK SIDE

€ 3.00

6

0918006269
ref: 6

SPACER(6.5X9X15.5)

€ 4.00

7

4413006F00
ref: 7

BRACKET,FUEL TANK FR LWR

€ 12.00

8

4514914D00
ref: 8

CUSHION

€ 3.00

9

0918006306
ref: 9

SPACER(6.5X9X5)

€ 2.00

10

0155006453
ref: 10

BOLT (6X45)

€ 2.50

11

0211216203
ref: 11

SCREW

€ 2.50

12

4454226C00
ref: 12

CUSHION,FUEL TANK NO.2

€ 8.00

13

0940714407
ref: 13

CLAMP(L:145)

€ 4.00

14

1476201B01
ref: 14

CUSHION,MUFFLER

€ 3.00

15

0918006268
ref: 15

SPACER(6.5X9X13.5)

€ 2.00

16

0911806109
ref: 16

BOLT(6X30)

€ 3.50

17-1

4417106F00Y0P
ref: 17-1

COVER, FUEL TANK UPPER (BLUE)

€ 108.00

17-2

4417106F0033J
ref: 17-2

COVER,FUEL TANK UPR

€ 101.00

17-3

4417106F00Y0R
ref: 17-3

COVER,FUEL TANK UPR

€ 107.00

17-4

4417106F00Y3G
ref: 17-4

COVER,FUEL TANK UPR

€ 118.50

18

4426106F00
ref: 18

RUBBER,FUEL TANK INLET

€ 20.50

19

0913906029
ref: 19

SCREW(6X25)

€ 5.00

20

0913906083
ref: 20

SCREW(6X16)

€ 2.50

21

5186121D00
ref: 21

MOLDING,BRACE

€ 3.50
