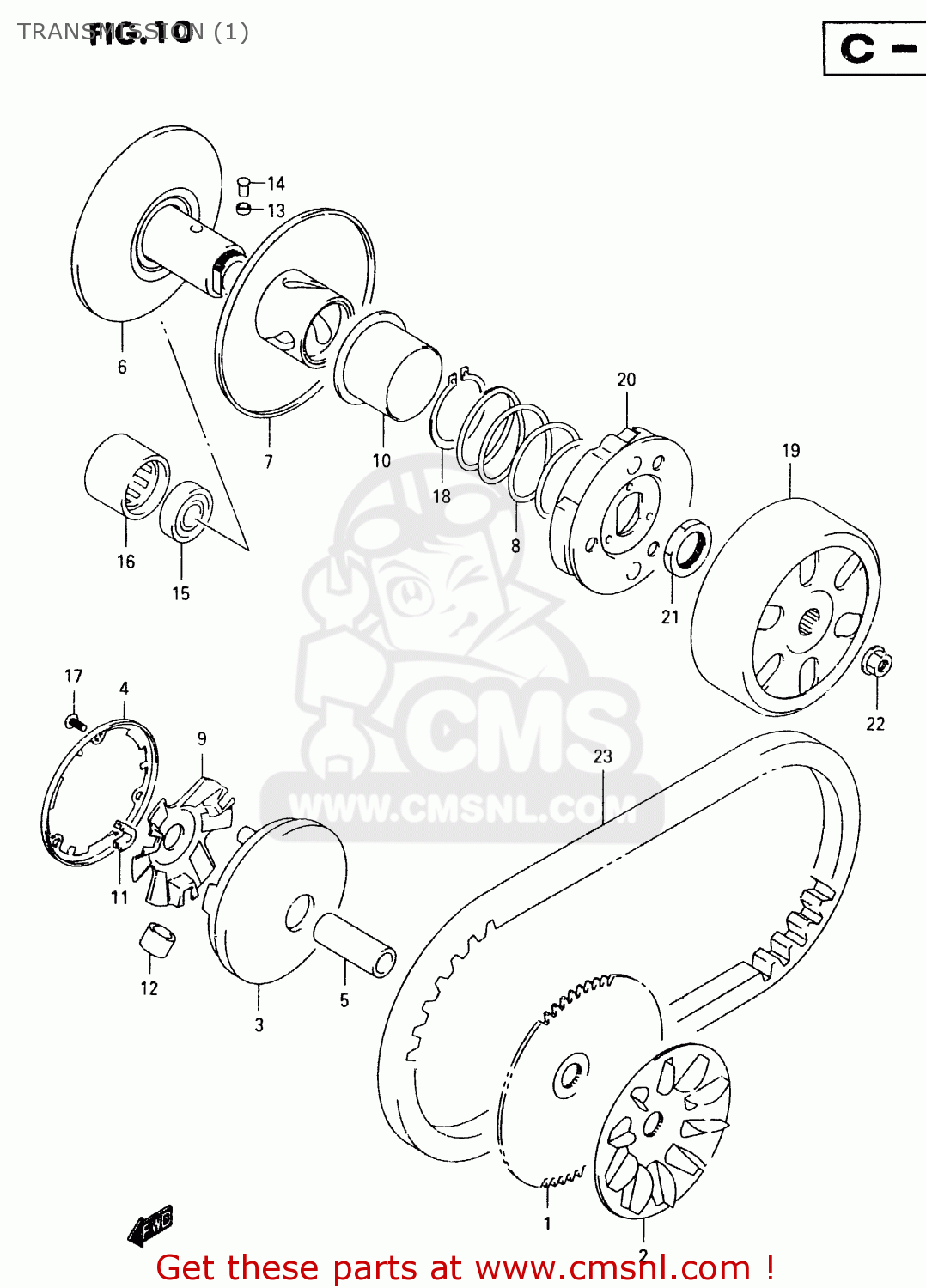

TRANSMISSION (1)

ref

part #

description

quantity

1

2111106F00
ref: 1

FACE,FIXED DRIVE

€ 46.50

2

2111337B10
ref: 2

FAN,FIXED DRIVE

€ 5.00

3

2112006F00
ref: 3

FACE,MOVABLE DRIVE

€ 60.00

4

2112243E10
ref: 4

COVER,MOVABLE DRIVE

€ 4.50

5

2112506F00
ref: 5

SPACER,MOVABLE

€ 27.00

6

2121006F00
ref: 6

FACE,FIXED DRIVEN

€ 85.50

7

2124006F00
ref: 7

FACE,MOVABLE DRIVEN

€ 81.00

8

2124320E20
ref: 8

SPRING,MOVABLE DRIVEN

€ 25.50

9

2143106F01
ref: 9

PLATE,MOVABLE DRIVE

€ 9.00

10

2147103A03
ref: 10

SHEET,MOVABLE DRIVEN F

€ 3.50

11

2148129C40
ref: 11

DAMPER,MOVABLE DRIVE

€ 3.00

12

2165041D50
ref: 12

ROLLER,MOVABLE DRIVE

€ 12.00

13

2124906F00
ref: 13

SPACER,MOVABLE(5X8.2X3.5)

€ 3.50

14

2124806F00
ref: 14

PIN,MOVABLE DR

€ 4.50

15

0926212018
ref: 15

BEARING(12X24X6)

€ 12.00

16

0926317042
ref: 16

BEARING(17X25X16.7)

€ 18.50

17

0214204103
ref: 17

SCREW

€ 1.50

18

0833141246
ref: 18

CIRCLIP

€ 2.50

19

2122004C21
ref: 19

HOUSING,CLUTCH

€ 77.00

20

2150143E20
ref: 20

CLUTCH,SHOE

€ 150.50

21

0914028004
ref: 21

NUT

€ 7.00

22

0831610103
ref: 22

NUT

€ 2.00

23

2760106F01
ref: 23

V-BELT,DRIVE

€ 67.00
