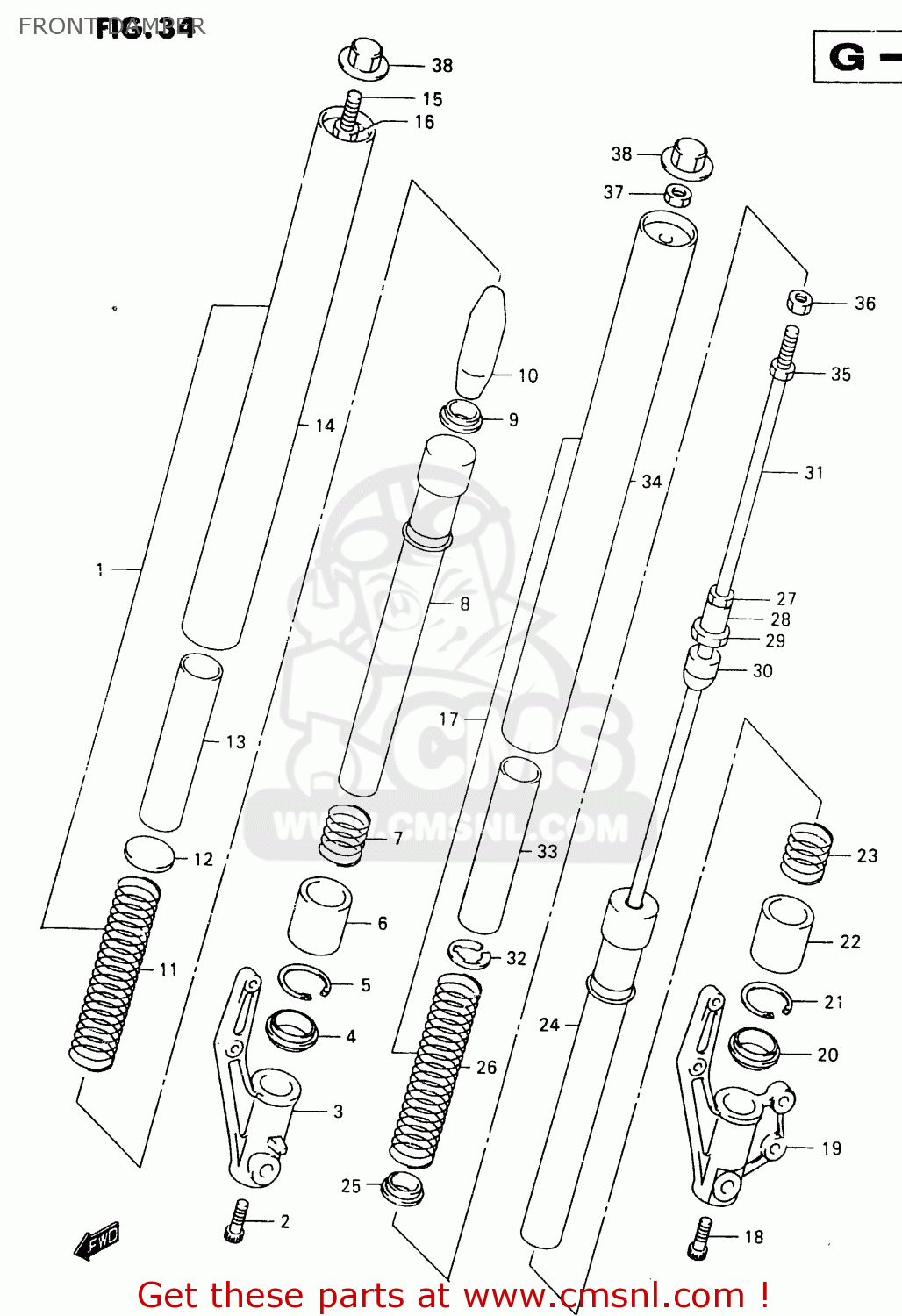

FRONT DAMPER

ref

part #

description

quantity

1

5110306F12
ref: 1

DAMPER ASSY,FR FORK,R

€ 513.00

2

5114706F10
ref: 2

BOLT

€ 3.00

3

5113206F1013L
ref: 3

HOLDER,FR AXLE,R(SILVER)

€ 106.50

4

5117306F10
ref: 4

SEAL,DUST

€ 12.00

5

5111835E00
ref: 5

CIRCLIP

€ 2.00

6

5115206F10
ref: 6

PIPE,GUIDE

€ 12.00

7

5117706F11
ref: 7

SPRING,REBOUND

€ 8.00

8

5111006F11
ref: 8

TUBE ASSY,INNER,R

€ 69.00

9

5117806F10
ref: 9

SEAT,SPRING

€ 4.50

10

5129206F10
ref: 10

RUBBER,STOPPER

€ 9.00

11

5117106F10
ref: 11

SPRING,FR

€ 17.00

12

5117206F10
ref: 12

SEAT,SPRING

€ 6.00

13

5117606F11
ref: 13

COLLAR,SPRING

€ 7.00

14

5113006F10
ref: 14

TUBE,OUTER

€ 130.00

15

5181606F10
ref: 15

BOLT,JOINT

€ 9.50

16

5112906F10
ref: 16

NUT

€ 10.00

17

5110406F12
ref: 17

DAMPER ASSY,FR FORK,L

€ 567.50

18

5114706F10
ref: 18

BOLT

€ 3.00

19

5114206F1013L
ref: 19

HOLDER,FR AXLE,L(SILVER)

€ 160.00

20

5117306F10
ref: 20

SEAL,DUST

€ 12.00

21

5111835E00
ref: 21

CIRCLIP

€ 2.00

22

5115206F10
ref: 22

PIPE,GUIDE

€ 12.00

23

5117706F11
ref: 23

SPRING,REBOUND

€ 8.00

24

5112006F11
ref: 24

TUBE ASSY,INNER,L

€ 65.00

25

5117806F10
ref: 25

SEAT,SPRING

€ 4.50

26

5117106F10
ref: 26

SPRING,FR

€ 17.00

27

5181406F10
ref: 27

NUT

€ 2.00

28

5181706F10
ref: 28

NUT,JOINT

€ 8.00

29

6218224030
ref: 29

NUT

€ 2.50

30

5221906F10
ref: 30

RUBBER,STOPPER

€ 5.00

31

5112806F11
ref: 31

ROD

€ 31.00

32

5117506F10
ref: 32

SEAT,SPRING

€ 4.00

33

5117606F11
ref: 33

COLLAR,SPRING

€ 7.00

34

5113006F10
ref: 34

TUBE,OUTER

€ 130.00

35

5181406F10
ref: 35

NUT

€ 2.00

36

6218216A00
ref: 36

NUT

€ 2.50

37

5112906F10
ref: 37

NUT

€ 10.00

38

5136206F00
ref: 38

NUT, UPPER SIDE

€ 9.00
