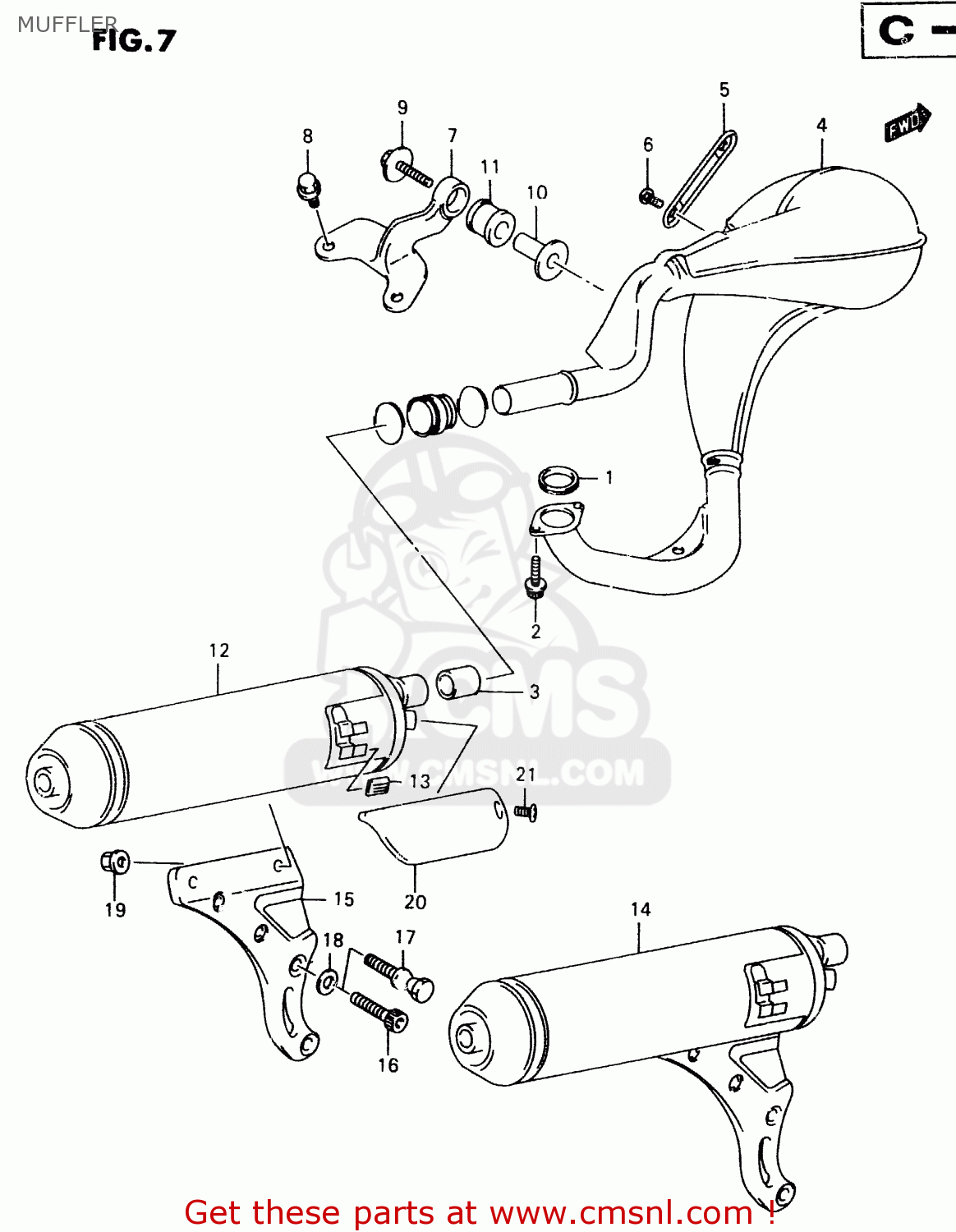

MUFFLER

ref

part #

description

quantity

1

1418106F00
ref: 1

GASKET,EXHAUST PIPE (NAS)

€ 7.00

2

0712006163
ref: 2

BOLT MAGNETO S

€ 2.50

3

1477148002
ref: 3

CONNECTOR,MUFFLER

€ 8.00

4-1

1431006F10
ref: 4-1

BODY,MUFFLER 1ST

€ 474.50

4-2

1431006F20
ref: 4-2
E4

BODY,MUFFLER 1ST

€ 559.50

4-3

1431006F30
ref: 4-3
E22

BODY, MUFFLER 1ST

€ 668.00

4-4

1431006F40
ref: 4-4
E26, E34, E53

BODY,MUFFLER 1ST

€ 482.50

5

1478006F00
ref: 5

COVER,MUFFLER 1ST

€ 10.00

6

0913906076
ref: 6

SCREW(6X10)

€ 2.50

7

1477006F00
ref: 7

BRACKET COMP,M

€ 37.50

8

0155008203
ref: 8

BOLT

€ 3.00

9

0911808152
ref: 9

BOLT 8X45

€ 5.00

10

0918008152
ref: 10

SPACER(8.6X12X24.2)

€ 6.00

11

0932012048
ref: 11

CUSHION

€ 5.00

12-1

1433006F10
ref: 12-1
E2, E26, E34, E53

BODY, MUFFLER 2ND

€ 228.00

12-2

1433006F30
ref: 12-2
E22

BODY,MUFFLER 2ND

€ 225.50

13

1479506F00
ref: 13

GROMMET,2ND MUFFLER COVER

€ 6.00

14

1430506F20
ref: 14
E4

MUFFLER,2ND

€ 157.50

15

1444106F00
ref: 15
EXCEPT E4

BRACKET,2ND MUFFLER SUPPORT

€ 49.00

16-1

0713008257
ref: 16-1

BOLT

€ 3.50

16-2

0713008257
ref: 16-2
E4

BOLT

€ 3.50

17

1445406F00
ref: 17
E4

BOLT, UPPER

€ 0.00

18

0916008097
ref: 18

WASHER(8.5X16X1.6)

€ 2.50

19

0831931083
ref: 19

NUT

€ 2.50

20

1479006F00
ref: 20

COVER,MUFFLER 2ND

€ 29.00

21

0913906076
ref: 21

SCREW(6X10)

€ 2.50
