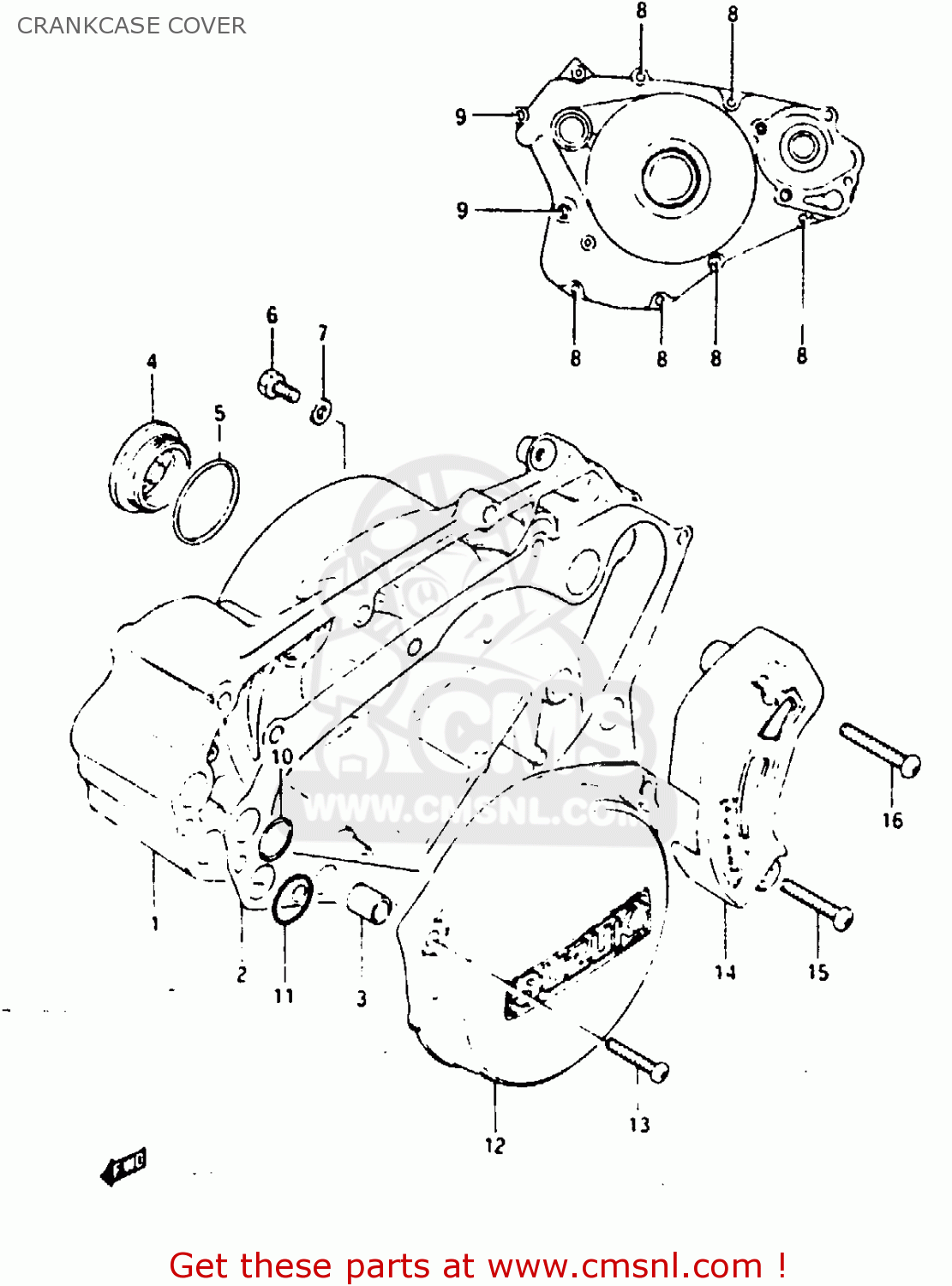

CRANKCASE COVER

ref

part #

description

quantity

1-1

1134101A90
ref: 1-1
MODEL E ~E.NO.100636

COVER, CLUTCH

€ 148.50

1-2

1134101A01
ref: 1-2
MODEL E E.NO.100637~

COVER, CLUTCH

€ 169.00

1-3

1134101A10
ref: 1-3
MODEL G

COVER, CLUTCH

€ 169.00

2-1

1148201A00
ref: 2-1
MODEL E ~E.NO.100636

GASKET, CLUTCH COVER

€ 14.00

2-2

1148201A01
ref: 2-2
MODEL E E.NO.100637~

GASKET, CLUTCH COVER (MCA)

€ 14.00

3

0920613001
ref: 3

PIN

€ 2.50

4

0925936005
ref: 4

PLUG

€ 11.00

5

0928033004
ref: 5

O RING(D:3.1,ID:32.7)

€ 2.50

6

0912806037
ref: 6

SCREW(6X10)

€ 2.00

7

0916806001
ref: 7

GASKET(6.2X11X1) (NAS)

€ 1.50

8

0211206255
ref: 8

SCREW

€ 1.50

9

0211206405
ref: 9

SCREW

€ 2.00

10

0928015002
ref: 10

O RING(D:1.9,ID:14.5)

€ 3.50

11

0928020006
ref: 11

O RING(D:1.9,ID:19.8)

€ 2.50

12-1

1135101A00
ref: 12-1
MODEL E/F

COVER, MAGNETO

€ 110.00

12-2

1135101A10
ref: 12-2
MODEL G

COVER, MAGNETO

€ 110.00

13

0211206255
ref: 13

SCREW

€ 1.50

14-1

1136101A00
ref: 14-1
MODEL E/F

COVER, SPROCKET

€ 15.50

14-2

1136101A10
ref: 14-2
MODEL G

COVER, SPROCKET

€ 15.50

15

0211206305
ref: 15

SCREW

€ 2.50

16

0211206405
ref: 16

SCREW

€ 2.00

all assemblies
