Buy Suzuki TS Parts Online


OPTIONAL

TS125X 1986 (G) (E01 E02 E04 E06 E15 E17 E18 E21 E24)

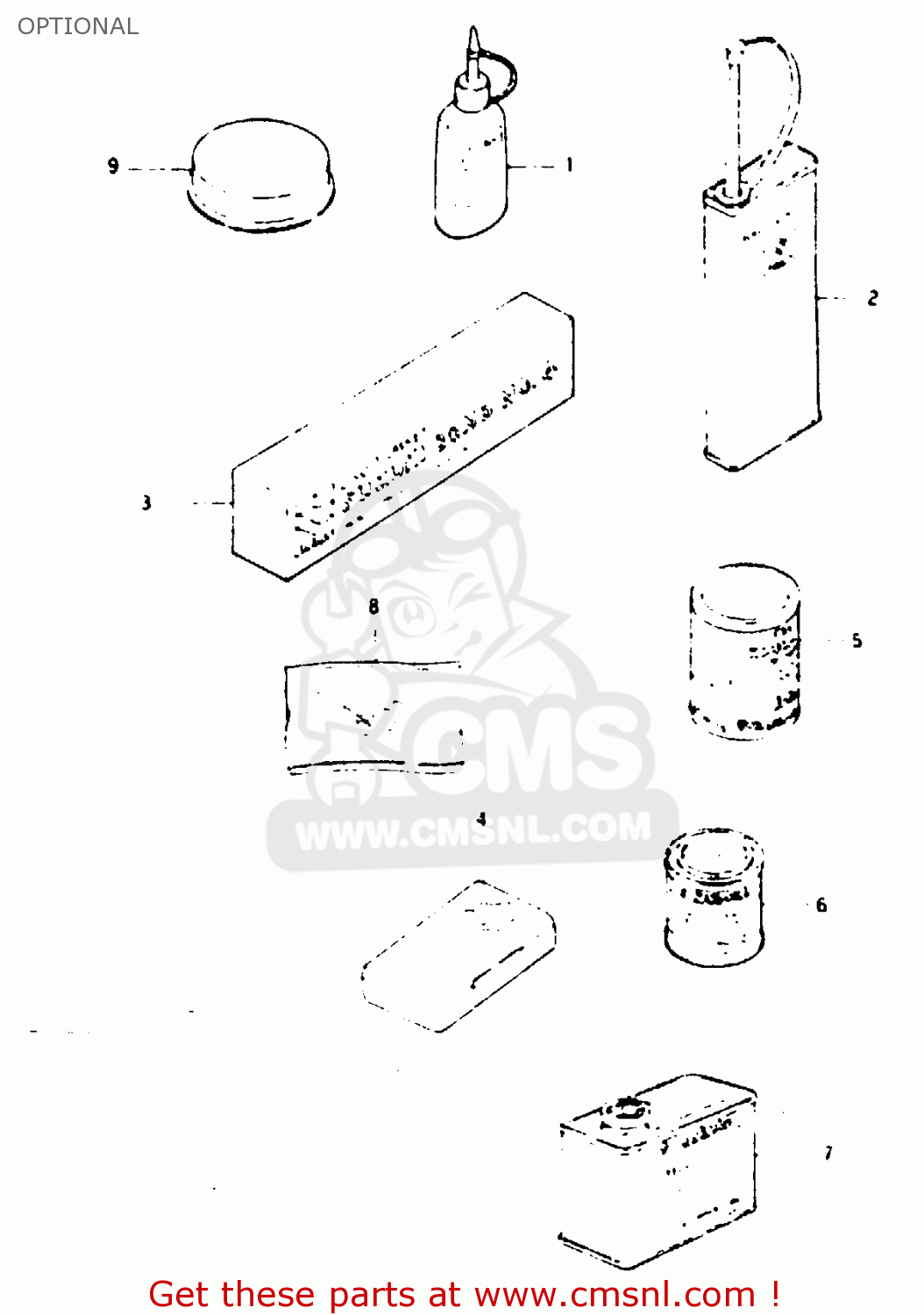

Optional diagram TS125X 1986 (G) (E01 E02 E04 E06 E15 E17 E18 E21 E24)

OPTIONAL TS125X 1986 (G) (E01 E02 E04 E06 E15 E17 E18 E21 E24)
OPTIONAL TS125X 1986 (G) (E01 E02 E04 E06 E15 E17 E18 E21 E24)
OPTIONAL TS125X 1986 (G) (E01 E02 E04 E06 E15 E17 E18 E21 E24)
prices are in EUR
ref
part #
description
quantity
1-1
9900032020
ref: 1-1
50G
THREAD LOCK(1333B RED 50G)
€ 29.00
1-2
9900032030
ref: 1-2
50G
THREAD LOCK NO.1303B PURPL 50G
€ 40.00
1-3
9900032050
ref: 1-3
50G
THREAD LOCK NO.1342
€ 20.00
1-4
9900032110
ref: 1-4
50G
THREAD LOCK NO
€ 112.50
1-5
9900032120
ref: 1-5
50G
THREAD LOCK SUPER (1324)
€ 123.50
1-6
9900032130
ref: 1-6
50G
THREAD LOCK SUPER(1360)
9900032130
€ 29.00
2
9900032040
ref: 2
200G
THREAD LOCK NO.1401 CLEAR 200G
€ 92.50
3
9900031030
ref: 3
100G
BOND 1104
€ 92.50
4
0982600001
ref: 4
TUBE REPARING TOOL
€ 6.50
5
9900025030
ref: 5
150G
GREASE(C)EP2 LITHIUM 150G
9900025030
€ 8.00
6-1
9900010109019
ref: 6-1
90G
PAINT,BLACK
€ 16.00
6-2
9900010109291
ref: 6-2
90G
PAINT,BLACK
9900010109291
€ 9.00
6-3
9900010109163
ref: 6-3
90G
PAINT (PHLILINE YELLOW)
€ 19.50
6-4
990001010919T
ref: 6-4
90G
PAINT (MEDIUM GOLD)
€ 0.00
6-5
990001020914C
ref: 6-5
90G
PAINT (MARBLE CURRENT RED)
€ 0.00
6-6
990001010908Y
ref: 6-6
90G
PAINT (RACING BLUE)
€ 9.00
6-7
990001010519F
ref: 6-7
90G
PAINT (CHAMPION BLUE)
€ 0.00
6-8
990001010921C
ref: 6-8
90G
PAINT (SMOKE BLACK)
€ 0.00
6-9
990001010914L
ref: 6-9
90G
PAINT (SUPER WHITE)
€ 39.00
6-10
990001020913L
ref: 6-10
90G
PAINT BLIGHT S
990001020913L
€ 29.00
6-11
9900010209126
ref: 6-11
90G
PAINT (PEARL METALLIC)
€ 0.00
7-1
9900010105019
ref: 7-1
500G
PAINT (BLACK)
€ 9.00
7-2
9900010105291
ref: 7-2
500G
PAINT (BLACK SEMI-GLOSS)
€ 9.00
7-3
9900010105163
ref: 7-3
500G
PAINT (PHLILINE YELLOW)
€ 19.50
7-4
990001010519T
ref: 7-4
500G
PAINT (MEDIUM GOLD)
€ 0.00
7-5
990001020514L
ref: 7-5
500G
PAINT (MARBLE CURRENT RED)
€ 0.00
7-6
990001010508Y
ref: 7-6
500G
PAINT (RACING BLUE)
€ 0.00
7-7
990001010519F
ref: 7-7
500G
PAINT (CHAMPION BLUE)
€ 0.00
7-8
990001010521C
ref: 7-8
500G
PAINT (SMOKE BLACK)
€ 0.00
7-9
990001010514L
ref: 7-9
500G
PAINT (SUPER WHITE)
€ 0.00
7-10
990001020513L
ref: 7-10
500G
PAINT (BRIGHT SILVER METALLIC)
€ 0.00
7-11
9900010205126
ref: 7-11
500G
PAINT (PEARL METALLIC)
€ 0.00
8
9900024240
ref: 8
BARS LEAR
ANTI-LEAK ADDITIVE
€ 6.00
9
9900025110
ref: 9
20G
GREASE,PBC FOR BRK PAD 20G
9900025110
€ 44.00
