HEADLAMP (E2, E4, E15, E17, E18, E21, E22)

TS125X 1986 (G) (E01 E02 E04 E06 E15 E17 E18 E21 E24)

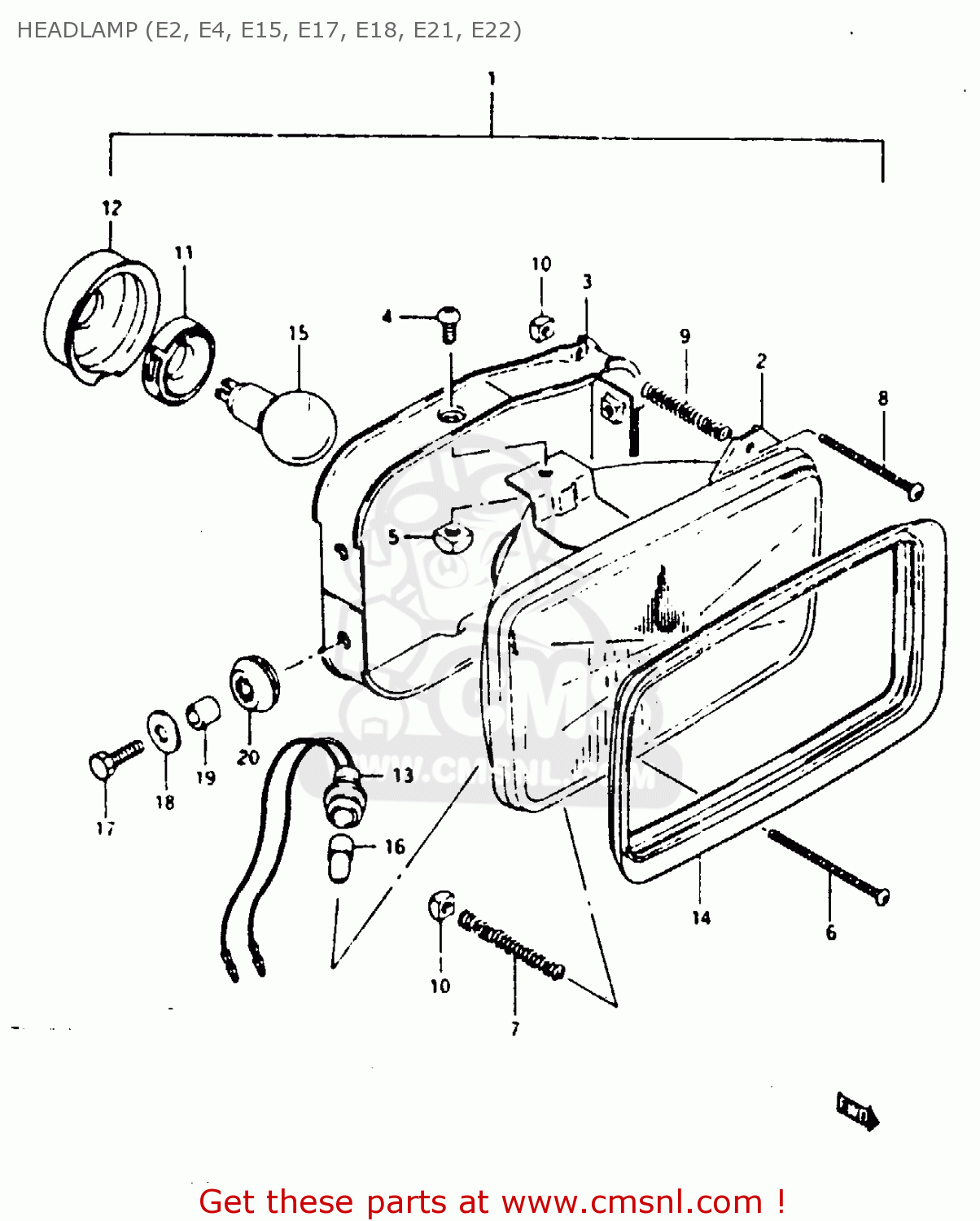

Headlamp (e2, e4, e15, e17, e18, e21, e22) diagram TS125X 1986 (G) (E01 E02 E04 E06 E15 E17 E18 E21 E24)

prices are in EUR

ref

part #

description

quantity

1-1

3510001A21999
ref: 1-1
E2

HEADLAMP ASSY

€ 159.50

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2-1

3512101A20
ref: 2-1
E2

UNIT

€ 94.50

2-2

NOTUSED
ref: 2-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

3514101A00
ref: 3

HOUSING

€ 24.50

0211205126
ref: 4

SCREW 5X12

€ 1.50

3513545900
ref: 5

NUT

€ 2.50

3515149200
ref: 6

SCREW,HEADLAMP ADJUST

€ 4.00

3515449200
ref: 7

SPRING

€ 3.50

3515131300
ref: 8

SCREW,HEADLAMP ADJUST

€ 3.00

3515431300
ref: 9

SPRING

€ 2.00

3513545600
ref: 10

NUT

€ 3.00

3513605300
ref: 11

HOLDER,BULB

€ 9.50

3517305300
ref: 12

COVER,SOCKET

€ 9.00

3611845900
ref: 13

SOCKET,PARKING

€ 13.00

3512901A01
ref: 14

SHADE

€ 20.00

15-1

0947112048
ref: 15-1
EXECUTED LOCALLY

BULB(12V45/40W)

€ 7.50

15-2

NOTUSED
ref: 15-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

0947112063
ref: 16

BULB(12V4W)

€ 6.00

0110706208
ref: 17

BOLT

€ 2.00

0916006027
ref: 18

WASHER (6.5X20X1.2)

€ 2.00

0918006030
ref: 19

SPACER (6.8X10X10)

€ 2.00

0932009018
ref: 20

CUSHION

€ 2.00

HEADLAMP (E2, E4, E15, E17, E18, E21, E22)

all assemblies
