RADIATOR

TS125X 1986 (G) (E01 E02 E04 E06 E15 E17 E18 E21 E24)

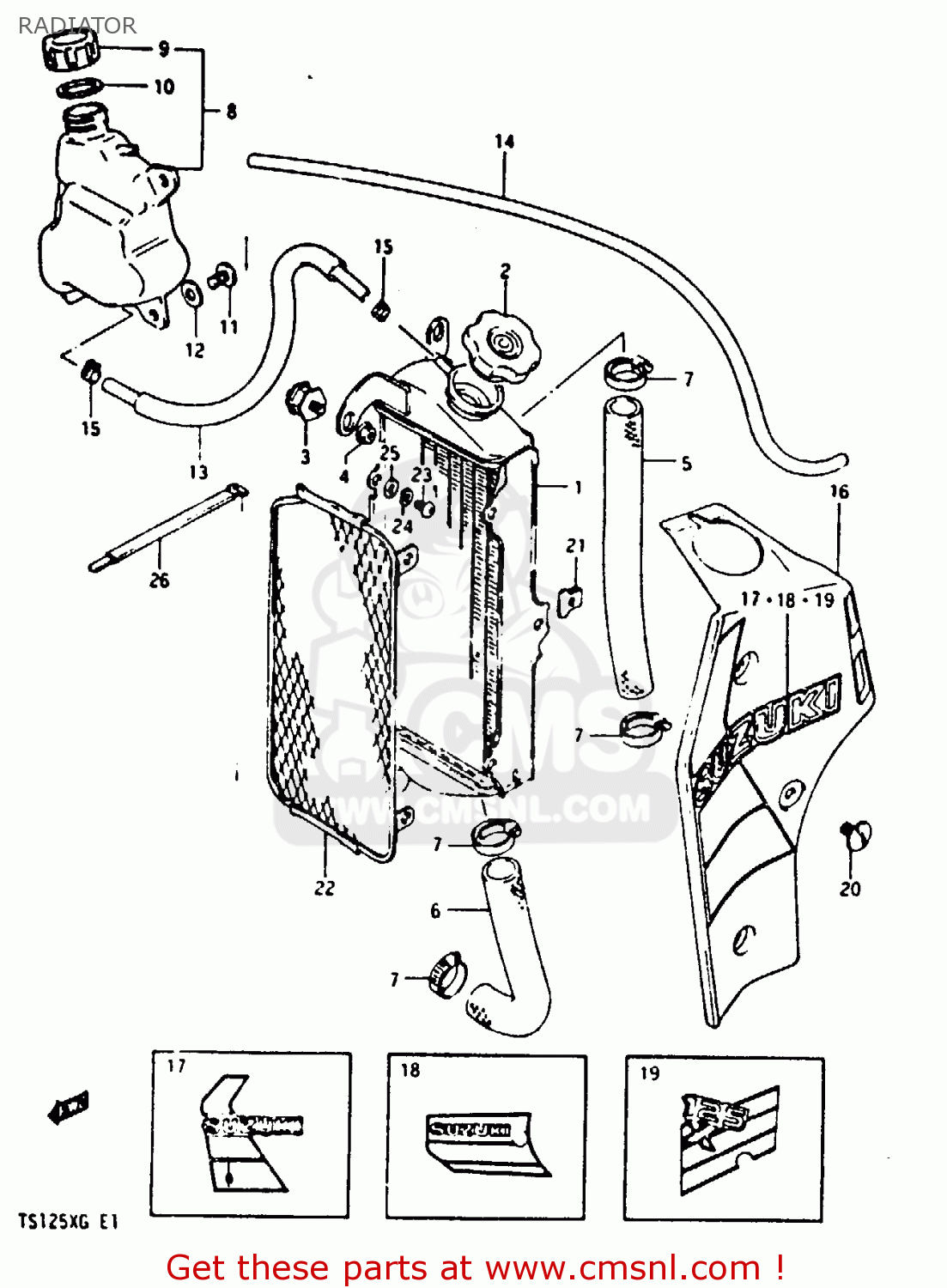

Radiator diagram TS125X 1986 (G) (E01 E02 E04 E06 E15 E17 E18 E21 E24)

RADIATOR TS125X 1986 (G) (E01 E02 E04 E06 E15 E17 E18 E21 E24)
RADIATOR TS125X 1986 (G) (E01 E02 E04 E06 E15 E17 E18 E21 E24)
RADIATOR TS125X 1986 (G) (E01 E02 E04 E06 E15 E17 E18 E21 E24)
prices are in EUR
ref
part #
description
quantity
1
1771001A00
ref: 1
RADIATOR
1771001A00
€ 433.50
2-1
1773004701
ref: 2-1
CAP,RADIATOR
€ 33.50
2-2
NOTUSED
ref: 2-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
3
1778814500
ref: 3
BOLT,RADIATOR CUSHION
1778814500
€ 12.00
4
0831616064
ref: 4
NUT 6MM
0831616064
€ 2.50
5
1785101A00
ref: 5
HOSE,RADIATOR INLET
1785101A00
€ 17.50
6
1785201A00
ref: 6
HOSE, OUTLET
1785201A00
€ 24.00
7
0940225501
ref: 7
CLAMP
0940225501
€ 8.50
8
1790001A00
ref: 8
TANK ASSY, RESERVE
1790001A00
€ 31.00
9
1784513700
ref: 9
CAP,RESERVOIR TANK
1784513700
€ 11.50
10
1784413700
ref: 10
GASKET,RESERVOIR TANK CAP (NAS)
1784413700
€ 2.50
11
0214206165
ref: 11
SCREW
0214206165
€ 2.50
12
0916006039
ref: 12
WASHER (6.5X18X1.6)
0916006039
€ 2.00
13
1798101A00
ref: 13
HOSE, RESERVE TANK INLET
€ 6.50
14
0934305280
ref: 14
HOSE
€ 19.50
15
0940108407
ref: 15
CLIP
€ 3.00
16-1
1776101A0008Y
ref: 16-1
COVER, RADIATOR (BLUE)
€ 26.50
16-2
1776001A0014C
ref: 16-2
COVER, RADIATOR (RED)
€ 26.50
16-3
1776001A0014L
ref: 16-3
COVER, RADIATOR (WHITE)
1776001A0014L
€ 26.50
16-4
1776001A00163
ref: 16-4
COVER, RADIATOR (YELLOW)
€ 26.50
16-5
1776001A0021C
ref: 16-5
COVER, RADIATOR (BLACK)
€ 26.50
17-1
6867001A107FA
ref: 17-1
MODEL E, FOR 08Y
TAPE SET
€ 0.00
17-2
6867001A107EZ
ref: 17-2
MODEL E, FOR 14C
TAPE SET
€ 20.00
17-3
6867001A107FB
ref: 17-3
MODEL E, FOR 14L
TAPE SET
€ 0.00
17-4
6867001A1082M
ref: 17-4
MODEL E, FOR 163
TAPE SET
€ 18.00
17-5
6867001A107EH
ref: 17-5
MODEL E, FOR 21C
TAPE SET
€ 17.00
18-1
6867001A207NY
ref: 18-1
MODEL F, FOR 08Y
TAPE SET
€ 0.00
18-2
6867001A207NW
ref: 18-2
MODEL F, FOR 14C
TAPE SET
€ 0.00
18-3
6867001A207NZ
ref: 18-3
MODEL F, FOR 14L
TAPE SET
€ 0.00
18-4
6867001A2095C
ref: 18-4
MODEL F, FOR 163
TAPE SET
6867001A2095C
€ 16.00
18-5
6867001A207EH
ref: 18-5
MODEL F, FOR 21C
TAPE SET
€ 0.00
19-1
6867001A308EA
ref: 19-1
MODEL G, FOR 08Y
TAPE SET
€ 0.00
19-2
6867001A308DZ
ref: 19-2
MODEL G, FOR 14C
TAPE SET
€ 0.00
19-3
6867001A307DH
ref: 19-3
MODEL G, FOR 14L
TAPE SET
€ 0.00
19-4
6867001A3074H
ref: 19-4
MODEL G, FOR 163
TAPE SET
€ 15.50
19-5
6867001A308DY
ref: 19-5
MODEL G, FOR 21C
TAPE SET
€ 0.00
20
0912506045
ref: 20
SCREW(6X14)
0912506045
€ 13.50
21
1778520930
ref: 21
PLATE,RADIATOR COVER FITING
1778520930
€ 4.50
22
1799001A00
ref: 22
BUMPER, RADIATOR
1799001A00
€ 33.50
23
0211206105
ref: 23
SCREW
€ 1.50
24
0832121064
ref: 24
WASHER,LOCK
0832121064
€ 2.00
25
0832221064
ref: 25
WASHER
0832221064
€ 2.00
26
0940718301
ref: 26
CLAMP
0940718301
€ 6.00
